For important information on the safe use of your device and battery, read "For your safety" and "Product Safety" info in the printed user guide, or at www.nokia.com/support before you take the device into use. To find out how to get started with your new device, read the printed user guide.

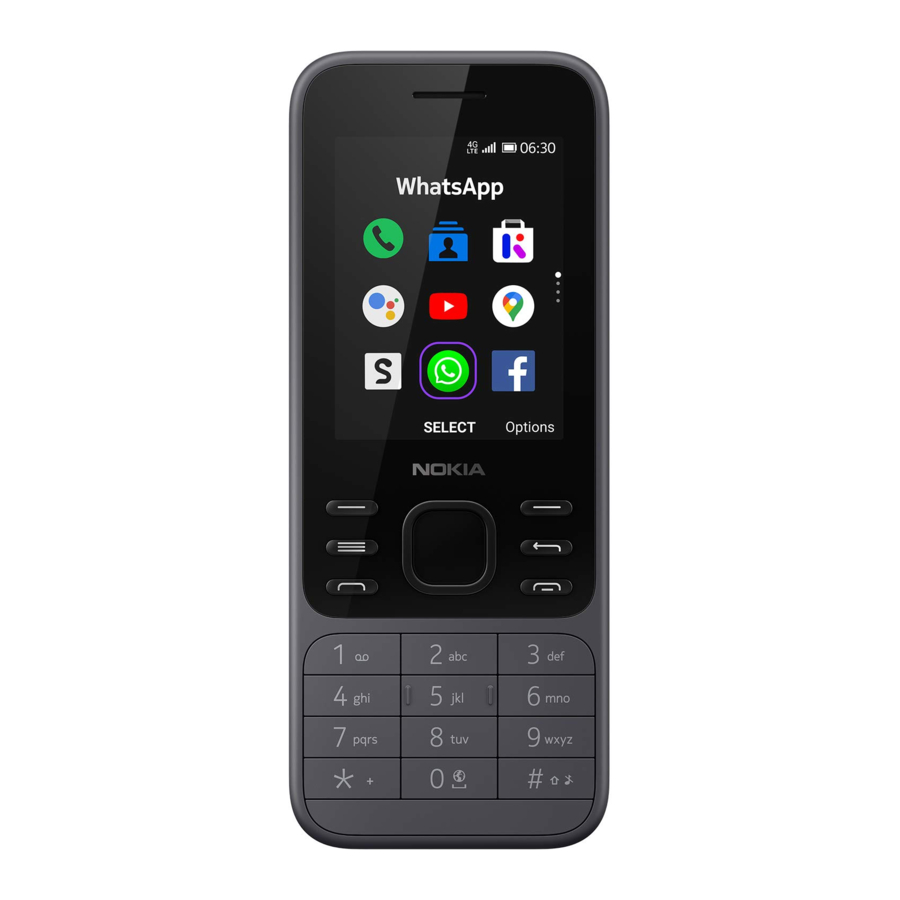

Explore the keys and parts of your new phone.
Your phone
This user guide applies to the following models: TA-1286, TA-1291, TA-1287, TA-1294, TA-1307, TA-1324.
The keys and parts of your phone are:
To lock the keys, press and hold and select Lock. To unlock the keys, select Unlock.
Avoid touching the antenna area while the antenna is in use. Contact with antennas affects the communication quality and may reduce battery life due to higher power level during operation.
Do not connect to products that create an output signal, as this may damage the device. Do not connect any voltage source to the audio connector. If you connect an external device or headset, other than those approved for use with this device, to the audio connector, pay special attention to volume levels. Parts of the device are magnetic. Metallic materials may be attracted to the device. Do not place credit cards or other magnetic storage media near the device, because info stored on them may be erased.
Some of the accessories mentioned in this user guide, such as charger, headset, or data cable, may be sold separately.
Learn how to insert the SIM card, memory card, and battery, and how to switch on your phone.
Nano-SIM
This device is designed to be used with a nano-SIM card (see figure) only. Use of incompatible SIM cards may damage the card or the device, and may corrupt data stored on the card.
MicroSD memory cards
Use only compatible memory cards approved for use with this device. Incompatible cards may damage the card and the device and corrupt data stored on the card.
Note: Switch the device off and disconnect the charger and any other device before removing any covers. Avoid touching electronic components while changing any covers. Always store and use the device with any covers attached.
Open the back cover
Insert the SIM card
Insert the second SIM card
Tip: To find out if your phone can use 2 SIM cards, see the label on the sales box. If there are 2 IMEI codes on the label, you have a dual-SIM phone.
Insert the memory card
Switch on your phone
Press and hold the power key until the phone vibrates.
Select which SIM card to use
Tip: To be able to distinguish your SIM cards, give them a descriptive name. In the SIM manager settings, select each SIM card, type in the name, and select Save.
Your battery has been partially charged at the factory, but you may need to recharge it before you can use your phone.
Charge the battery
Tip: You can use USB charging when a wall outlet is not available. Data can be transferred while charging the device. The efficiency of USB charging power varies significantly, and it may take a long time for charging to start and the device to start functioning. Make sure your computer is switched on.
Save power
To save power:
Open the apps list
Press the scroll key.
Open an app or select a feature
Scroll to the app or feature and select SELECT.
Go back to the previous view
Press the back key.
Go back to the home screen
Press the end key.
Turn the volume up or down
Trouble hearing your phone ringing in noisy environments, or calls too loud? You can change the volume to your liking.
To change the volume during a call, press the scroll key up or down.
To change the volume of your media apps, ringtones, alerts, and alarms, press the scroll key and select Settings. Scroll right to Personalization, and select Sound > Volume.
To change the volume when listening to the radio or music, select Options > Volume.
Writing with the keypad is easy and fun.
Write using the keypad
Press a key repeatedly until the letter is shown.
To type in a space, press 0.
To type in a special character or punctuation mark, press *.
To switch between character cases, press # repeatedly.
To type in a number, press and hold a number key.
The writing method may vary between applications.
Make the text bigger
Do you want to read bigger text on the display?
Make a call
Learn how to make a call with your new phone.
End a call
To end a call, press the end key.
If the phone display has gone to sleep during your phone call, press the power key, and then press the end key to end the call.
Answer a call
Press .
Add a contact
Save and organize your friends' phone numbers.
Select Options > Settings > Memory to select whether to save contacts to the phone memory or the SIM card.
Copy contacts
Copy contacts between your SIM card and the phone.
To copy contacts between your phone and SIM card, in the contacts list, select Options > Copy contacts, and select whether to copy contacts from the phone or SIM card.
To share a contact with a friend, scroll to the contact, select Options > Share, then select whether to share the contact using e-mail, messaging, or Bluetooth, for example.
Call a contact
You can call a contact directly from the contacts list.
Write and send messages
You can use your phone to read and reply to mail when you're on the go.
Add a mail account
When you use the E-Mail app for the first time, you are asked to set up your e-mail account.
Write e-mail
You can choose a new ringtone.
Change your ringtone
Choose a new wallpaper
You don't need a separate camera when your phone has all you need for capturing memories.
Take a photo
Capture the best moments with your phone camera.
Take photos with a timer
Want to have time to get in the shot too? Try out the timer.
View a photo you have taken
To view the photo right after taking it, select Preview. To view the photo later, on the home screen, press the scroll key and select Gallery.
You don't need a separate video camera - record video memories with your phone.
Record a video
Besides taking photos, you can also record videos with your phone.
Watch the recorded video
To view the video right after recording, select Preview. To watch the video later, on the home screen, press the scroll key and select Video.
Connect to the internet
Catch up on the news, and visit your favorite websites on the go.
Clear your browsing history
Connect your phone with Bluetooth to other devices.
Switch on Bluetooth
Switch on Wi-Fi
Use your phone as a Wi-Fi hotspot
Need a network connection on your laptop? You can use your phone as a Wi-Fi hotspot.
You can now, for example, switch Wi-Fi on in your laptop and connect it to the phone's Wi-Fi hotspot.
Listen to music
Tip: To set a song as ringtone, scroll right to Songs, scroll to the song you want, and select Options > Save as ringtone.
Search for radio stations
You need to connect a compatible headset to listen to the radio. The headset acts as an antenna. Troubleshooting tip: if the radio does not work, make sure that the headset is properly connected.
Press the scroll key and select FM Radio > TURN ON.
To search for available radio stations, select Stations > Options > Scan stations.
To save a radio station, select Stations > Options > Add to favorites.
To switch to a saved station, select Stations > Favorites and the station.
To adjust the volume, select Options > Volume and scroll up or down.
To turn off the radio, select TURN OFF.
Tip: To listen to a radio station using the phone's speakers, select Options > Switch to speaker. Keep the headset connected.
Watch your favorite videos wherever you are.
Play a video
To watch the video in full screen, select Full Screen.
To adjust the volume, select Options > Volume.
To share the video with a friend, select Options > Share, and select to share using e-mail, messaging, or Bluetooth, for example.
Tip: Not all video formats are supported.
Record a sound clip
Learn how to use the clock and timers to be on time.
Set an alarm
No clock around? Use your phone as an alarm clock.
If you often need an alarm at the same time, but don't want to set in on repeat, just scroll to the alarm and select TURN ON. The alarm sounds at the time you have specified.
Countdown timer
If you need an alarm but don't want to create one in the alarm clock, use the countdown timer. You can, for example, time something that's cooking in the kitchen.
Stopwatch
Need to remember an event? Add it to your calendar.
Add a calendar reminder
Learn how to add, subtract, multiply and divide with your phone calculator.
Make a calculation
Write a note
To share the note, select Options > Share and the sharing method.
Need to convert Celsius to Fahrenheit or centimeters to inches? Use the converter.
Convert measurements
Copy content created by you between your phone and computer.
Copy content between your phone and computer
Drag and drop items between your phone and computer.
Need to find those important files quickly? Open the File manager.
Find your files
To find your files quickly, press the scroll key and select File Manager. To find items on your phone, select Internal. To find items on your memory card, select SD Card.
When needed, you can check how much used and how much free memory you have on your phone.
Check the amount of used and free memory
You can edit the available security settings.
Check your apps' permissions
Manage your internet privacy settings
Read these simple guidelines. Not following them may be dangerous or against local laws and regulations. For further info, read the complete user guide.
SWITCH OFF IN RESTRICTED AREAS
Switch the device off when mobile device use is not allowed or when it may cause interference or danger, for example, in aircraft, in hospitals or near medical equipment, fuel, chemicals, or blasting areas. Obey all instructions in restricted areas.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first consideration while driving should be road safety.
INTERFERENCE
All wireless devices may be susceptible to interference, which could affect performance.
AUTHORIZED SERVICE
Only authorized personnel may install or repair this product.
BATTERIES, CHARGERS, AND OTHER ACCESSORIES
Use only batteries, chargers, and other accessories approved by HMD Global Oy for use with this device. Do not connect incompatible products.
KEEP YOUR DEVICE DRY
If your device is water-resistant, see its IP rating in the device's technical specifications for more detailed guidance.
PROTECT YOUR HEARING
To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use.
Using some features and services, or downloading content, including free items, require a network connection. This may cause the transfer of large amounts of data, which may result in data costs. You may also need to subscribe to some features.
Connections in all conditions cannot be guaranteed. Never rely solely on any wireless phone for essential communications like medical emergencies.
Before making the call:
You may also need to do the following:
Handle your device, battery, charger and accessories with care. The following suggestions help you keep your device operational.
During extended operation, the device may feel warm. In most cases, this is normal. To avoid getting too warm, the device may automatically slow down, close apps, switch off charging, and if necessary, switch itself off. If the device is not working properly, take it to the nearest authorized service facility.
Battery and charger safety info
To unplug a charger or an accessory, hold and pull the plug, not the cord.
When your charger is not in use, unplug it. If left unused, a fully charged battery will lose its charge over time.
Always keep the battery between 59°F and 77°F (15°C and 25°C) for optimal performance. Extreme temperatures reduce the capacity and lifetime of the battery. A device with a hot or cold battery may not work temporarily. Accidental short-circuiting can happen when a metallic object touches the metal strips on the battery. This may damage the battery or the other object.
Do not dispose of batteries in a fire as they may explode. Obey local regulations. Recycle when possible. Do not dispose as household waste.
Do not dismantle, cut, crush, bend, puncture, or otherwise damage the battery in any way. If a battery leaks, do not let liquid touch skin or eyes. If this happens, immediately flush the affected areas with water, or seek medical help. Do not modify, attempt to insert foreign objects into the battery, or immerse or expose it to water or other liquids. Batteries may explode if damaged.
Use the battery and charger for their intended purposes only. Improper use, or use of unapproved or incompatible batteries or chargers may present a risk of fire, explosion, or other hazard, and may invalidate any approval or warranty. If you believe the battery or charger is damaged, take it to a service centre or your phone dealer before continuing to use it. Never use a damaged battery or charger. Only use the charger indoors. Do not charge your device during a lightning storm.
Your device and its accessories are not toys. They may contain small parts. Keep them out of the reach of small children.
Operation of radio transmitting equipment, including wireless phones, may interfere with inadequately shielded medical devices' function. Consult a physician or the medical device's manufacturer to determine if it is adequately shielded from external radio energy.
To avoid potential interference, manufacturers of implanted medical devices (such as cardiac pacemakers, insulin pumps, and neurostimulators) recommend a minimum separation of 15.3 centimeters (6 inches) between a wireless device and the medical device. Persons who have such devices should:
If you have any questions about using your wireless device with an implanted medical device, consult your health care provider.
When you use the headset, your ability to hear outside sounds may be affected. Do not use the headset where it can endanger your safety.
Some wireless devices may interfere with some hearing aids.
Your device may be exposed to viruses and other harmful content. Take the following precautions:
Radio signals may affect improperly installed or inadequately shielded electronic systems in vehicles. For more info, check with the manufacturer of your vehicle or its equipment. Only authorized personnel should install the device in a vehicle. Faulty installation may be dangerous and invalidate your warranty. Check regularly that all wireless device equipment in your vehicle is mounted and operating properly. Do not store or carry flammable or explosive materials in the same compartment as the device, its parts, or accessories. Do not place your device or accessories in the air bag deployment area.
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
