Dishwasher / User Manual

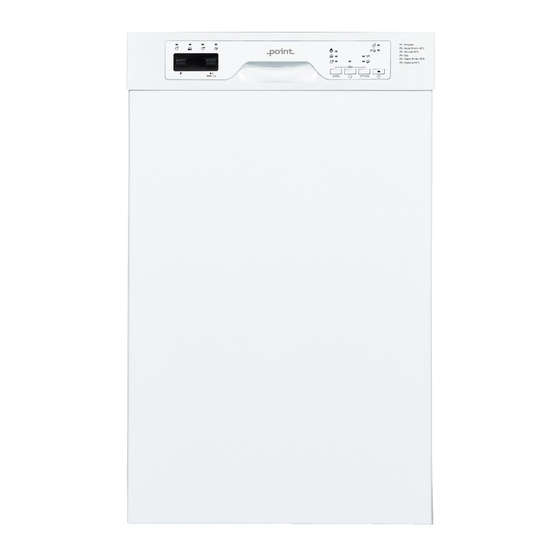

PD4515N

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PD4515N and is the answer not in the manual?

Questions and answers

Related Manuals for point PD4515N

Summary of Contents for point PD4515N

  • Page 1 Dishwasher / User Manual PD4515N...
  • Page 2 Thank you for choosing this product. This User Manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference.

  • Page 3: Table Of Contents

    CONTENTS 1.SAFETY INSTRUCTIONS ....................1 1.1. General Safety Warnings ....................1 1.2. Installation Warnings .....................2 1.3. During Use........................3 2.INSTALLATION ......................... 6 2.1. Machine Positioning .....................6 2.2. Water Connection ......................6 2.3. Water Inlet Hose ......................6 2.4. Electrical Connection ....................7 3.TECHNICAL SPECIFICATIONS ..................9 3.1.
  • Page 4 8.CLEANING AND MAINTENANCE ................. 19 8.1. Filters ........................... 19 8.2. Spray Arms ........................19 8.3. Drain Pump ........................20 9.TROUBLESHOOTING ....................21 10.PRACTICAL INFORMATION ..................25...

  • Page 5: Safety Instructions

    1. SAFETY INSTRUCTIONS 1. General Safety Warnings • Read these instructions carefully before using your appliance and keep this manual for future reference. Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.

  • Page 6: Installation Warnings

    2. Installation Warnings • Choose a suitable and safe place to install your machine. • Only original spare parts should be used with the machine. Unplug the machine before installation. Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void.

  • Page 7: During Use

    pressure exceeds 1 MPa, a pressure relief valve must be fitted between the connection. 3. During Usage • This machine is for domestic use only; do not use • it for other purposes. Commercial use will void the guarantee. Do not stand, sit or place loads on the open door of the dishwasher.
  • Page 8 the door for one minute after it has opened. For effective drying, keep the door open for 30 minutes after a programme has ended. Do not stand in front of the door after the auto-open signal sounds. In the case of a malfunction, repair should only be performed by an authorised service company, otherwise the warranty will be void.
  • Page 9 The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help...

  • Page 10: Installation

    2. INSTALLATION WARNING: Use the new water inlet 2.1. Machine positioning hose supplied with your machine, do not use an old machine’s hose. When positioning the machine, place it in an area where dishes can be easily loaded WARNING: Run water through the and unloaded.

  • Page 11: Electrical Connection

    2.4. Drain Hose 2.5. Electrical connection WARNING: Your machine is set to operate at 220-240 V. If the mains voltage supply to your machine is 110 V, connect a transformer of 110/220 V and 3000 W between the electrical connection. Connect the product to a grounded outlet protected by a fuse complying with the values in the...

  • Page 12: Fitting The Machine Undercounter

    2.5 Fitting the Machine Undercounter 700X75 OPS.(+50)H=870-920 mm EN - 8...
  • Page 13 EN - 9...
  • Page 14 The following options are available. ops.(+50) H= 870-920 mm Option 1: Attach the furniture kickplate. Option 2: Attach the adjustable plinth group. Follow the instructions supplied with the adjustable plint group. EN - 10...

  • Page 15: Technical Specifications

    3. TECHNICAL SPECIFICATIONS 3.2. Technical specifications 10 place Capacity settings Dimensions � ;;___ - � 2 4----- � 3 (mm) 820-870 (mm) Height 870-920(mm) Width 448(mm) Depth 570(mm) Net weight 33,900 kg Operating 220-240V voltage / 50 Hz, frequency Total current 10(A) 3.1.

  • Page 16: Before Using The Appliance

    4.3. Fill the salt (IF AVAILABLE) 4. BEFORE USING To add softener salt, open the salt THE APPLIANCE compartment cap by turning it counter clockwise. (1) (2) At first use, fill the 4.1. Preparing your compartment with 1 kg salt and water (3) until dishwasher for first use it is almost overflowing.

  • Page 17: Test Strip

    4.4. Test Strip Run water through Keep the strip in Set the hardness level of Shake the strip. Wait (1min.) the tap (1min.) the water (1sec) your machine. second munite munite NOTE: The factory hardness level setting is “3”. If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices.

  • Page 18: Filling The Detergent

    Continued use of too much detergent may set too height, you can see bluish layers on cause machine damage. glass and dishes. Using little detergent can result in poor cleaning and you can see whitish 4.12. Filling the rinse-aid and setting streaksin hard water.

  • Page 19: Loading Your Dishwasher

    5. LOADING YOUR WARNING: To avoid any possible DISHWASHER injuries, place long-handle and sharp- pointed knives with their sharp points facing down or horizontally on the baskets. For best results, follow these loading guidelines. Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings.
  • Page 20 Dish rack Upper Basket There are dish racks on the upper basket of your Height adjustment machine. You can use these dish racks in open or closed position. When they are in open position Turn the Rail Stop Clips, at the ends of the you can place your cups on them;...

  • Page 21: Alternative Basket Loads

    5.2. Alternative Basket Loads Incorrect Loads Lower Basket Incorrect loading can cause poor washing and drying performance. Please follow the manufacturer's recommendations for a good performans result. Top Basket Incorrect Loads Important Note for Test Laboratories For detailed information required for tests according to EN normatives and a softcopy of the manual, please send the model name and serial number to the following...

  • Page 22: Programme Table

    6. PROGRAMME TABLE Quick 30’ Delicate Super 50’ Intensive Program Prewash Auto Name: 65°C 40°C 40°C 65°C Standard Suitable program for Suitable Suitable Suitable normally normally Suitable to rinse for lightly for lightly soiled daily Auto program soiled for heavily Type of Soil: dishes that soiled...

  • Page 23: The Control Panel

    7. THE CONTROL PANEL If you select the extra drying (8) function, the extra drying light will become on and thus, drying duration of the selected program will extend, making your dishes drier. Additionally, Hygiene and Drying functions cannot be selected at the same time since they are incompatible with each other 1.1.

  • Page 24: Changing A Programme

    7.3. Cancelling a programme 7.2. Changing a programme When you want to change the program If you would like to cancel a program while while a washing program is running on. washing is continuing. Press and hold the Start/Pause button Press Start/Pause button.

  • Page 25: Cleaning And Maintenance

    8. CLEANING AND To remove and clean the filter combination, turn it counter clockwise and remove it by MAINTENANCE lifting it upwards (1).Pull the coarse filter out of the micro filter (2).Then pull and remove Cleaning your dishwasher is important to the metal filter (3).Rinse the filter with lots of maintain the machine’s service life water until it is free of residue.

  • Page 26: Drain Pump

    8.3 Drain Pump Large food residues or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter. Warning Risk of cuts! When cleaning the waste water pump, ensure that you do not injure yourself on pieces of broken glass or pointed implements.

  • Page 27: Troubleshooting

    9. TROUBLESHOOTING FAULT POSSIBLE CAUSE TROUBLESHOOTING Your Dishwasher is not plugged in. Plug your Dishwasher in. Switch your Dishwasher on by pressing the Your Dishwasher is not switched on. On/Off button. Fuse blown. Check your indoor fuses. The programme does not start.
  • Page 28 FAULT POSSIBLE CAUSE TROUBLESHOOTING Use the correct amount of detergent, as Not enough detergent used. instructed in the programme table. Rinse aid dosage and/or water Increase rinse aid and/or water softener softener setting set too low. level. Whitish stains remains on dishes.
  • Page 29 AUTOMATIC FAULT WARNINGS AND WHAT TO DO TROUBLE POSSIBLE FAULT WHAT TO DO CODE Make sure the water inlet tap is open and water is flowing. Separate the inlet hose from the tap and clean the filter of Water inlet system failure the hose.
  • Page 30 lmporteret og markedsf0res udelukkende af: Power lnternational AS, PO Box 43, N-7 4 83 Hagan Power Norge: https://www.power.no/kundeservice/ T: 815 48100 Power Oanmark: https:/ /www.power.dk/kundeservice/ T: 70 33 80 80 Punkt 1 Dan mark: https:/ /www.punktl.dk/kundeservice/ T: 70 7017 07 Expert Finland: https:/ /www.expert.fi/tuki/asiakaspalvelu/ T: 020 7100 67 0...
  • Page 31 www.power.no kundeservice@power.no 52498821...
