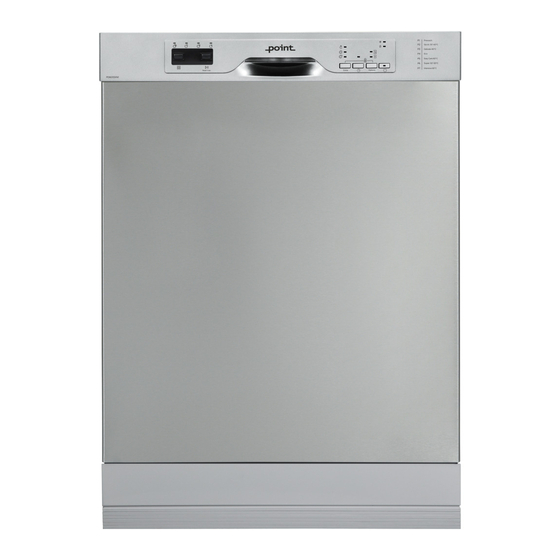

  • Page 1 EN Dishwasher / User Manual PD6013N1 / PD6013XN1...
  • Page 2 Thank you for choosing this product. This User Manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference.

  • Page 3: Table Of Contents

    CONTENTS 1.SAFETY INSTRUCTIONS ....................1 1.1. General Safety Warnings ....................1 1.2. Installation Warnings .....................2 1.3. During Use........................3 2.INSTALLATION ......................... 6 2.1. Machine Positioning .....................6 2.2. Water Connection ......................6 2.3. Water Inlet Hose ......................6 2.4. Electrical Connection ....................7 3.TECHNICAL SPECIFICATIONS ..................11 3.1.
  • Page 4 8.CLEANING AND MAINTENANCE .................23 8.1. Filters ...........................23 8.2. Spray Arms ........................23 8.3. Drain Pump ........................24 9.TROUBLESHOOTING ....................25...

  • Page 5: Safety Instructions

    1. SAFETY INSTRUCTIONS 1. General Safety Warnings • Read these instructions carefully before using your appliance and keep this manual for future reference. Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.

  • Page 6: Installation Warnings

    2. Installation Warnings • Choose a suitable and safe place to install your machine. • Only original spare parts should be used with the machine. Unplug the machine before installation. Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void.

  • Page 7: During Use

    pressure exceeds 1 MPa, a pressure relief valve must be fitted between the connection. 3. During Usage • This machine is for domestic use only; do not use • it for other purposes. Commercial use will void the guarantee. Do not stand, sit or place loads on the open door of the dishwasher.
  • Page 8 the door for one minute after it has opened. For effective drying, keep the door open for 30 minutes after a programme has ended. Do not stand in front of the door after the auto-open signal sounds. In the case of a malfunction, repair should only be performed by an authorised service company, otherwise the warranty will be void.
  • Page 9 The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help...

  • Page 10: Installation

    2. INSTALLATION WARNING: Use the new water inlet 2.1. Machine positioning hose supplied with your machine, do not use an old machine’s hose. When positioning the machine, place it in an area where dishes can be easily loaded WARNING: Run water through the and unloaded.

  • Page 11: Electrical Connection

    2.5. Electrical connection WARNING: Your machine is set to operate at 220-240 V. If the mains voltage supply to your machine is 110 V, connect a transformer of 110/220 V and 3000 W between the electrical connection. Connect the product to a grounded outlet protected by a fuse complying with the values in the "Technical Specifications"...
  • Page 12 Fitting the machine undercounter 700X75 OPS.(+50)H=870-920 mm EN -8...
  • Page 13 Adjust the machine’s feet. EN -9...
  • Page 14 Option 2 :To put the furtniture kickplate. Option 3 :To put the adjustable plint group. Follow the instructions is given with adjustable plint group. EN -10...

  • Page 15: Technical Specifications

    3. TECHNICAL SPECIFICATIONS 3.2. Technical specifications 12 place Capacity settings Dimensions (mm) 820-870 (mm) Height 870 mm-920mm Width 598(mm) Depth 570(mm) Net weight 46 kg Operating 220-240V voltage / 50 Hz, frequency Total current 10(A) 3.1. General appearance 1. Upper basket with racks Total power 2.

  • Page 16: Before Using The Appliance

    4. BEFORE USING THE APPLIANCE 4.1. Preparing your dishwasher for first use • Make sure the electricity and supply water specifications match the values indicated in the installation instructions for the machine. • Remove all packaging material inside the machine. •...

  • Page 17: Test Strip

    4.4 Test Strip Run water Keep the Shake the Wait Set the hardness level of through the strip in the strip. (1min.) your machine. tap (1min.) water (1sec) second munite munite NOTE: The level is set to 3 as default. If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices.

  • Page 18: Filling The Detergent

    Add the proper detergent for the selected 4.11 Rinse-aid usage program to ensure the best performance. The rinse aid helps to dry the dishes without The amount of detergent needed depends streaks and stains. Rinse-aid is required for on the cycle, load size, and soil level of stain-free utensils and clear glasses.
  • Page 19 Level Brightener Dose Indicator Rinse-aid not r1 is shown on the dispensed display. 1 dose is r2 is shown on the dispensed display. 2 doses are r3 is shown on the dispensed display. 3 doses are r4 is shown on the dispensed display.

  • Page 20: Loading Your Dishwasher

    5. LOADING YOUR WARNING: To avoid any possible DISHWASHER injuries, place long-handle and sharp- pointed knives with their sharp points facing down or horizontally on the baskets. For best results, follow these loading guidelines. Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings.
  • Page 21 Upper Basket Height Adjustable Rack (peg type) Height adjustment The height adjustable racks enable glasses and cups to be placed on or under the Turn the Rail Stop Clips, at the ends of the racks. The racks can be adjusted to 2 rails, to the sides to open them (as shown in different heights.

  • Page 22: Alternative Basket Loads

    5.2. Alternative basket loads Unsuitable items for dishwashing Lower basket • Cigarette ashes, candle leftovers, polish, paint, chemical substances, iron- alloy materials. • Forks, spoons and knives with wooden, bone, ivory or nacrecoated handles; glued items, items soiled with abrasive, acidic or base chemicals.

  • Page 23: Programme Table

    EN - 19...
  • Page 24 • The program duration may change according to the amount of dishes, the water temperature, the ambient temperature and selected additional functions. • Values given for programmes other than the eco programme are indicative only • If your model has turbidity sensor, it has Auto program instead of Intensive program. •...

  • Page 25: The Control Panel

    7. THE CONTROL PANEL If you select the extra rinsing function, the extra rinsing light will switch on and addi- tional rinses will be added to the selected program, making your dishes cleaner and shinier. If you select the extra drying function, the ex- tra drying light will switch on and the drying duration of the selected program will extend, making your dishes drier.

  • Page 26: Changing A Programme

    7.1. Changing the Program 7.2. Cancelling the Program When you want to cancel the program while a washing When you want to change the program cycle is in progress. whilst a wash cycle is in progress. Press and hold the Start/Pause button for 3 seconds.

  • Page 27: Cleaning And Maintenance

    8. CLEANING AND To remove and clean the filter combination, turn it counter clockwise and remove it by MAINTENANCE lifting it upwards (1).Pull the coarse filter out of the micro filter (2).Then pull and remove Cleaning your dishwasher is important to the metal filter (3).Rinse the filter with lots of maintain the machine’s service life water until it is free of residue.

  • Page 28: Drain Pump

    8.3 Drain Pump Large food residues or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter. Warning Risk of cuts! When cleaning the waste water pump, ensure that you do not injure yourself on pieces of broken glass or pointed implements.

  • Page 29: Troubleshooting

    9. TROUBLESHOOTING FAULT POSSIBLE CAUSE TROUBLESHOOTING Your Dishwasher is not plugged in. Plug your Dishwasher in. Switch your Dishwasher on by pressing the Your Dishwasher is not switched on. On/Off button. Fuse blown. Check your indoor fuses. The programme does not start.
  • Page 30 FAULT POSSIBLE CAUSE TROUBLESHOOTING Use the correct amount of detergent, as Not enough detergent used. instructed in the programme table. Rinse aid dosage and/or water Increase rinse aid and/or water softener softener setting set too low. level. Whitish stains remains on dishes.
  • Page 31 AUTOMATIC FAULT WARNINGS AND WHAT TO DO TROUBLE POSSIBLE FAULT WHAT TO DO CODE Make sure the water inlet tap is open and water is flowing. Separate the inlet hose from the tap and clean the filter of Water inlet system failure the hose.
  • Page 32 lmporteret og markedsf0res udelukkende af: Power lnternational AS, PO Box 43, N-7483 Hagan Power Norge: https://www.power.no/kundeservice/ T: 81548100 Expert Norge: https:/ /www.expert.no/kundeservice/ T: 815 48 700 Power Danmark: https:/ /www.power.dk/kundeservice/ T: 70 33 80 80 Punkt 1 Danmark: https://www.punkt1.dk/kundeservice/ T: 70 7017 07 Expert Finland: https:/ /www.expert.fi/tuki/asiakaspalvelu/ T: 020 7700 670...
  • Page 33 www.power.no 52353682 R60...
