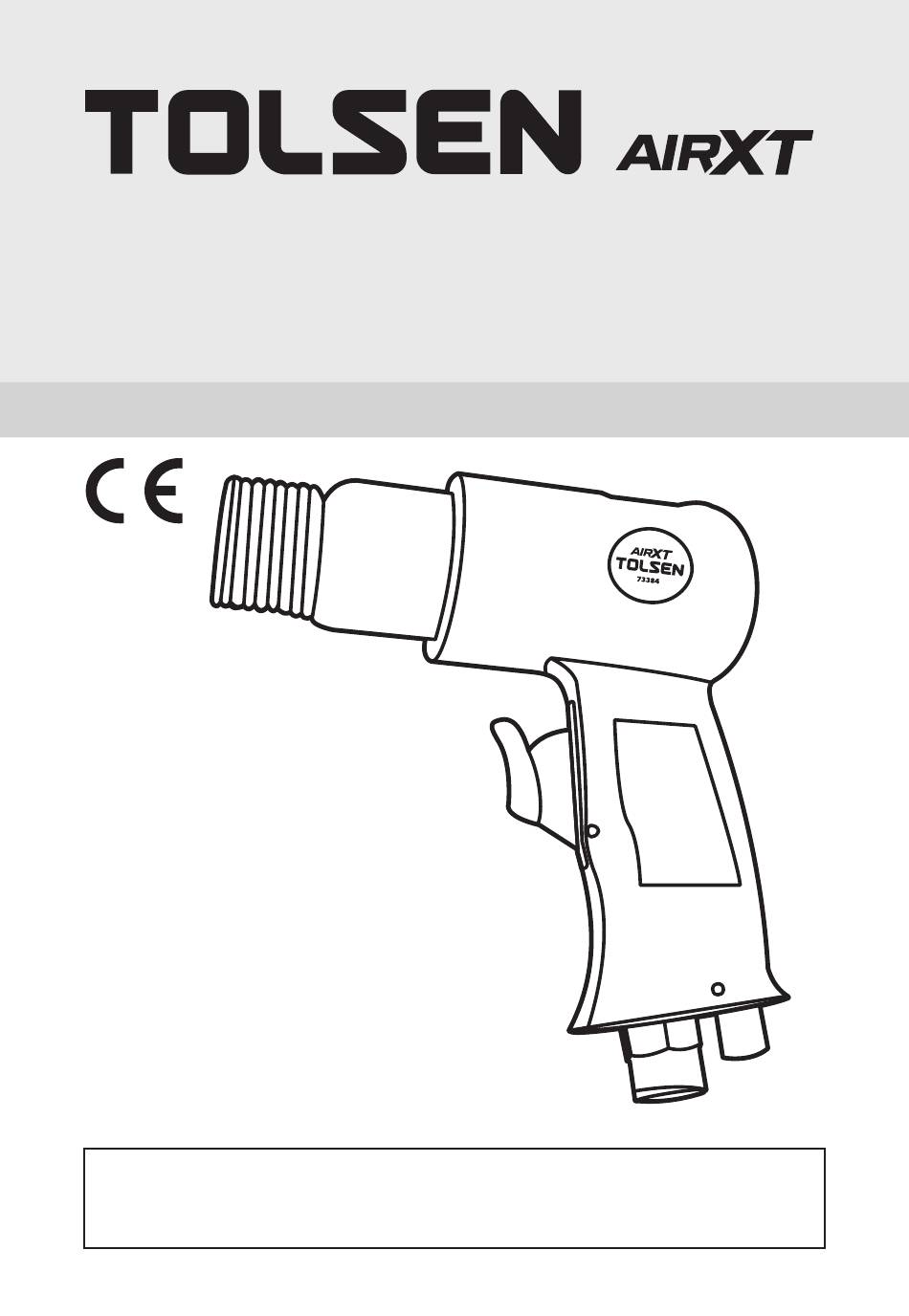

- Page 1 73384 AIR HAMMER (HEX) INSTRUCTION MANUAL SAVE THIS MANUAL ! You will need this manual for safety instructions, operating procedures and warranty. Put it and the original sales receipt in a safe dry place for future reference.
-
Page 2: Safety Information
SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. If you have any questions regarding the product, please contact the distributor or sales agent. WARNINGS IMPROPER OPERATION OR MAINTENANCE OF THIS PRODUCT COULD RESULT IN SERIOUS INJURY AND PROPERTY DAMAGE. - Page 3 RISK OF INJURY WARNINGS WHAT COULD HAPPEN HOW TO PREVENT IT A tool le unattended, or with the air hose attached, Remove air hose when tool is not in use and store tool can be activated by unauthorized persons leading to in secure location away from reach of children and their injury or injury to others.
- Page 4 RISK OF ELECTRIC SHOCK WARNINGS WHAT COULD HAPPEN HOW TO PREVENT IT Using air tools to attach electrical wiring can result Never use nail/staplers to attach electrical wiring in electrocution or death. while energized. This tool is not provided with an insulated gripping Avoid body contact with grounded surfaces such as surface.
- Page 5 SETTING UP AIR LINE FOR TOOL OPERATION Air Supply Make sure that the air compressor being used for the air tool operation supplies the correct output (CFM or L/min). Have the tool in the “off” position when connecting the tool to the air supply. Use normal 90 psi working pressure for best tool performance while running the tool.
-
Page 6: Specifications
SPECIFICATIONS & PACKAGING CONTENTS Specifications Item number 73384 Chisel shank (HEX) 0.40 IN. (10.20 mm) Bore diameter (ID) 3/4 IN. (19.05 mm) Stroke length 1-5/8 IN. (41 mm) Blow per minute 4,500 bpm Average air consumption 140L/min (5 SCFM) Working pressure 6.3 bar (90 psi) Air inlet 1/4 IN. -
Page 7: Care And Maintenance
4. Remove the air inlet protective cap from the air hammer. Mount a male plug. Connect air supply to tool. Set the working pressure at 90 PSI. (See Figure 3) 5. Press the trigger to start the tool. (See Figure 4) NOTE: This tool features a power regulator valve. -
Page 8: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Corrective Action Tool runs slowly 1. Grit or gum in tool. 1. Flush the tool with air-tool oil or gum solvent. or will not 2. No oil in tool. 2. Lubricate the tool according to the lubrication operate 3. - Page 9 TOLSEN TOOLS CO.,LIMITED www.tolsentools.com TOLSEN is a trademark or registered trademark of TOLSEN TOOLS. All rights reserved. MADE IN CHINA...
