Atlas 500 Pro AI Edge Server Quick Start Guide
(Model 3000)
Document Issue: 02 (2022-12-13) BOM: 31500DMD (2/2)
Huawei Technologies Co., Ltd.
Copyright © Huawei Technologies Co., Ltd. 2020 All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior written
consent of Huawei Technologies Co., Ltd.
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective holders.
The purchased products, services and features are stipulated by the contract made between Huawei and the
customer. All or part of the products, services and features described in this document may not be within the
purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and
recommendations in this document are provided "AS IS" without warranties, guarantees or representations of any
kind, either express or implied.
The information in this document is subject to change without notice. Every effort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute a warranty of any kind, e
Symbol Description
Indicates a hazard with a high level of risk which, if not avoided, will
result in death or serious injury.
Indicates a hazard with a medium level of risk which, if not avoided,
could result in death or serious injury.
Indicates a hazard with a low level of risk which, if not avoided, could
result in minor or moderate injury.
Indicates a potentially hazardous situation which, if not avoided, could
result in equipment damage, data loss, performance deterioration, or
unanticipated results.
NOTICE is used to address practices not related to personal injury.
Supplements the important information in the main text.
NOTE is used to address information not related to personal injury,
equipment damage, and environment deterioration.
1 Specifications
The Atlas 500 Pro AI edge server (model 3000), Atlas 500 Pro 3000 for short, is a 2U intelligent
edge server powered by a Huawei Kunpeng 920 and Ascend 310 processor. It provides
general-purpose high performance computing and flexible configurable AI computing power,
and is ideal for large campuses, electric power companies, shopping malls, and supermarkets.
1
.
Environmental specifications of the Atlas 500 Pro 3000:
Item
x press or implied.
Temperature
Relative humidity
(RH, non-condensing)
Maximum altitude
Specification
Short-term operating temperature: 0°C to 55°C (32°F to

131°F)
Long-term operating temperature: 5°C to 50°C (41°F to

122°F)
Short-term storage temperature: –40°C to +65°C (–40ºF to

+149ºF)
Long-term storage temperature: 21°C to 27°C (69.8°F to

80.6°F)
Maximum temperature change rate: 20°C/h (36°F/h)

Short-term operation indicates that the continuous operation
duration is not more than 96 hours and the total operation
duration per year is not more than 15 days (360 hours).
Operating humidity: 8% to 90%

Short-term storage humidity: 5% to 95%

Long-term storage humidity: 30% to 69%

Maximum humidity change rate: 20%/h

Short-term storage means that the continuous storage time
does not exceed 72 hours.
≤ 3050 m (10000 ft.)
HDDs cannot be used at altitudes higher than 3000 m (9842.52
ft).
Titanium PSUs are required at altitudes higher than 3000 m
(9842.4 ft).
ASHRAE 2015 compliant:

ASHRAE Class A1 and A2 compliant: For altitudes
above 900 m (2952.72 ft.), the highest operating
temperature decreases by 1°C (1.8°F) for every
increase of 300 m (984.24 ft.) in altitude.

ASHRAE Class A3 compliant: For altitudes above 900
m (2952.72 ft.), the highest operating temperature
decreases by 1°C (1.8°F) for every increase of 175 m
(574.15 ft.) in altitude.

ASHRAE Class A4 compliant: For altitudes above 900
m (2952.72 ft.), the highest operating temperature
decreases by 1°C (1.8°F) for every increase of 125 m
(410.10 ft.) in altitude.
2
2 Tools
ESD gloves Floating nut mounting bar Phillips screwdriver
3 Installation
Exercise caution when using tools.

If the installation position of the device is higher than the shoulders of the installation

personnel, use a vehicle such as a lift to facilitate installation. Prevent the equipment from
falling down and causing personal injury or damage to the equipment. When a ladder is
used, ensure that another person holds the ladder steady to prevent accidents.
Wear ESD gloves and remove conductive objects, such as jewelry and watches.

At least two persons are required to move the chassis. When moving a chassis, keep your

back straight and move smoothly to avoid any injury.
Do not use mounting ears as the holding points when moving the server. Otherwise, the

server may be damaged or slipped.

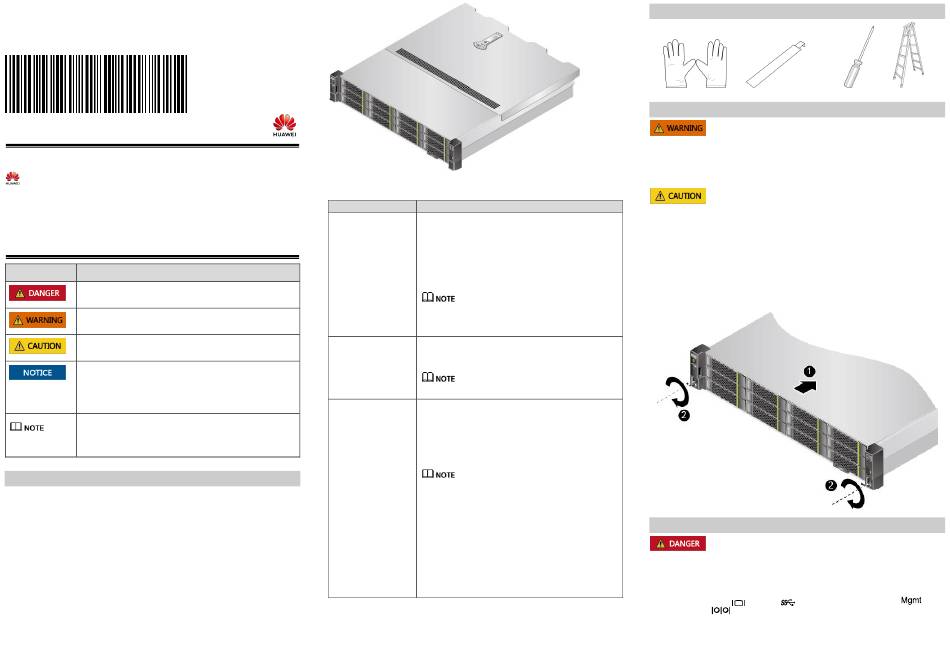

1. Hold the bottom of the server with both hands, lift the server from both sides, and place the
server on the guide rails.
2. Push the server into the cabinet. See (1).
3. Align the mounting ears on both sides of the server with the mounting bars and tighten the
captive screws on the mounting ears to secure the server. See (2).
4 Power-On
The Atlas 500 Pro 3000 does not provide a separate ground port. It uses power cables for
ground connection. The equipment is powered by high-voltage power sources. Direct or indirect
contact (especially through damp objects) with high-voltage power sources may result in
serious injury or death.
1. Connect the VGA cable , USB cable , management network port cable
serial port cable as required.
3
Ladder
, and
