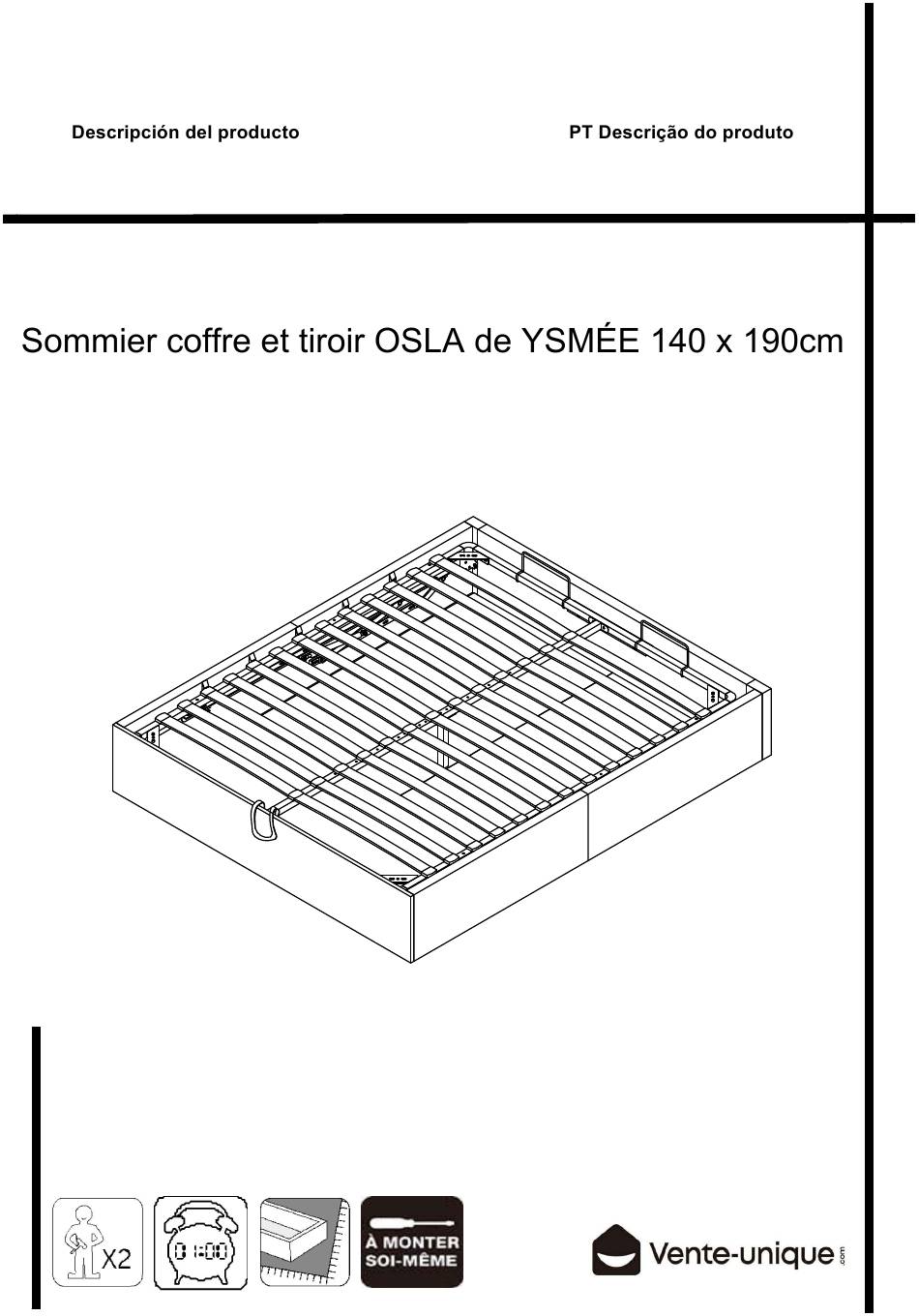

- Page 1 FR Description du produit IT Descrizione del prodotto EN Product description NL Productomschrijving DE Produktbeschreibung PL opis produktu...
- Page 2 / Meble domowe 3666471119954 GRIS / GREY 2. Regroupez et comptez la quincaillerie. Gardez votre notice de montage. 1. Identify the parts which make up your piece of furniture. 2. Gather the hardware parts and count them. 3. Have the necessary tools ready. 4.
- Page 3 1. Identificare le parti che compongono il mobile. 2. Raccogliere le parti e contarle. 3. Tenere pronti gli attrezzi necessari. 5. Montare il mobile, non forzare mai le parti da assemblare. Serrare le viti dopo che sono state usate per un certo periodo di tempo. 1.
- Page 4 IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY IMPORTANTE, CONSERVAR PARA FUTURAS CONSULTAS: LEER ATENTAMENTE IMPORTANTE, CONSERVARE PER RIFERIMENTO FUTURO, LEGGERE CON ATTENZIONE BELANGRIJK, BEWAARALS EVENTUEEL NASLAGWERK, ZORGVULDIG LEZEN IMPORTANTE, GUARDAR PARA FUTURA, LER ATENTAMENTE ZACHOWAJ NA PRZECZYTAJ...
- Page 5 TOOLS No. Tama o Cant Cnt No. No. Tama o Cant Cnt No. 1530 x 345 x 50mm 545 x 20mm 1900 x 345 x 30mm 1520 x 170mm 1400 x 530 x 50mm 1248 x 30 x 30mm 1400 x 224 x 18mm 1754 x 30 x 30mm 640 x 500 x 160mm 1804 x 30 x 30mm...
- Page 6 SPANNER (13mm) VMB 3017 BED SLAT SIDE FITTER BED SLAT CENTER FITTER M4 ALLEN KEY M5 ALLEN KEY...
- Page 7 M6 x 30mm M4 ALLEN KEY M8 x 40mm M5 ALLEN KEY...
- Page 8 M6 x 30mm M4 ALLEN KEY Loosen the pre-inserted bolt on the headboard using Allen key ball shape (14) M5 ALLEN KEY...
-
Page 9: Top View
TOP VIEW M6 x 30mm M4 ALLEN KEY BOTTOM VIEW... - Page 10 M6 x 40mm M6 FLAT WASHER M6 SPRING WASHER M4 ALLEN KEY M6 x 40mm M6 FLAT WASHER M6 SPRING WASHER M4 ALLEN KEY...
- Page 11 102 106 M4 ALLEN KEY VMB 3017 M6 x 40mm M6 FLAT WASHER M6 SPRING WASHER 102 105 M4 ALLEN KEY M6 x 40mm M6 FLAT WASHER M6 SPRING WASHER M8 x20mm...
- Page 12 DRAWER NEED TO FACE HEADBOARD BOTTOM VIEW TOP VIEW...
- Page 13 SPANNER (13mm) M8 x 45mm M8 HEX NUT M5 ALLEN KEY SPANNER (13mm) M5 ALLEN KEY M8 x 45mm M8 HEX NUT...
- Page 14 16.2 16.1 BED SLAT SIDE FITTER BED SLAT CENTER FITTER...
- Page 15 Attention : A person need to hold up the metal frame from footboard side,and the other person assemble the gas spring (Item 12). Loosen the pre-inserted Special Hex Nut on the Gas Spring metal (13) using Spanner 13mm (10). 17.2 17.1 SPANNER (13mm) 107 110...
- Page 16 18.2 18.1 SPANNER (13mm) M8 x 45mm M8 HEX NUT M5 ALLEN KEY...
- Page 17 Attention : 1. This queen size bed supports mattress weight 35 - 60kgs. 2. Place your mattress onto the bed frame BEFORE closing or this could results in damage to the bed (MATTRESS NOT INCLUDED) . 3. It is imperative that the bed is aligned squarely to prevent the frame from catching on and damaging the upholstered side rails...
- Page 18 Entretien et maintenance: Nettoyer avec du liquide vaisselle et essuyer avec un chiffon humide. Care and maintenance: Remove dust regularly with a dry cloth. Clean with dishwashing liquid and wipe with a damp cloth. Do not use the product if any part appears damaged, broken or missing. Be aware of the risk of open fire and other sources of strong heat, such as electric heaters, in the vicinity of the product.
- Page 19 VS-28-Aug-2024 CAFOM DISTRIBUTION Made in Malaysia Malaisie...
