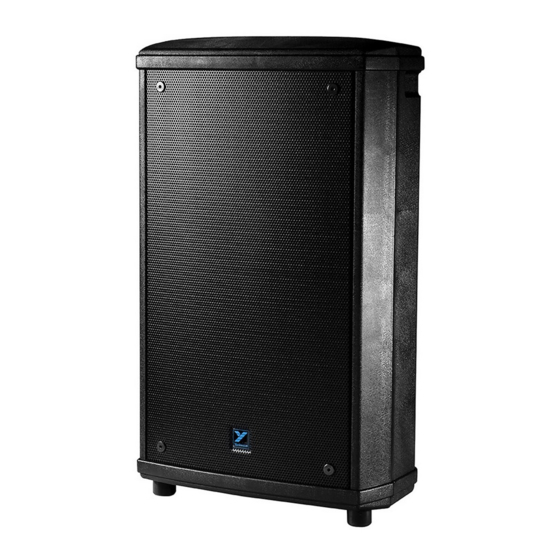

YORKVILLE NX35 Service Manual

Hide thumbs Also See for NX35:

Advertisement

Quick Links

Download this manual
SERVICE MANUAL
NX35
WEB ACCESS: http://www.yorkville.com
WORLD HEADQUARTERS
CANADA
U.S.A.
Yorkville Sound
Yorkville Sound Inc.
550 Granite Court
4625 Witmer Industrial Estate
Pickering, Ontario
Niagara Falls, New York
L1W-3Y8 CANADA
14305 USA
Voice: (905) 837-8481
Voice: (716) 297-2920
Fax: (905) 837-8746
Fax: (716) 297-3689
Quality and Innovation Since 1963
Printed in Canada
Manual-Service-nx35-00-1v3 • Jul 7, 2009
Manual-Service-nx35-00-1v2.pdf

Advertisement

loading
Need help?

Need help?

Do you have a question about the NX35 and is the answer not in the manual?

Questions and answers

Related Manuals for YORKVILLE NX35

Summary of Contents for YORKVILLE NX35

  • Page 1 SERVICE MANUAL NX35 WEB ACCESS: http://www.yorkville.com WORLD HEADQUARTERS CANADA U.S.A. Yorkville Sound Yorkville Sound Inc. 550 Granite Court 4625 Witmer Industrial Estate Pickering, Ontario Niagara Falls, New York L1W-3Y8 CANADA 14305 USA Voice: (905) 837-8481 Voice: (716) 297-2920 Fax: (905) 837-8746...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS INSTRUCTIONS PERTAINING TO A INSTRUCTIONS RELATIVES AU RISQUE RISK OF FIRE, ELECTRIC SHOCK, DE FEU, CHOC ÉLECTRIQUE, OU OR INJURY TO PERSONS BLESSURES AUX PERSONNES CAUTION: AVIS: AFIN DE REDUIRE LES RISQUE DE CHOC ELECTRIQUE, TO REDUCE THE RISK OF ELECTRIC SHOCK, DO N’ENLEVEZ PAS LE COUVERT (OU LE PANNEAU ARRIERE) NOT REMOVE COVER (OR BACK).
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS This lightning flash with arrowhead symbol, within The exclamation point within an equilatereal triangle is an equilateral triangle, is intended to alert the user to intended to alert the user to the presence of important the presence of uninsulated “dangerous voltage” operating and maintenance (servicing) instructions in within the product’s enclosure that may be of sufficient the literature accompanying the appliance.
  • Page 4 24 PIN BREAKAWAY LOCK .156 3668 4 CIR CHASSIS MOUNT HDR .156 3549 TRIFURCON TERM .156 8508T LARGE DISH ALUMINIZED DECAL 8240D LOGO YORKVILLE SMALL BLUE DOMED 3641 S.C BAYONET WIRE SOCKET TINNED 3647 12V 18W SC BAYONET #1141 BULB 8939...
  • Page 5 1/4in JCK SLEEVE 3924 #1141 Bulb #1141 Bulb 3647 3647 LITE1 LITE2 140V 3641 3641 Bayonet Bulb Socket Bayonet Bulb Socket 1/4in JCK SLEEVE 3924 18.W 2000UH 3716 300UH 3784 YS#7461 8R 40W 1" HORN J3:B 100V SPEAKON 4C 3628 100V 3628 SPEAKON 4C...
  • Page 6 score hole distance score hole distance score score score 3647 R T V 3903 #1141 Bulb PCB CONN 4 CIR BOTTOM .156 3641 3641 LITE1 LITE2 5942 100V R T V SOCKET R T V R T V 3716 R T V 18.W SOCKET UPSIDE DOWN 5013...
  • Page 7 score hole distance score hole distance score score score 3647 R T V 3903 #1141 Bulb PCB CONN 4 CIR BOTTOM .156 3641 3641 LITE1 LITE2 5942 100V R T V SOCKET R T V R T V 3716 18.W R T V SOCKET UPSIDE DOWN 5013...
  • Page 8 SEE LAYOUT DIAGRAM L1, L2 and L3 Leads bending for soldering. M1401 PCB_DATABASE_HISTORY Coil Lead MODEL(S):- NX35 DATE VER# DESCRIPTION OF CHANGE 12 NOV 2008 1.00 RELEASED FOR PRODUCTION Lead bent and leaned against Teardrop Pad Place RTV points to fix leads on L1, L2 and L3. USE RTV TO INSULATE LEADS FROM SHORTING TO IRON CORE.
  • Page 9 DOMED 3641 S.C BAYONET WIRE SOCKET TINNED 3647 12V 18W SC BAYONET #1141 BULB 8900 YORKVILLE WARRANTY CARD 2-YR UNLTD. 3538 24 PIN BREAKAWAY LOCK .156 3549 TRIFURCON TERM .156 3558 TERM HOUSING 4 CIR .156/RAMP 3668 4 CIR CHASSIS MOUNT HDR .156 3903 PCB CONN 4 CIR BOTTOM .156...
