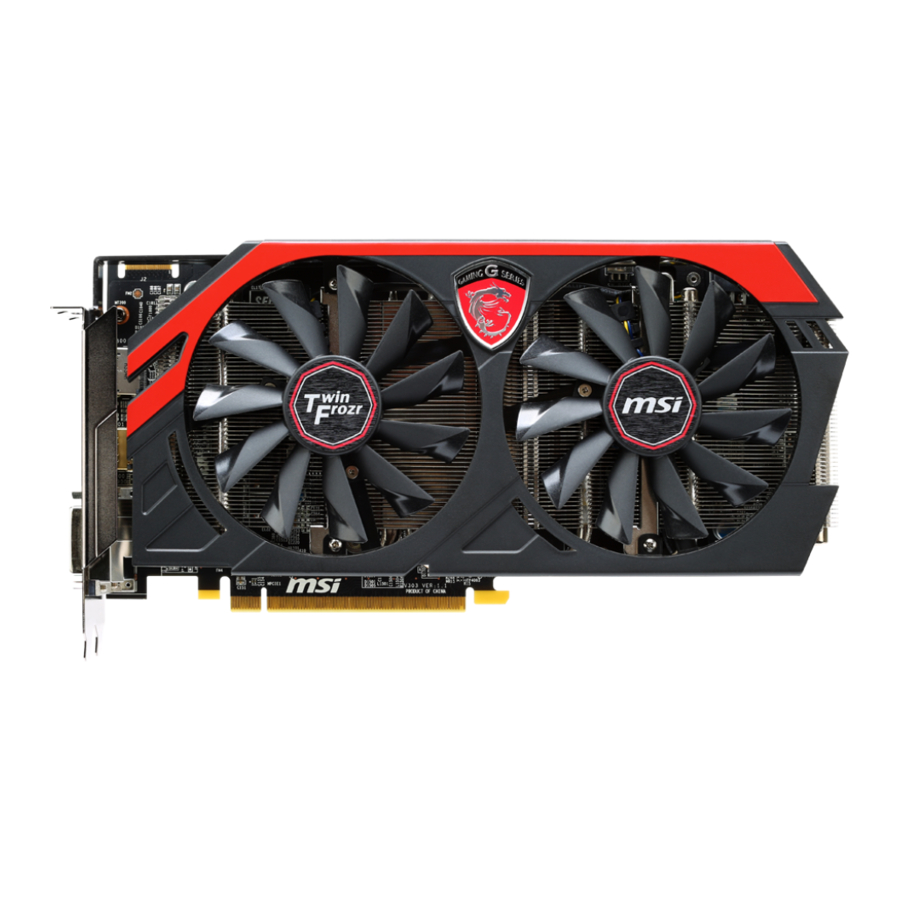

AMD Radeon R9 270X / R9 270 Graphics Manual

Getting Started

Before you begin installing your new AMD Radeon™ R9 270X/R9 270 graphics card, please make sure you have the proper system requirements and have completed the required preinstallation tasks as outlined in this chapter.

System Requirements

Requirements for Single-card Installations
Minimum requirements for installing a single AMD Radeon™ R9 270X/R9 270 graphics card:

• PCI Express® based PC with one ×16 lane graphics slot available on the motherboard.
• AMD Athlon™ or Intel Pentium® 4 CPU.
• Power supply requirements:
• AMD Radeon™ R9 270X—500 watt or better power supply with one 6-pin PCIe® power connector.
• AMD Radeon R9 270—500 watt or better power supply with two 6-pin PCIe power connectors.
  Certified power supplies are strongly recommended; for a list of certified power supplies, see ati.amd.com/certifiedpsu.
• 4 GB RAM (6 GB RAM or greater is recommended for AMD CrossFire™ technology).
• CD-ROM or DVD-ROM drive for installing software.
• Use of three or more displays with AMD Eyefinity technology requires DisplayPort-capable displays or AMD Eyefinity validated dongles. For more information, see Chapter Display Configuration.
• 64-bit operating system (highly recommended).
• Windows Vista® or Windows® 7 for full feature functionality.

Requirements for AMD CrossFire™ Technology
Minimum requirements for installing an additional graphics card for AMD CrossFire configuration:

• AMD CrossFire certified motherboard. For an up-to-date listing of AMD CrossFire certified motherboards, see support.amd.com/us/certified/Pages/certified-components.aspx.
• A second AMD Radeon™ R9 270X/R9 270 graphics card.
• One AMD CrossFire internal bridge interconnect per additional board (included).
• Power supply requirements:
• AMD Radeon R9 270X—600 watt or better power supply with two 6-pin power connectors.
• AMD Radeon R9 270—600 watt or better power supply with four 6-pin power connectors.
  For an up-to-date listing of certified power supplies, see support.amd.com/us/ certified/power-supplies/Pages/listing.aspx.
• Certified system case with good airflow and cooling (highly recommended).
  For more information, see Empty Cross-Reference jla1323455569707.xml.

Recording the Serial and Part Numbers

Write down the serial number and part number before installing the graphics card. The serial number and 102 part number on the graphics card are required for registration and free support. They are located on a sticker on the back of the card.
The emphasized numbers in bold are required for registration and free support.

Figure 1–1 Sample Serial and Part Numbers

Uninstalling the Old Driver (Windows® XP)

Follow these steps to uninstall the existing graphics card driver in preparation for installation of a new card.

1. With the current graphics card still in the computer, close all open applications.
2. On the Windows taskbar, click Start ▷ Control Panel and then double-click Add or Remove Programs.
3. Select the current graphics card driver and then click Change/Remove. Use the wizard that appears to remove the current display driver.
4. Turn off the system after the driver has been removed.
   Note: If the previously installed graphics card has any additional software installed, this software may also need to be removed before restarting the computer. For example, DVD Player or Multimedia applications.

Uninstalling the Old Driver (Windows Vista®/ Windows® 7)

Follow these steps to uninstall the existing graphics card driver in preparation for installation of a new card.

1. With the current graphics card still in the computer, close all open applications.
2. Click Start ▷ Control Panel.
3. Click Device Manager. If you are using the Category View of the Control Panel, do one of the following:
   ➭ For Windows Vista, click System and Maintenance and then Device Manager.
   ➭ For Windows 7, click System and Security and then Device Manager under the System group.
4. Expand Display Adapter and then right-click the driver for the graphics card you are replacing.
5. In the shortcut menu that appears, click Uninstall. The driver for the old graphics card is uninstalled.
6. Turn off the system.

Hardware Installation

This chapter details how to install the AMD Radeon™ R9 270X/R9 270 graphics card in your system.

Installation Overview

The installation of the card has slightly different procedures depending on whether you are replacing an existing card or installing a graphics card in a PC for the first time. This section briefly describes the high-level steps for both cases.

Replacing an Existing Card
If you are replacing an existing graphics card, you need to:

1. Start the computer and then uninstall the old graphics driver.
2. Turn off the computer and then remove the old card.
3. Install the new card and then connect the monitor.
4. Start the computer and then install the new drivers and software.
5. Restart the computer.

Installing the First Card for this PC
If this is the first graphics card for this PC, you need to:

1. With the computer off, install the new card and then connect the monitor.
2. Start the computer and then install the new drivers and software.
3. Restart the computer.

Installing the Graphics Card

1. Turn off the computer, monitor(s), and other peripheral devices.
2. Unplug the computer's power cord, and then disconnect all cables from the back of the computer.

   Wait approximately 20 seconds after unplugging the power cord before disconnecting a peripheral cable or removing a component from the motherboard to avoid possible damage to the motherboard.
3. Remove the cover to the computer's case.
   Note: If necessary, consult the computer manual for help in removing the cover.

   Static electricity can seriously damage computer components. Discharge your body's static electricity by touching the power supply or the metal surface of the computer chassis before you touch any components inside the computer's case to avoid damaging them.
4. Unscrew or unfasten and remove any existing graphics card from the computer, if necessary.
5. Locate the appropriate bus slot and, if necessary, remove the corresponding metal backplate cover(s). Make sure all internal cables are clear of the slot.
   Note: If you cannot find a bus slot to match the card, you need a graphics card with the correct bus to match the motherboard.
6. Align the graphics card with the slot and press it in firmly until the card is fully seated.
7. If your card requires supplementary power and must be connected directly to the power supply, locate the appropriate power connector cable(s) from the power supply and connect it (or them) to the graphics card's supplementary power connector(s).
   Note: If applicable, before installing a card that requires a supplementary power connection, make sure your existing power supply has such a connection available.
   Tip: The location of power connections may vary between models. They can be located on either the side or back of the card.
   Figure 2–1 Possible Power Connection Locations on the Graphics Card

   1. Power supply
   2. Graphics card
8. Fasten the graphics card securely to the back panel.
9. Make sure no internal cables are interfering with components inside the computer (for example, a cooling fan), and then replace the computer cover.
10. Reconnect any cables you have disconnected during installation, and then plug in the computer's power cord.
11. Turn on the monitor, and then the computer.

If you have properly installed the graphics card, the computer should start normally. Proceed to install the software and drivers for your AMD Radeon™ R9 270X/R9 270 graphics card.

Software Installation

This chapter describes the installation of the software and drivers associated with your AMD Radeon product.

AMD Drivers and Software

Drivers are small but important programs that enable an operating system to communicate with a piece of hardware, such as a graphics card.
When you install a new graphics card, you must also install the driver and configuration software the card requires to function properly.
You also need to install (or reinstall) your AMD Radeon drivers when you have reinstalled or upgraded your operating system or when you download updated drivers.
The latest drivers are available from AMD's Web site at http://support.amd.com.
Note: When reinstalling drivers, always uninstall any previous drivers that are on your system, even if they are for the same graphics card. Always start "fresh."

Installing the AMD Catalyst™ Software Suite (Windows® OS)

To install or remove software, you must have administrator rights or be logged on as a user with administrator rights.
Note: The installation dialog displays in English if the operating system's language is not supported.
Software is provided to both operate and take advantage of all the features of the graphics card. Software includes:

• The graphics card drivers.
• The Control Center software application.
• HydraVision™ software (included in the custom install).
• SurroundView™ software (included in the custom install).
• AMD Video Converter software (included in the custom install).

1. Insert the Software and Documentation CD.
   Note: If the install wizard does not start, navigate to the CD drive and doubleclick ATISETUP.exe.
2. From the menu that appears, click Software Install.
3. Follow the on-screen instructions. When prompted, select either Express or Custom .
   Not all software components are installed using the Express installation. Custom installation allows you to select individual software components for installation.

Display Configuration

This section describes how to configure displays and lists available display connections for your graphics card.

AMD Radeon™ R9 270X/R9 270 Connections

The following figure shows the display connections available on your AMD Radeon™ R9 270X/R9 270 graphics card.
Note: The baseplate may not appear exactly as depicted.

Figure 4–1 AMD Radeon™ R9 270X/R9 270 Display Connections

Display Configurations

The following table lists options for attaching displays that are indirectly supported by the connections on your graphics card.
For best graphics performance and quality, always use native connections, when available.
Note: Adapters not provided with your graphics card can be purchased directly from AMD's Web site or through your local AMD resellers.

Table 4–1 Display Configurations

If your graphics card includes a DisplayPort or Mini DisplayPort connection, you can the following types of DisplayPort-compliant adapters/dongles with your graphics card:

• Adapters—Uses DisplayPort signals to transmit audio and video information between variants of the same connection type (for example, Mini DisplayPort to standard DisplayPort).
• Active dongles—Allows connection from a DisplayPort connection to a nonDisplayPort display using DisplayPort signals.
• Passive dongles—Allows connection from a DisplayPort connection to a nonDisplayPort display using non-DisplayPort signals.

The type of adapter/dongle used determines the number of displays that can be supported by your graphics card. In general, more displays can be supported with DisplayPort adapters and active dongles than with passive ones.
Note: A list of compatible adapters/dongles for your graphics card can be found at:
http://support.amd.com/us/eyefinity/Pages/eyefinity-dongles.aspx.

Multiple Displays
Your AMD Radeon™ R9 270X/R9 270 graphics card provides display functionality for up to six displays using any combination of the following:

• Any number of Mini DisplayPort connections.
  You can connect more than one display to a Mini DisplayPort connection using a daisy chain configuration or a hub (multi-display support is made possible through the DisplayPort v1.2 standard).
• Two connections between the dual-link DVI and HDMI connections.
  The following table shows some examples of multiple display configurations; (A) indicates an active adapter is used and (P) indicates a passive adapter is used. Display abbreviations are mDP = Mini DisplayPort, DVI = dual-link DVI-I.

Table 4–2 Sample Display Configurations

For additional configuration information, visit http://www.amd.com/eyefinity.
Once displays are connected to the graphics card, you can change how your displays are configured using the Control Center software application. For more information, see Chapter Using the Control Center Software.

Using Adapters

The following procedure describes how to connect a display to your graphics card using an adapter.

1. Turn off your computer and display.
2. Plug the adapter into the connection from your AMD Radeon graphics card and tighten the thumbscrews (if there are any).
3. Connect your display's cable to the adapter and tighten the thumbscrews (if there are any).
4. Turn on your display first, then your computer.
   Use the Control Center software application to configure the new display.

Configuring the Display (Optional)

To change the display configuration or if you are experiencing an issue with the display, do the following:
Note: If you are not experiencing any troubles with the display, no adjustments are necessary.

1. Right-click on the desktop and, in the shortcut that appears, click Properties. The Display Properties dialog appears.
2. Click the Settings tab and then select the screen resolution and color depth that best suit your requirements and the display's performance.
3. Click Advanced and then select the Monitor tab.
4. Choose a refresh rate from the drop-down list.

   Choosing a refresh rate unsupported by the display may damage it. Consult the display's documentation if necessary.
5. Click OK.
   Once you have configured the main display you can configure any other displays that are connected.
6. To configure another display, do the following:
   1. Right-click on the desktop and, in the shortcut that appears, click Properties.
      Note: The Control Center software application can also enable and configure multiple monitors.
   2. To access the basic multi-monitor configuration settings, click the Settings tab.
   3. Select the monitor icon identified by the number 2.
      Note: When using multiple monitors with the graphics card, one monitor will always be the primary display, additional monitors will be designated as secondary.
   4. Click Extend my Windows desktop onto this monitor.
   5. Set the Screen Resolution and Color Quality as appropriate for the second monitor.
   6. Click OK.

AMD CrossFire™ Technology

Note: These features are only available for AMD Radeon™ R9 270X/R9 270 graphics cards with AMD CrossFire™ connections.

AMD CrossFire™ Overview

AMD CrossFire is a multi-GPU (graphics processing unit) performance gaming platform. It enables multiple graphics processors installed in a single computer to work together to improve system performance, creating a high-performance gaming platform. A typical AMD CrossFire setup involves two graphics cards.
Once your graphics cards have been installed, you can enable and configure AMD CrossFire support using the Control Center software application. For more information, see the AMD CrossFire technology Web page at sites.amd.com/us/game/technology/Pages/crossfirex.aspx.

Installing; Graphics CardsAMD CrossFire™ Graphics Cards

These instructions assume that a PCIe® graphics card has already been successfully installed in the secondary slot (slot one), and that the primary slot (slot zero) is empty.
Note: Consult your system builder or OEM to ensure that your system has an adequate power supply.
For an up-to-date listing of AMD CrossFire certified motherboards and power supplies, see support.amd.com/us/certified/Pages/certified-components.aspx.

1. Make sure the computer, monitor, and other peripheral devices are off.
2. Unplug the computer power cord and disconnect the monitor cable from the back panel of the computer.

   To avoid possible damage to the motherboard, wait approximately 20 seconds after unplugging the power cord before disconnecting a peripheral or removing a component from the motherboard.
3. Remove the computer cover.
   If necessary, consult the computer manual for help removing the cover.

   Remember to discharge your body's static electricity by touching the power supply case or the metal surface of the computer chassis.
4. Remove any unneeded graphics cards from the computer.

   Some graphics cards can get hot while operating. Wait approximately five minutes after turning off the computer before touching the card.
5. Locate the PCIe slots on the motherboard. If necessary, also remove the corresponding back panel cover.
6. Align the new graphics card in the secondary PCIe slot next to the existing graphics card and press firmly until the card is fully seated.
   Tip: For optimal performance in a dual-GPU AMD CrossFire configuration, make sure that each AMD Radeon™ R9 270X/R9 270 graphics card is separated by at least one empty expansion slot.
7. Fasten the graphics cards securely to the back panel.
8. Make sure the cables are not interfering with anything inside the computer (for example, a cooling fan) and then replace the computer cover.
9. Reconnect any cables you have disconnected and plug in the computer power cord.
10. Turn on the monitor and then the computer.
    You can now enable and configure AMD CrossFire support using the Control Center software application. For more information, see Chapter Using the Control Center Software.

EnablingAMD CrossFire™

When AMD CrossFire support is enabled, the best possible GPU combination is selected based on the current hardware configuration. If necessary, you can change the existing AMD CrossFire configuration using the following procedure. For more information, see the help system for the Control Center application.

1. Navigate to the AMD CrossFire Configuration page located under the following groups:
   ➭ Standard View—Performance or Gaming ▷ Performance.
   ➭ Advanced View—Performance or Gaming.
2. From the GPU selection menu at the top of the page, select the desktop associated with the GPU that you want to use as the Display GPU.
3. Select Enable CrossFire.
   Note: The Choose from the following Rendered GPU combinations dropdown list automatically populates with all available render GPUs based on the selected display GPU. The list displays only GPUs that can be enabled for AMD CrossFire. Other combinations are not listed here but may be listed on the AMD CrossFire Diagnostics page.
4. From the list, select the appropriate combination.
   Note: If the selected combination is not the most optimal choice for your system, a message appears at the bottom of the page notifying you of this.
5. Click Apply.
   When AMD CrossFire is enabled, the GPU Accelerated Physics feature might be automatically disabled for all cards and displays in the configuration except those used by AMD CrossFire.

Using the Control Center Software

Control Center Overview

The Control Center software application contains settings for configuring and finetuning your AMD product. Use it to manage desktops and displays, optimize your graphics processor for enhanced 3D application and video quality, and configure your CPU for improved power savings or system performance. You can also use the performance tools in the application to monitor and manage clock speed and memory use for your graphics card to ensure that your AMD product is configured and running as efficiently as possible.
The application provides a Standard View for guided configuration and an Advanced View for quick and easy access to all available features and settings. It also provides a search feature for finding specific pages, as well as the ability to bookmark pages by pinning them within the application.
The following is a list of common configuration tasks that can be completed using the application:

• Adding and removing displays
• Rotating displays
• Setting the main (primary) display
• Duplicating and extending desktops
• Arranging desktops
• Managing 3D application and video settings
• Configuring AMD CrossFire™ technology settings (if applicable)

More information on the application and its available features are provided through the comprehensive Control Center help system.
Note: Feature availability varies between AMD products and operating systems.

Starting the Control Center Software

To start the Control Center software application in Windows®, use one of the following methods:

Table 6–1 Control Center Access Routes in Windows®

To start the application in Linux®, type the command amdcccle in the terminal window.
To start the application with superuser privileges, do any of the following:

• Log on as a superuser before running the command amdcccle.
• Run the command sudo amdcccle and provide the superuser password when prompted.
• Run the command amdxdg-su -c amdcccle and provide the superuser password when prompted.
  Note: Certain Control Center settings can only be changed with superuser privileges.

Using the Control Center Help System

The help system that is available with the Control Center software application provides detailed usage information and tips for configuring your AMD product. The help system also provides conceptual information on the technologies that are available for your product.
Use the following steps to access the help system.

1. Open the Control Center application.
2. Choose one of the following options:
   ➭ Set the mouse focus to the application window (by clicking the window) and press F1 on your keyboard.
   ➭ Click the Help button (shown as a question mark) located in the titlebar of each page within the application.
   ➭ Right-click the Control Center icon in the Windows taskbar notification area (system tray), and click Help.
   The help system opens to provide context-sensitive help for the current page or general usage information.

Troubleshooting

The following section offers troubleshooting tips and provides customer care, warranty, and compliance information.
Note: Some troubleshooting tips may not be applicable depending on the display options supported by and configured for your card.

Graphics Card Installation Troubleshooting
For more advanced troubleshooting information, contact AMD Customer Care at http://support.amd.com.

The graphics card doesn't fit any of the motherboard slots.
The graphics card needs to be exchanged for one with a bus that matches the motherboard.
For more information on bus types, see knowledgebase article GPU-59: How to Install AMD Graphics Hardware.

The computer beeps and the boot process stops

Make certain that the graphics card is properly connected to the internal power supply and the motherboard.

No display on power up

Try these possible solutions:

• Verify that the monitor is connected properly to the computer and a power supply.
• Verify that the power supply meets the minimum system requirements.
• Reconnect all the hardware device cables that were removed during the installation of the graphics card.
• If any adapters or video switches are being used, remove them and connect the displays directly to the graphics card.
• Check the motherboard manufacturer's Web site for an SBIOS update.
• Turn off the on-board video.
• Install a different graphics card. If there are no display issues, then the graphics card in question may be defective.
• If your motherboard has on-board graphics capabilities, you may need to disable them. Consult your motherboard documentation for more information.
  Note: Some manufacturers do not allow the on-board graphics to be disabled or to become the secondary display.

For more troubleshooting tips, see knowledgebase article 737-22472: How to Troubleshoot No Display on Re-start Issues.

The computer does not boot up properly

Verify that the installation instructions were followed correctly.
Make certain that the graphics card is properly connected to the power supply and the motherboard.
For Windows® operating systems, restart your system in Safe Mode. Use Windows Device Manager to remove any graphics driver entries under Display Adapters and restart your system.
Check the system configuration utility for interrupt assignments.

During software installation on a Windows® OS, the screen goes blank.
The software is still installing. Wait 20–30 minutes to make sure the software has finished installing and then restart the computer.

Applications are hanging or there is no display after boot up.
Make certain that the graphics card is installed correctly and is properly connected to the motherboard and power supply (if applicable).
Verify that the power supply meets the minimum system requirements.

Troubleshooting AMD CrossFire™
The following are suggested solutions for common AMD CrossFire™ troubleshooting issues.

Change Motherboard BIOS Settings

Some motherboards may have a system BIOS option to switch between single and dual PCIe slot support. The default setting may be single slot support. Refer to the motherboard's manual for information to enable dual PCIe slot support.
For more information, see the AMD CrossFire Web page at http://game.amd.com/usen/crossfirex_about.aspx.

Use Graphics Cards with Different Amounts of Memory
In some AMD CrossFire configurations, graphics cards with different amounts of memory can by used; however, restarting your computer is required after enabling AMD CrossFire. This will cause AMD CrossFire to reduce the amount of memory on the card with the most amount of memory to match the memory size of the graphics card with the least amount of memory.
Clicking OK to the memory mismatch error message will restart your computer.
Note: When disabling AMD CrossFire you will be given the option to restart your computer to restore the original graphics memory size or continue with the reduced memory size.

Card Reversal Recommended

A recommendation message to reverse the graphics card positions may appear if the primary graphics card is not installed into the primary PCIe slot. Although AMD CrossFire can be enabled, performance may be improved by reversing the graphics cards in the computer.
See your motherboard's manual to determine which is the primary PCIe slot.

3D Client is Active

You will not be able to start AMD CrossFire if a 3D application, game, or video playback, such as a DVD movie, is running.
Close all open 3D applications, games, and movie player applications, and then enable AMD CrossFire.

AMD CrossFire™ is Currently Unavailable

This error has occurred because AMD CrossFire did not correctly detect your graphics hardware or there is a problem with the software.

• Check that the graphics cards are installed correctly.
• Check that the interconnect cable, if applicable, is installed correctly.
• Close all running 3D applications.
• Check that the AMD CrossFire mode is set to Software in the Control Center application. (The AMD Radeon™ R9 270X/R9 270 can only use AMD CrossFire technology in software mode.)
• Reinstall the Control Center software application and drivers. For more details, see knowledgebase articlesGPU-57: How to Uninstall Pre-existing Graphics Card Drivers and GPU-33/GPU-1/GPU-2: How to Install AMD Catalyst Software on Windows® 7/Windows Vista®/Windows® XP.

Screen Rotation is Unavailable or Does Not Work

Screen rotation is not an available feature on AMD CrossFire systems.

Video Displays Flicker During System Startup

This is normal during AMD CrossFire startup.

AMD CrossFire™ Disabled after Swapping/Moving Cards
If you change the AMD CrossFire configuration by moving the graphics cards to different slots on the motherboard, disable AMD CrossFire and restore factory default settings in the Control Center software application first. Once the cards have been swapped, enable AMD CrossFire. This ensures the new configuration is detected by the computer.

HDTV Adapter Troubleshooting
The following troubleshooting tips may help if you experience problems with HDTV.
More troubleshooting information can be found on the AMD Web site. Please visit http://support.amd.com.

There is a black border around the TV when using an HDMI™ connection.
Try adjusting the overscan/underscan of the TV. For more information, see knowledgebase article GPU-72: Unable to Adjust a Digital Display to Match the Resolution of the Desktop.

There is no display on the TV

The TV will not display anything until Windows starts; this may take several minutes.
Make sure the TV is set to YPbPr input.

DVDs will not play in high-quality modes

For displays connected using an analog connection, playback of CSS-protected DVDs may be restricted to certain modes.
For displays connected using a digital connection, playback on certain DVD players may also be restricted if HDCP (high-bandwidth content protection) cannot be enabled.
This restriction also applies to displays connected using active DisplayPort adapters.

The display appears tilted

Consult the HDTV documentation.

TVs/monitors connected cannot be enabled.
Check individual connections to the TVs/monitors.
If TVs and/or monitors connected using DisplayPort adapters, passive dongles, or active dongles cannot be enabled, visit http://www.amd.com/eyefinity to check the connectivity options available for your graphics card and that your chosen configuration is supported.
For a list of AMD Eyefinity validated dongles, see http://support.amd.com.
Required display resolution is missing/unavailable in AMD Catalyst™ Control Center/AMD FirePro™ Control Center.
Make sure that:

• The desired resolution is supported for the display being used.
• The graphics driver has been properly installed.
• The connectors, cables, switches, and/or adapters connecting the display to the graphics card are compatible and correctly configured.

For more troubleshooting steps, see knowledgebase GPU-10: Inability to Select a Specific Resolution for a Display Device in AMD Catalyst™ Control Center.

Customer Care
The AMD Customer Care Web site has number of helpful resources, including a knowledgebase of FAQs and the AMD Radeon Workstation Graphics Web Ticket Submission Page.
The Web site is complimentary and available at all times. The address is http://support.amd.com.

Contact Information
If you experience difficulties with your AMD Radeon™ product, you can contact AMD Customer Care in the following ways.
The latest contact information and tips for faster service can be found on the AMD Global Technical Support page at http://support.amd.com.

Important Safety Instructions

Note: This product is for use only with compatible UL-listed personal computers that have installation instructions detailing user installation of this class of product.
Read all instructions before beginning installation. All safety and installation instructions should be read before the product is installed or operated.
Retain all instructions. Safety, installation, and operating instructions should be retained for future reference.
Heed all warnings. All warnings regarding the product and its operating instructions should be obeyed. Use appropriate grounding.

[Where applicable] For continued protection against the risk of electric shock and fire, install this accessory only in products equipped with a three-wire grounding plug, a plug having a third (grounding) pin. This is a safety feature. Do not remove the grounding pin of a three-pin plug.
Attach product securely. All product-securing screws or fasteners should be completely tightened in order to provide continuous bonding between the product and the PC chassis, as appropriate.
