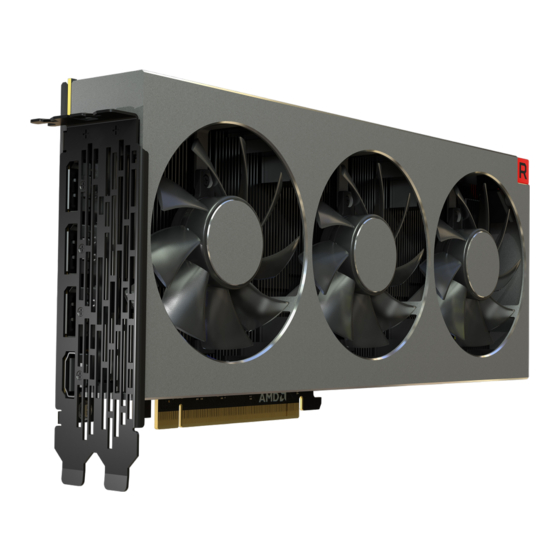

AMD Radeon VII Quick Setup Manual
  1. Manuals
  2. Brands
  3. AMD Manuals
  4. Video Card
  5. Radeon VII
  6. Quick setup manual

AMD Radeon VII Quick Setup Manual

Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

AMD Radeon™ VII
Quick Setup Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Radeon VII and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AMD Radeon VII

Summary of Contents for AMD Radeon VII

  • Page 1 AMD Radeon™ VII Quick Setup Guide...

  • Page 2: Getting Started

    AMD reseller in the event of missing or damaged parts. Also make sure that you have the proper system requirements and have reviewed the preinstallation information outlined below.

  • Page 3: Hardware And Software Installation

    2. If needed, remove any existing graphics card(s). 3. Install the new graphics card. 4. Reassemble and connect your computer system and display(s). 5. Start the computer system, install the AMD drivers and configuration software. 6. Restart the computer system. Installing the Graphics Card Power Connection Location Power supply.
  • Page 4 Installing the Graphics Card Turn off the computer, monitor(s) and other peripheral devices. 2. Unplug the computer’s power cord, and then disconnect all cables from the back of the computer. 3. Remove the cover to the computer’s case. 4. Unscrew or unfasten and remove any existing graphics card from the computer. NOTE: If necessary, consult the computer manual for help in removing the cover.
  • Page 5 You should also reinstall Radeon Software drivers each time you reinstall or upgrade your operating system. The latest drivers are available from AMD’s website at http://support.amd.com.

  • Page 6: Display Configurations

    Display Configurations Display Configurations Connecting Displays The Radeon™ VII graphics card provides support for Ultra HD resolutions via its DisplayPort connections. Up to four displays can be simultaneously supported via the onboard DisplayPort connections. Non-DisplayPort devices may be connected using adapter cables. NOTE: Only up to three (3) passive adapter cables may be used.
  • Page 7 Once your displays are connected, you can control how they are configured using the Radeon™ Software Adrenalin software application that is available with your Radeon™ VII graphics driver. By configuring AMD Eyefinity™ technology using Radeon™ VII Settings, you can also multiply your screen area to allow for immersive gameplay or larger work spaces.
  • Page 8 No license, including implied or arising by estoppel, to any intellectual property rights is granted by this document. Terms and limitations applicable to the purchase or use of AMD’s products are as set forth in a signed agreement between the parties or in AMD’s Standard Terms and Conditions of Sale.
  • Page 9 AMD.COM © 2019 AMD, and the AMD Arrow logo, Radeon, EyeFinity, FreeSync, and combinations thereof are trademarks of Advanced Micro Devices, Inc. DirectX and Microsoft are registered trademarks of Microsoft Corporation in the US and other jurisdictions. PCI Express and PCIe are registered trademarks of PCI-SIG Corporation. Vulkan and the Vulkan logo are trademarks of the Khronos Group Inc.
