Quest Engineering 6 Series Installation Manual

QUEST 6 SERIES
EXHAUST DUCT INSTALLATION GUIDE
A
USE RECTANGUL AR DUCT

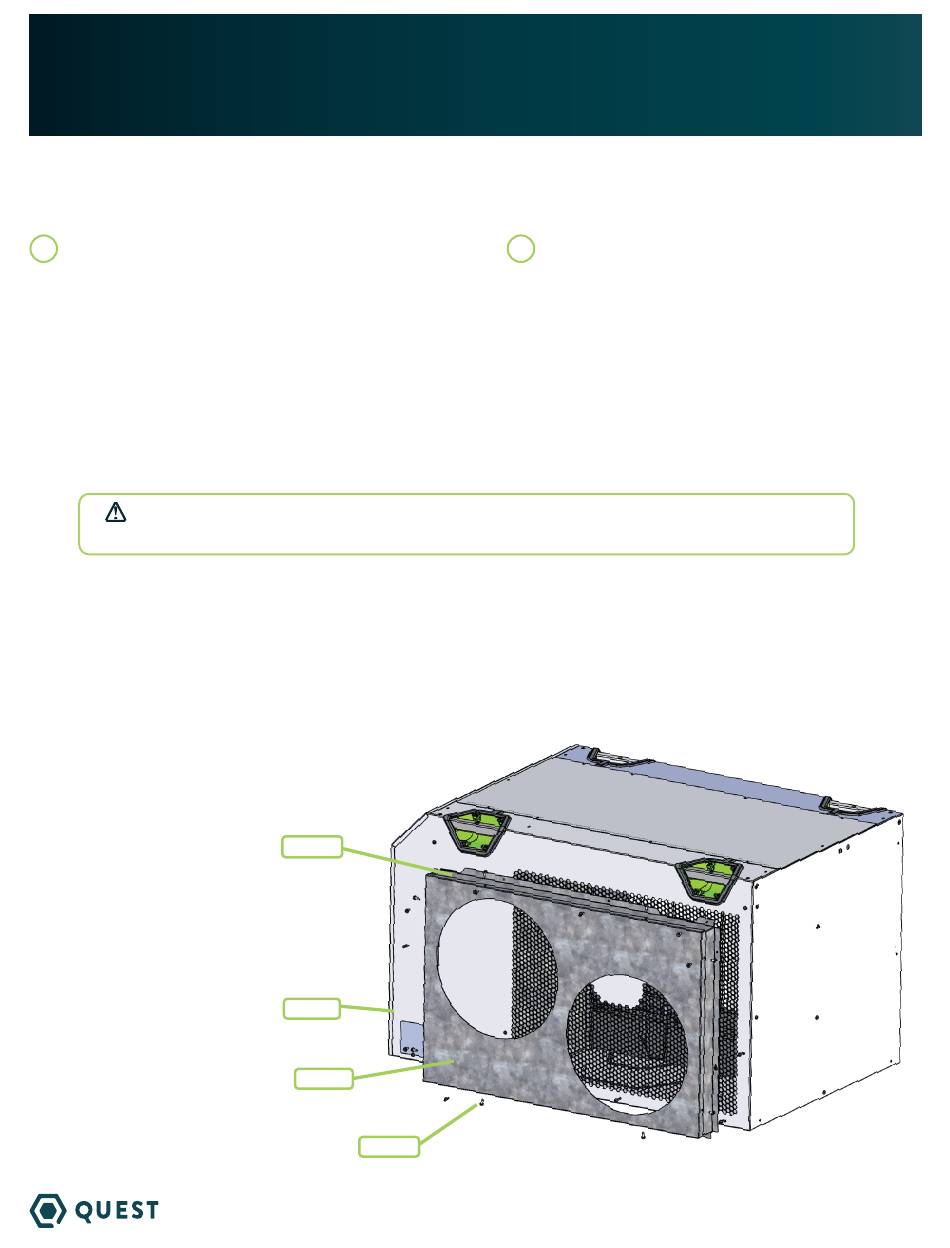

1. Attach ITEM 2 (duct adapter) to ITEM 1 (unit)
using 10 of ITEM 4 (screws).
2. Attach rectangular ducting (not provided)
directly to ITEM 2 (duct adapter).
Note: ITEM 3 will not be needed for use with
rectangular duct.
CAUTION
ITEM 1
6 Series Dehumidifier
ITEM 2
(1) Duct Adapter
ITEM 3
(1) 14" Collar Plate
ITEM 4
(22) #10 Srews
Q U E S T C L I M AT E .C O M
(GEN 2)
AIR CAN ENTER INTO THE UNIT IN TWO WAYS:
(NOT INCLUDED)
When ducting the unit, a dedicated duct system is recommended for each unit.
Recommended 25' max run of ducting.
(not included)
ITEM 2
ITEM 1
ITEM 3
ITEM 4
B
USE ( 2 ) 14" ROUND DUCTS
1. Attach ITEM 2 (duct adapter) to ITEM 1 (unit)
using 10 of ITEM 4 (screws).
2. Attach ITEM 3 (14" collar Plate) to ITEM 2
(duct adapter) using 12 of ITEM 4 (screws).
3. Attach 14" duct (not provided) to both 14"
duct openings.
1-877-420-1330
(NOT INCLUDED)
T S - 2 1 4 4
0 4 / 2 5 R E V A
