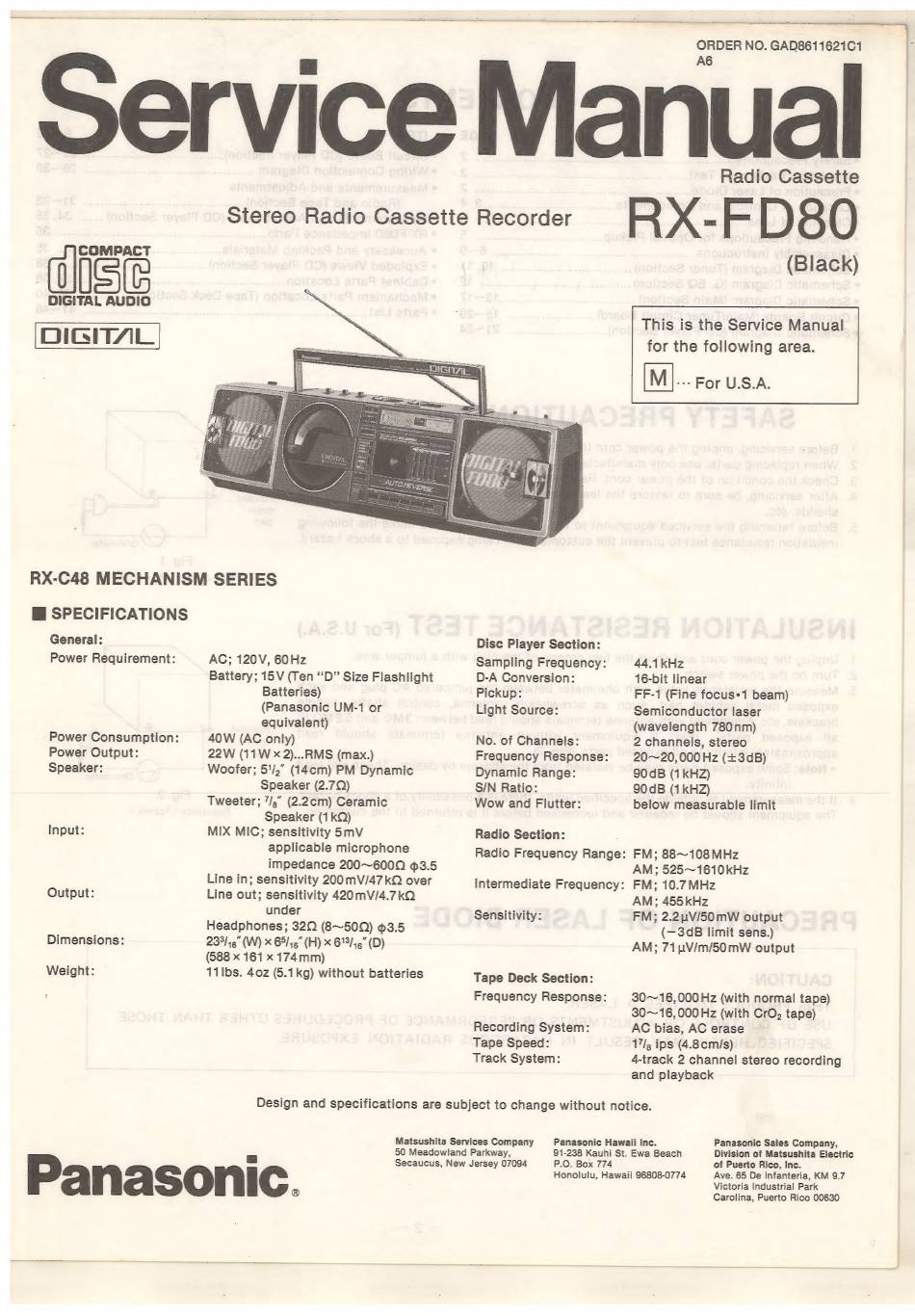

Panasonic RX- FD80 Service Manual

ORDER NO. GAD8611621C1
Radio Cassette
DIGITAL AUDIO
This is the Service Manual
RX-C48 MECHANISM SERIES
i SPECIFICATIONS
General:
Disc Player Section:
Power Requirement:
AG; 120V, 60Hz
Sampling Frequency:
44.1kHz
Battery; 15V (Ten "D" Size Flashlight
D-A Conversion:
16-bit linear
Batteries)
Pickup:
FF-1 (Fine focus*1 beam)
(Panasonic UM-1 or
Light Source:
Semiconductor laser
equivalent)
(wavelength 780nm)
Power Consumption:
40W (AC only)
No. of Channels:
2 channels, stereo
Power Output:
22W (11W x 2)...RMS (max.)
Frequency Response:
20~20, 000 Hz (+3dB)
Speaker:
Woofer; 51/," (14cm) PM Dynamic
Dynamic Range:
90dB (1kHZ)
Speaker (2.79)
S/N Ratio:
90dB (1kHZ)
Tweeter; 7/3" (2.2cm) Ceramic
Wow and Flutter:
below measurable limit
Speaker (1kQ)
Input:
MIX MIC; sensitivity 5mV
Radio Section:
applicable microphone
Radio Frequency Range: FM; 88~108MHz
impedance 200~6000 63.5
AM; 525~1610kHz
Line in; sensitivity 200 mV/47 kQ over
Intermediate Frequency:
FM; 10.7MHz
Output:
Line out; sensitivity 420mV/4.7kQ
AM; 455kHz
under
Sensitivity:
FM; 2.2uV/50mW output
Headphones; 32Q (8~50Q) 3.5
(—3dB limit sens.)
Dimensions:
23°15" (W) x 65/46" (H) x 65/46" (D)
AM; 71uV/m/50mW output
(588 x 161 x 174mm)
Weight:
11lbs. 40z (6.1kg) without batteries
Tape Deck Section:
Recording System: AC bias, AC erase
Tape Speed: 17/, ips (4.8cm/s)
Track System: 4-track 2 channel stereo recording
and playback
