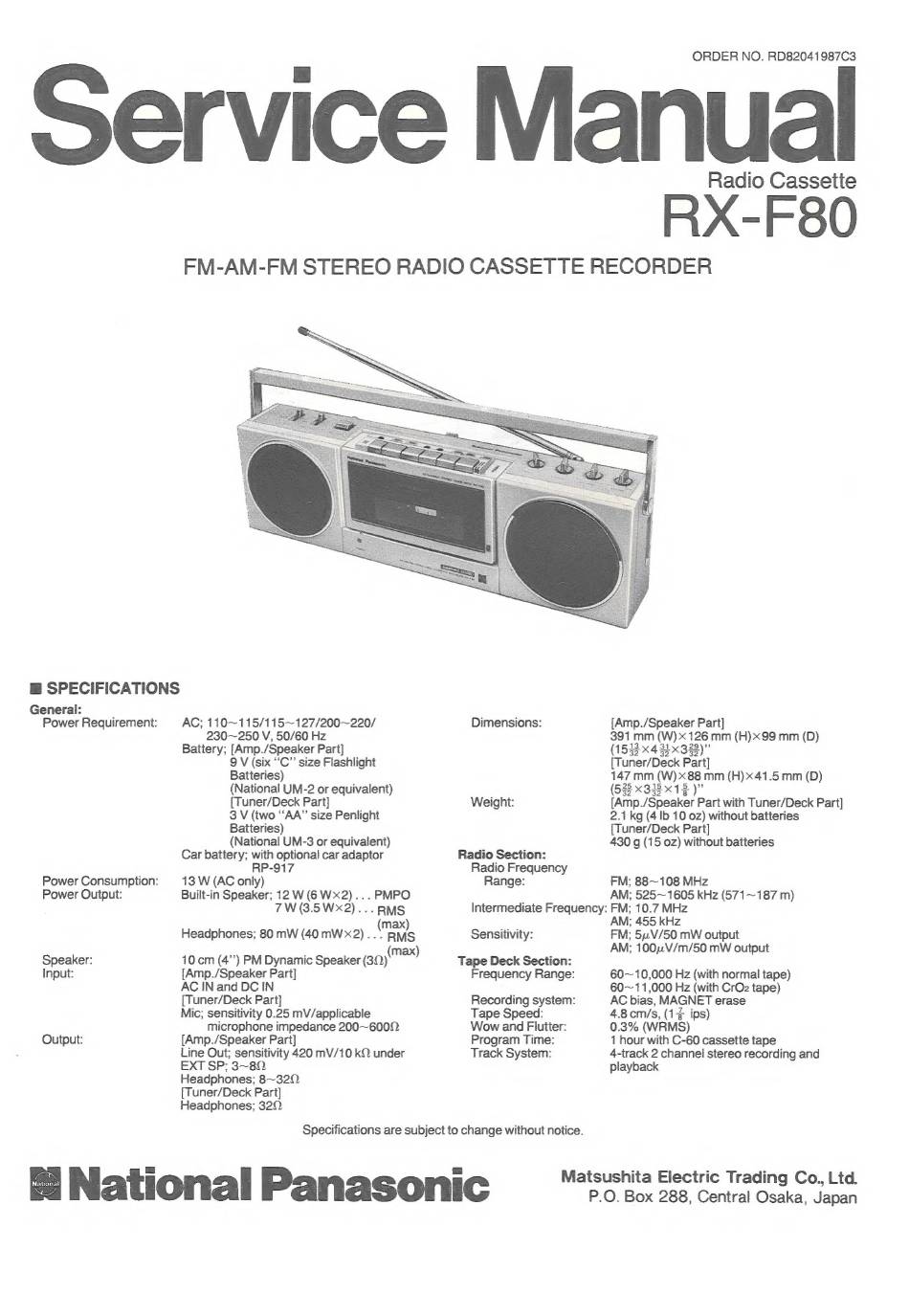

ORDER NO. RD82041987C3

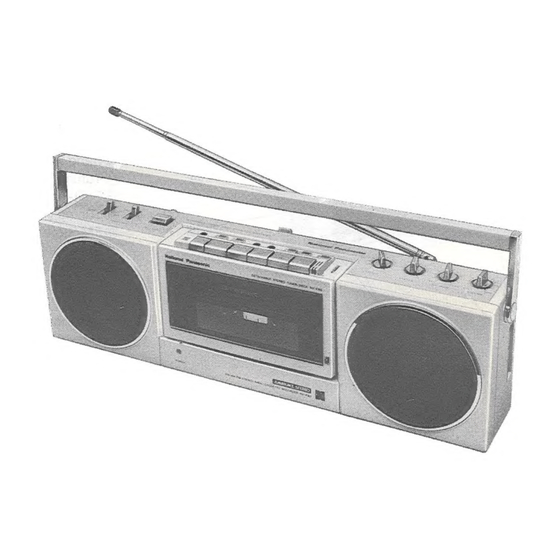

Radio Cassette
RX-F80
FM-AM-FM STEREO RADIO CASSETTE RECORDER
B SPECIFICATIONS
General:
Power Requirement:
AC; 110~115/115~127/200~220/
Dimensions:
[Amp./Speaker Part]
230~250 V, 50/60 Hz
391 mm (W) x 126 mm (H)x99 mm (D)
Battery; [Amp./Speaker Part]
(1543 x431x333)"
9 V (six ''C"' size Flashlight
[Tuner/Deck Part]
Batteries)
147 mm (W) x88 mm (H)x41.5 mm (D)
(National UM-2 or equivalent)
(538x318 x18)"
[Tuner/Deck Part]
Weight:
[Amp./Speaker Part with Tuner/Deck Part]
3 V (two "'AA"' size Penlight
2.1 kg (4 lb 10 02) without batteries
Batteries)
[Tuner/Deck Part]
(National UM-3 or equivalent)
430 g (15 oz) without batteries
Car battery; with optional car adaptor
Radio Section:
RP-917
Radio Frequency
Power Consumption:
13 W (AC only)
Range:
FM; 88~108 MHz
Power Output:
Built-in Speaker; 12 W (6 Wx2)... PMPO
AM; 525~1605 kHz (571~187 m)
7 W (3.5 WxX2)... RMS
Intermediate Frequency: FM; 10.7 MHz
(max)
AM; 455 kHz
Headphones; 80 mW (40 mWx2)... RMS
Sensitivity:
FM; 52/50 mW output
(max)
AM; 100%V/m/50 mW output
Speaker:
10 cm (4"') PM Dynamic Speaker (320)
Tape Deck Section:
Input:
[Amp./Speaker Part]
Frequency Range:
60~ 10,000 Hz (with normal tape)
AC IN and DC IN
60~11,000 Hz (with CrOz tape)
[Tuner/Deck Part]
Recording system:
AC bias, MAGNET erase
Mic; sensitivity 0.25 mV/applicable
Tape Speed:
4.8cm/s, (1¢ ips)
microphone impedance 200~6002
Wow and Flutter:
0.3% (WRMS)
Output:
[Amp./Speaker Pari]
Program Time:
1 hour with C-60 cassetie tape
Line Out; sensitivity 420 mV/10 kQ under
Track System:
4-track 2 channel stereo recording and
EXT SP; 3~80
playback
Headphones; 8~320
[Tuner/Deck Part]
Headphones; 3220
Specifications are subject to change without notice.
aN
a
=
Matsushita
Electric
Trading
Co., Ltd.
National Panasonic
