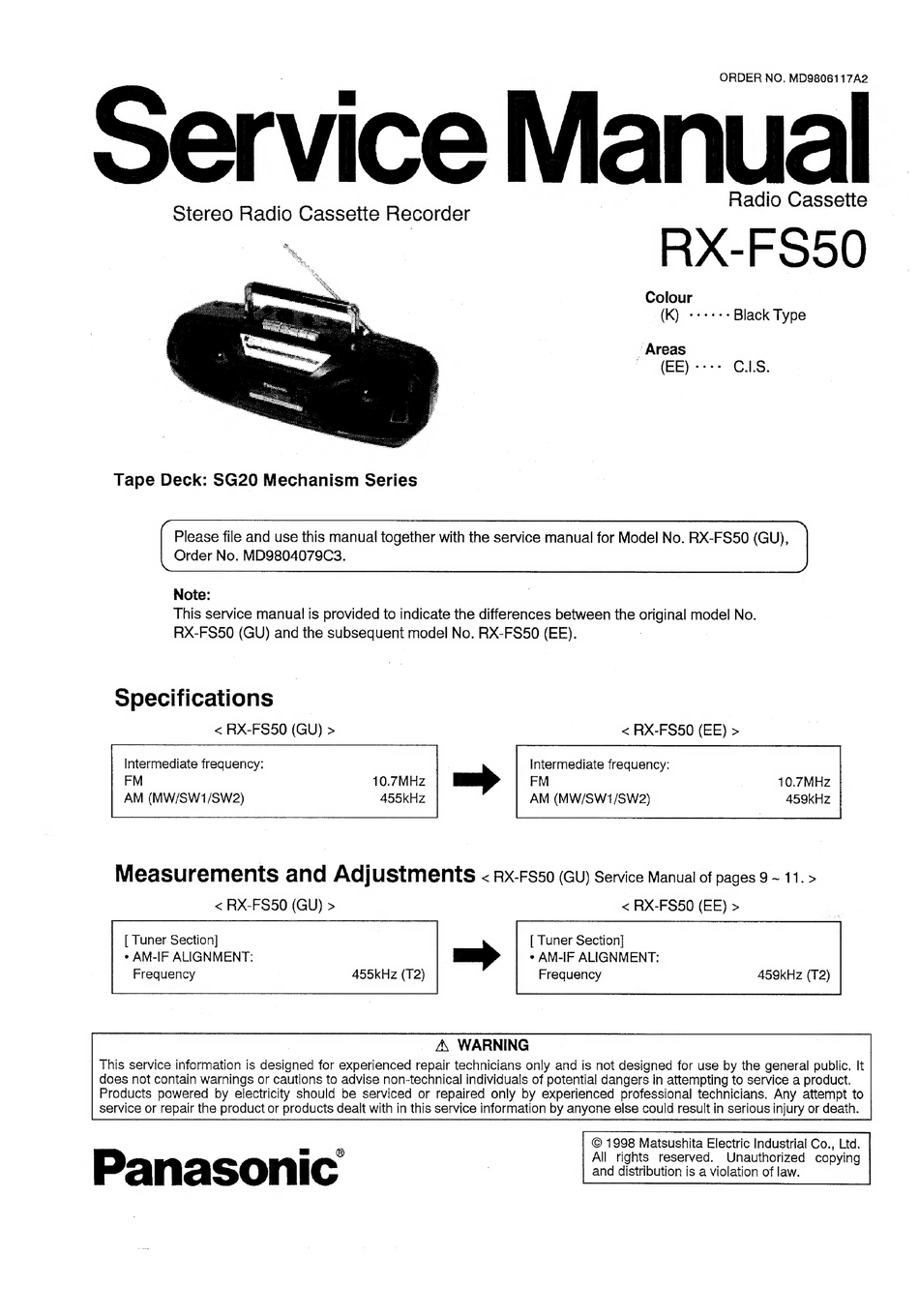

Panasonic RX-FS50 Service Manual

ORDER NO. MDg806117A2
Service Manual
Radio Cassette
RX-FS50

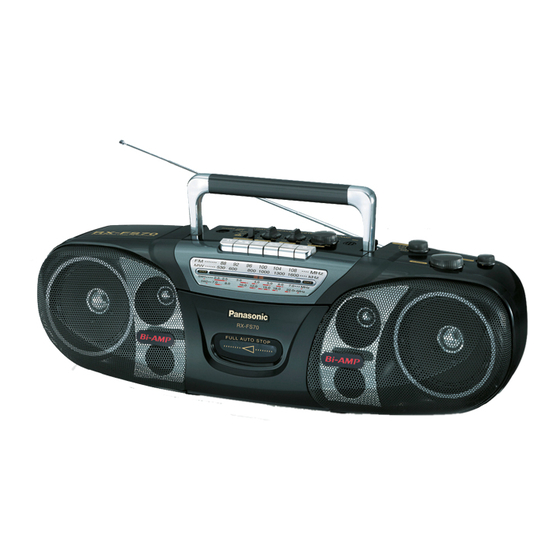

Stereo Radio Cassette Recorder
Colour
(K) scere- Black Type
Areas
(EE) ---- CLS.
Tape Deck: SG20 Mechanism Series
Please file and use this manual together with the service manual for Model No. RX-FS50 (GU),
Order No. MD9804079C3.
Note:
This service manual is provided to indicate the differences between the original model No.
RX-FS50 (GU) and the subsequent model No. RX-FS50 (EE).
Specifications
< RX-FS50 (GU) > < RX-FS50 (EE) >
Intermediate frequency: Intermediate frequency:
FM 10.7MHz FM 10.7MHz
AM (MW/SW1/SW2) 455kHz AM (MW/SW1/SW2) 459kHz
Measurements and Adjustments < RX-FS50 (GU) Service Manual of pages 9 ~ 11. >
< RX-FS50 (GU) > < RX-FS50 (EE) >
[ Tuner Section] [ Tuner Section]
* AM-IF ALIGNMENT: * AM-IF ALIGNMENT:
Frequency 455kHz (T2) Frequency A59kHz (T2)
A, WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It
does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to
service or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
Panasonic
© 1998 Matsushita Electric Industrial Co., Ltd.
All rights reserved. Unauthorized copying
and distribution is a violation of law.
