SS-300 Shooting star fibre optic star kit
User manual
Technical specification
Light engine model
Programmes
Remote controller
Light source type
CRI (Ra>):
IP rating
DMX mode details
Working voltage
Rated power
Material of housing
Light engine dimensions
Net weight
Remote control dimensions
Fibre optic port diameter
Fibre optic bundle:
Lifetime
Warranty
Package dimensions (excluding fibre optic bundle)
Weight with packaging
www.stellarlighting.co.uk
email: info@stellarlighting.co.uk
Features:
• Complete shooting star kit for indoor
ceiling projects with remote controller and
fibre optic bundle
• Shooting star effect
• Fibre optic bundle with 300 fibres
LEN-5010 DMX
20 programs, speed control, on/off
Yes, RF
LED white light
70
IP20
10 DMX output channels, 256 output gray level, DMX512
socket standard RJ45
12V DC (100/240V power adapter included)
5 W (10 x 0.5 W)
Aluminium
155 mm (L) x 93 mm (W) x 32 mm (H)
374g
85 mm x 52 mm x 7 mm
10 x 8 mm
300 fibres: 300 x 0.75 mm at 2 m length
50,000 hours
2 years
193 mm (L) x 160 mm (W) x 90 mm (H)
1.0 kg
1
Advertisement
Table of Contents
Related Manuals for Stellar Lighting SS-300
Summary of Contents for Stellar Lighting SS-300

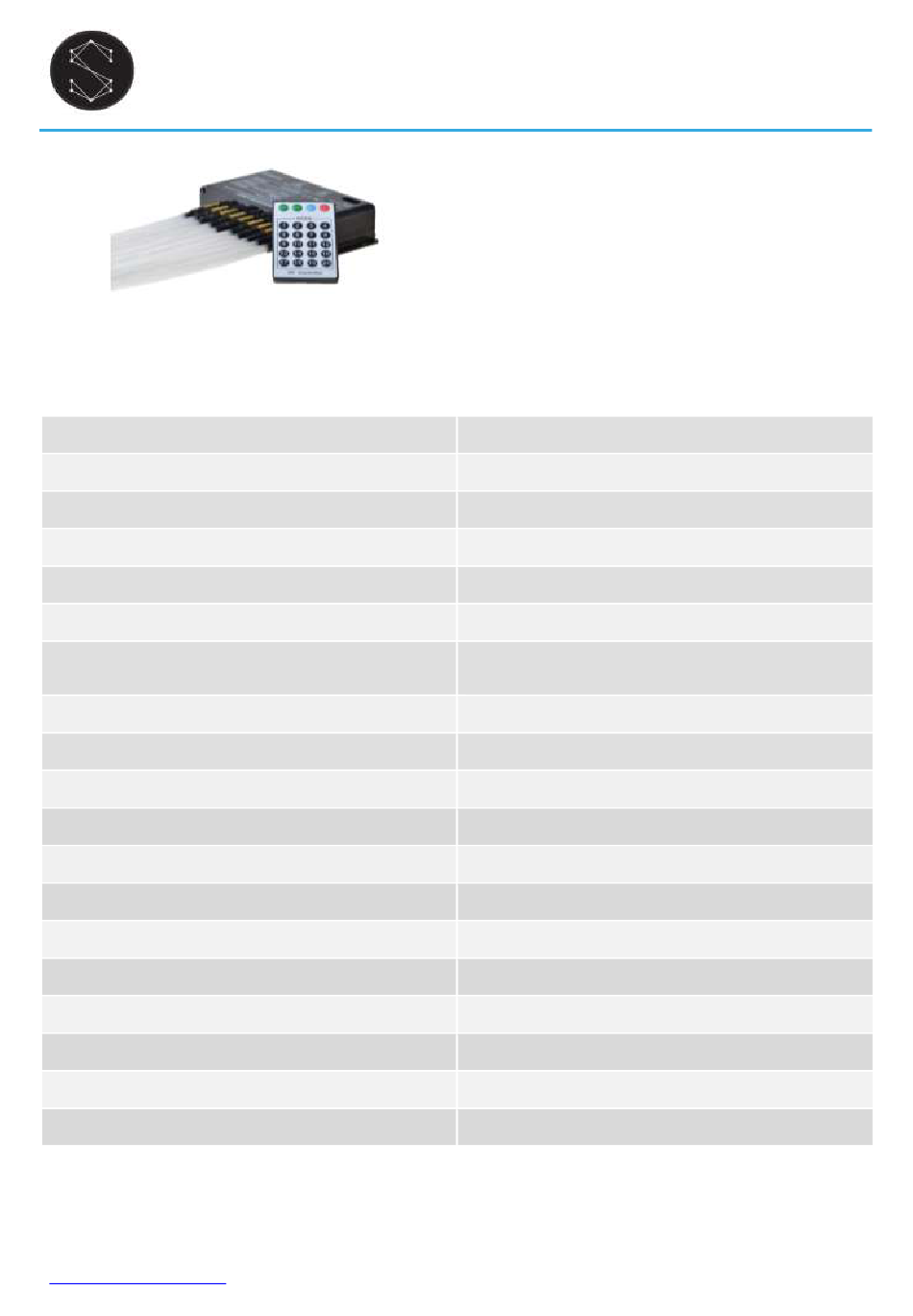

- Page 1 SS-300 Shooting star fibre optic star kit User manual Features: • Complete shooting star kit for indoor ceiling projects with remote controller and fibre optic bundle • Shooting star effect • Fibre optic bundle with 300 fibres Technical specification Light engine model...
-
Page 2: Safety Notices
SS-300 Shooting star fibre optic star kit User manual Safety notices Electrical work safety advice and tips ● Make sure the input voltage is correct. ● Avoid placing the light engine in the rain or in moist areas. Please ensure that the light engine has sufficient ventilation and is not placed in a completely sealed area. -
Page 3: Installation
SS-300 Shooting star fibre optic star kit User manual Installation The installation dimension for the light engine (Fig. 1) Connection method between optical fibres and the light engine Your fibre optic bundle will come with the connector fittings ready to connect to the light engine. - Page 4 SS-300 Shooting star fibre optic star kit User manual 3. Cut the fibre bundle to a flat surface with a heat-knife or blade. 4. Make sure that the optical fibre bundle head is smooth and clean to ensure even light distribution.
- Page 5 SS-300 Shooting star fibre optic star kit User manual Remote controller mode DIP switch settings: • DIP switch 1-9: OFF • DIP switch 10: ON Remote controller programmes No. Mode Mode Meteor 1 Fade scan 1 Meteor 2 Fade scan 2...
- Page 6 SS-300 Shooting star fibre optic star kit User manual DIP switch control mode DIP switch settings: • DIP switch 1-4: program setting • DIP switch 5-7: speed setting • DIP switch 8-10 : OFF Programs can be set with DIP switches 1-4...
- Page 7 SS-300 Shooting star fibre optic star kit User manual Example 1. To set DMX address to 38: • 2 switch ON (2) • 3 switch ON (4) • 6 switch ON (32) = 38 Example 2. To set DMX address to 388: •...
-
Page 8: Compliance Notes
SS-300 Shooting star fibre optic star kit User manual Compliance notes United Kingdom Waste Electrical and Electronic Equipment Regulations 2013 The waste electrical and electronic equipment regulations in the UK promote the purpose of recycling, recovering and reuse of products and components, thereby, intending to reduce the amount of electrical and electronic waste from being disposed off at landfill sites. - Page 9 SS-300 Shooting star fibre optic star kit User manual If you have any questions or comments regarding our products, please contact us on info@stellarlighting.co.uk www.stellarlighting.co.uk email: info@stellarlighting.co.uk...
