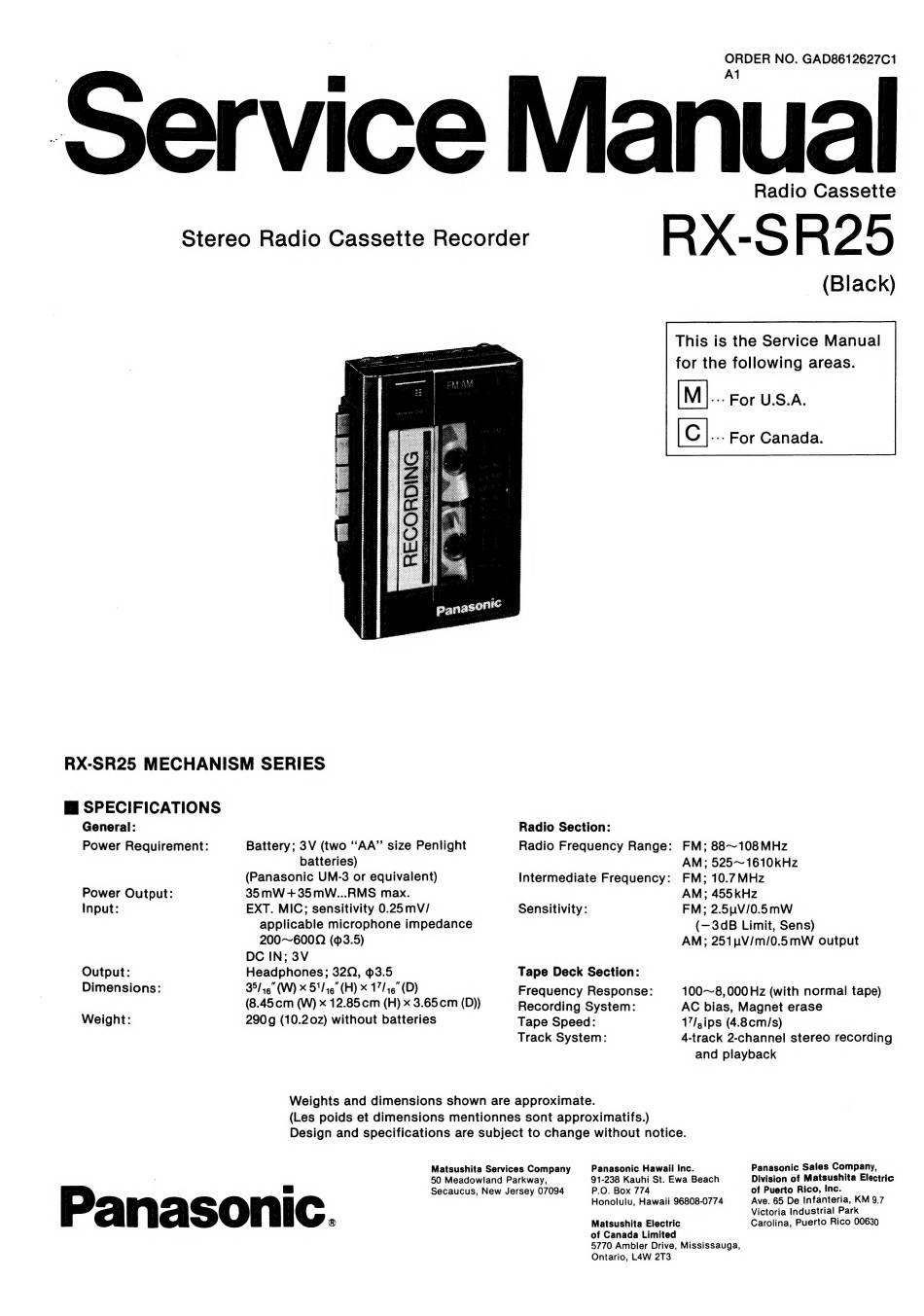

Panasonic RX-SR25 Service Manual

ORDER NO. GAD8612627C1
Service Manual
Stereo Radio Cassette Recorder
RX-SR25 MECHANISM SERIES
Radio Cassette
RX-SR25
- (Black)
This is the Service Manual
for the following areas.
[M]... For U.S.A.
[C]... For Canada.
Mi SPECIFICATIONS
General: Radio Section:
Power Requirement: Battery; 3V (two "AA" size Penlight Radio Frequency Range: FM; 88~108MHz
batteries) AM; 525~1610kHz
(Panasonic UM-3 or equivalent) Intermediate Frequency: FM; 10.7MHz
Power Output: 35mMW+35mW...RMS max. AM; 455kHz
Input: EXT. MIC; sensitivity 0.25mV/ Sensitivity: FM; 2.5uV/0.5 mW
applicable microphone impedance (—3dB Limit, Sens)
200~600Q (3.5) AM; 251pV/m/0.5mW output
DC IN; 3V
Output: Headphones; 32Q, $3.5 Tape Deck Section:
Dimensions: 3°/ 46° (W) X 51/46" (H) X 17/46 (D) Frequency Response: 100~8,000Hz (with normal tape)
(8.45cm (W) x 12.85cm (H) x 3.65cm (D)) Recording System: AC bias, Magnet erase
Weight: 290g (10.202) without batteries
Tape Speed:
17/,ips (4.8cm/s)
Track System:
Weights and dimensions shown are approximate.
(Les poids et dimensions mentionnes sont approximatifs.)
4-track 2-channel stereo recording
and playback
Design and specifications are subject to change without notice.
Matsushita Services Company Panasonic Hawaii Inc. Panasonic Sales Company,
50 Meadowland Parkway, 91-238 Kauhi St. Ewa Beach Division of Matsushita Electric
Secaucus, New Jersey 07094 P.O. Box 774 of Puerto Rico, Inc.
Victoria Industrial Park
=
i anasonic
el
oc MR ate
ube edi
Matsushita Electric
Carolina, Puerto Rico 00630
of Canada Limited
5770 Ambler Drive, Mississauga,
Ontario, L4W 2T3
