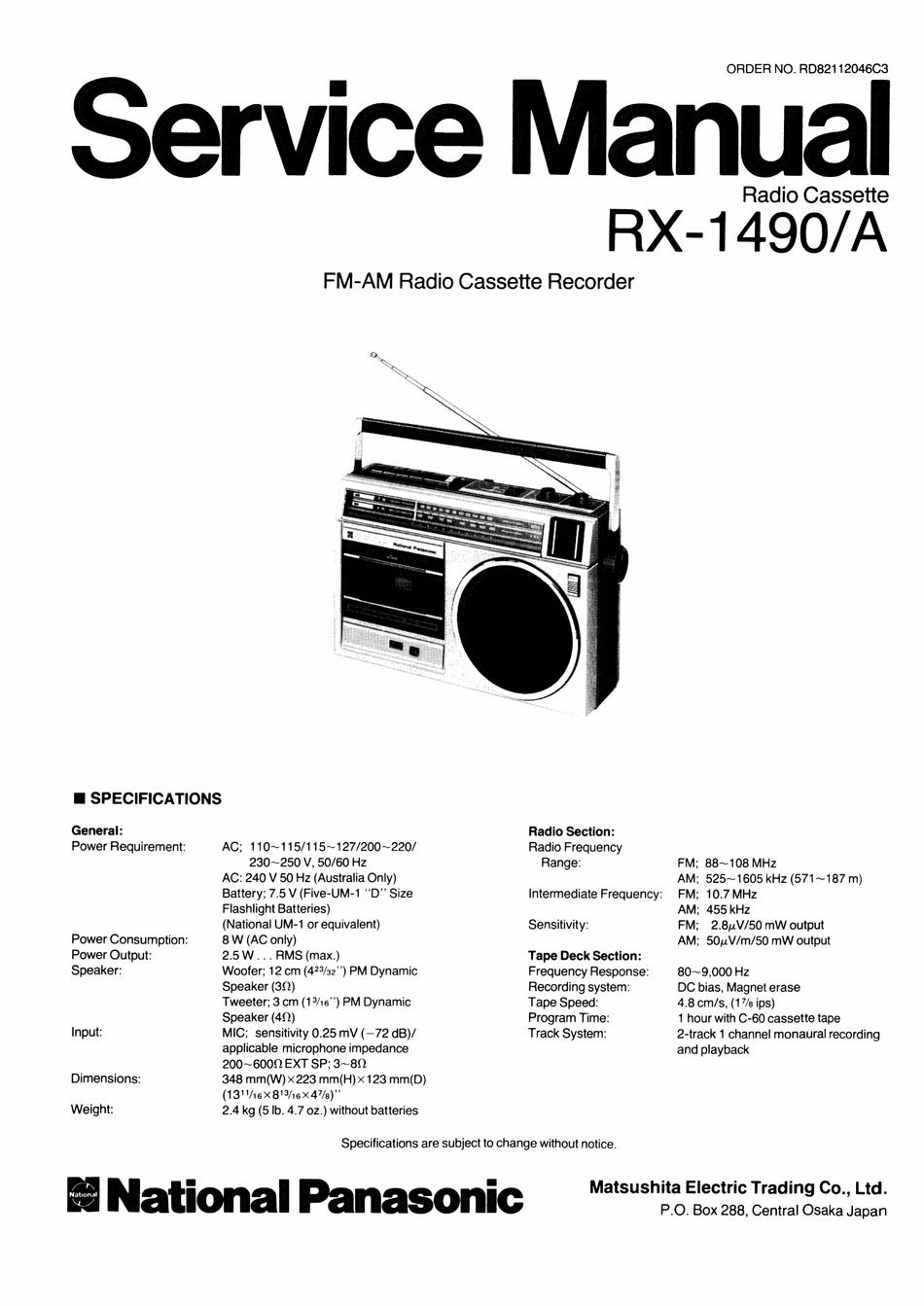

ORDER NO. RD82112046C3
Radio Cassette
RX-1490/A
FM-AM Radio Cassette Recorder
@ SPECIFICATIONS
General:
Power Requirement:
AC; 110~115/115~127/200~220/
230~250 V, 50/60 Hz
AC: 240 V 50 Hz (Australia Only)
Battery; 7.5 V (Five-UM-1 "'D"' Size
Flashlight Batteries)
(National UM-1 or equivalent)
Radio Section:
Radio Frequency
Range:
Intermediate Frequency:
Sensitivity:
FM; 88~108 MHz
AM; 525~1605 kHz (571~187 m)
FM; 10.7 MHz
AM; 455 kHz
FM;
2.8uV/50 mW output
Power Consumption:
8 W (AC only)
AM; 50nV/m/50 mW output
Power Output:
2.5W... RMS (max.)
Tape Deck Section:
Speaker:
Woofer; 12 cm (423/32'') PM Dynamic
Frequency Response:
80~9,000 Hz
Speaker (30)
Recording system:
DC bias, Magnet erase
Tweeter; 3. cm (13/16'') PM Dynamic
Tape Speed:
4.8cm/s, (17/s ips)
Speaker (420)
Program Time:
1 hour with C-60 cassette tape
Input:
MIC; sensitivity 0.25 mV (—72 dB)/
Track System:
2-track 1 channel monaural recording
applicable microphone impedance
and playback
200~6000 EXT SP; 3~82
Dimensions:
348 mm(W) x 223 mm(H) x 123 mm(D)
(131/16 813/16
47/s)"
Weight:
2.4 kg (5 Ib. 4.7 oz.) without batteries
Specifications are subject to change without notice.
National Panasonic
Matsushita Electric Trading Co., Ltd.
P.O. Box 288, Central Osaka Japan
