For Toyota 2024 Grand Highlander or Lexus TX Flush Roof Rails with mounting anchors
QUANTITY
PART INDEX
A
B1
B2
C
D
E
2
F
Cheetah Crossbars
INSTALLATION GUIDE

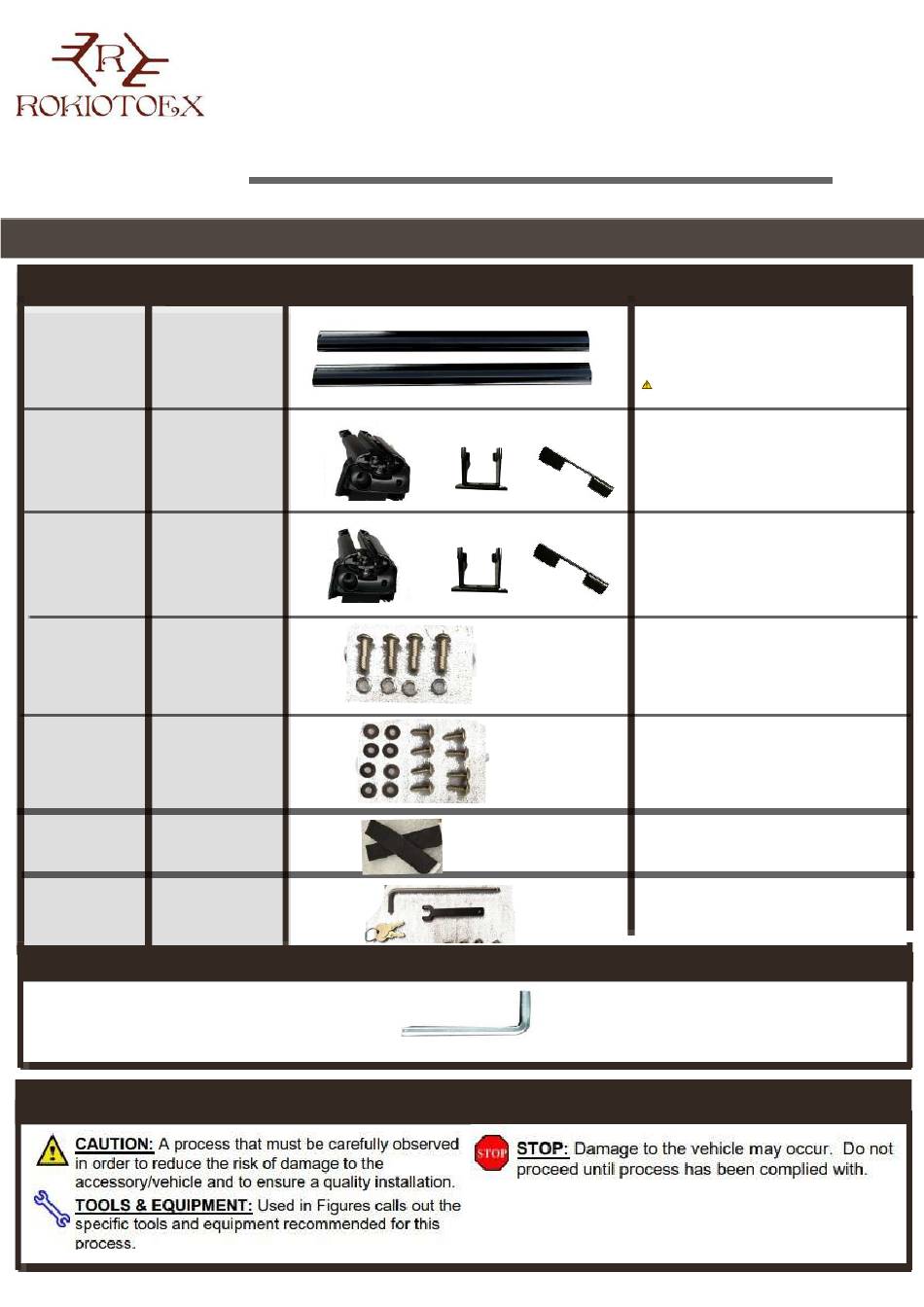

Parts and Accessories
2
2
1
1
1
4
PARTS
TOOLS INCLUDED
M5
LEGEND
Edition 202505
DESCRIPTION
FRONT & REARAluminum
Crossbars
the longer for front crossbar
Left Side Brackets
and U-Shape Plates
Slot Cover
Right Side Brackets
and U-Shape Plates (RH)
Slot Cover
Cover Fixer
M8x20mm Bolts and lock washers
M6 bolts and Flange Nuts
Sticky sealing Foam
(additional and optional spares)
Wrench, keys
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ROKIOTOEX Cheetah Crossbars
Summary of Contents for ROKIOTOEX Cheetah Crossbars
- Page 1 Cheetah Crossbars INSTALLATION GUIDE For Toyota 2024 Grand Highlander or Lexus TX Flush Roof Rails with mounting anchors Edition 202505 Parts and Accessories QUANTITY PART INDEX PARTS DESCRIPTION FRONT & REARAluminum Crossbars the longer for front crossbar Left Side Brackets...
- Page 2 Parts Assembling Identify the brackets and aluminum bars for their designated positions. the bar top side with a beam stays at the side facing forward FRONT BAR REAR BAR A. Longer bar at the front if not equal STEP 3 STEP 2 STEP 1 PLEASE NOTE:...
- Page 3 MOUNT Plates on roof rail insides Remove the plastic cover from the inside edge center of the cover with a pryer or a small flat screwdriver at each position Check the mounting hole and its next pole in each slot Identify the bracket and its cover plate against the mounting anchor and mark them down with different positions, based on the length and mounting side.
- Page 4 MOUNT CROSSBARS ON ROOF RAILS 1. Remove Covers on Roof rails by lifting it from back of the rail with a pryer or flat screw driver gentally. 2. Clean the slot ans ensure the M8 hole is clean and smooth 3.
- Page 5 MOUNT CROSSBARS ON ROOF RAILS 8. Sliding the aluminum bar between the left and right brackets by referring to the 1 2 3 4 5 measurement mark on the bracket top, until the bar is balanced on each side. 9. Ensure the rubber and the bracket back cover are well seated, then tighten the bolts of #3,#4, and #5 10.
- Page 6 FULL VIEW INSTALLATION DO NOT TAKE OFF BRACKETS FROM THE BAR BY FORCE. REFER TO THE DISASSEMBLY SECTION BELOW TO TAKE OFF THE BRACKET FROM THE BAR. Adjust the bracket position to the front or rear a bit to level the crossbar top surface at a horizontal level if A loud noise yields when driving at 60~80 KMH.
-
Page 7: Safety Notes
DISCLAIMER OF LIABILITY SUPPORT car rack systems and its accessories manufac- REPAIR OR REPLACEMENT OF A DEFECTIVE tured by ROKIOTOEX during the time that an Visit https://rockautoaccs.com for more original retail purchaser owns the product. PRODUCT OR THE ISSUANCE OF A REFUND...
