QUANTITY
PART INDEX
A
B1
B2
C
D
E
F

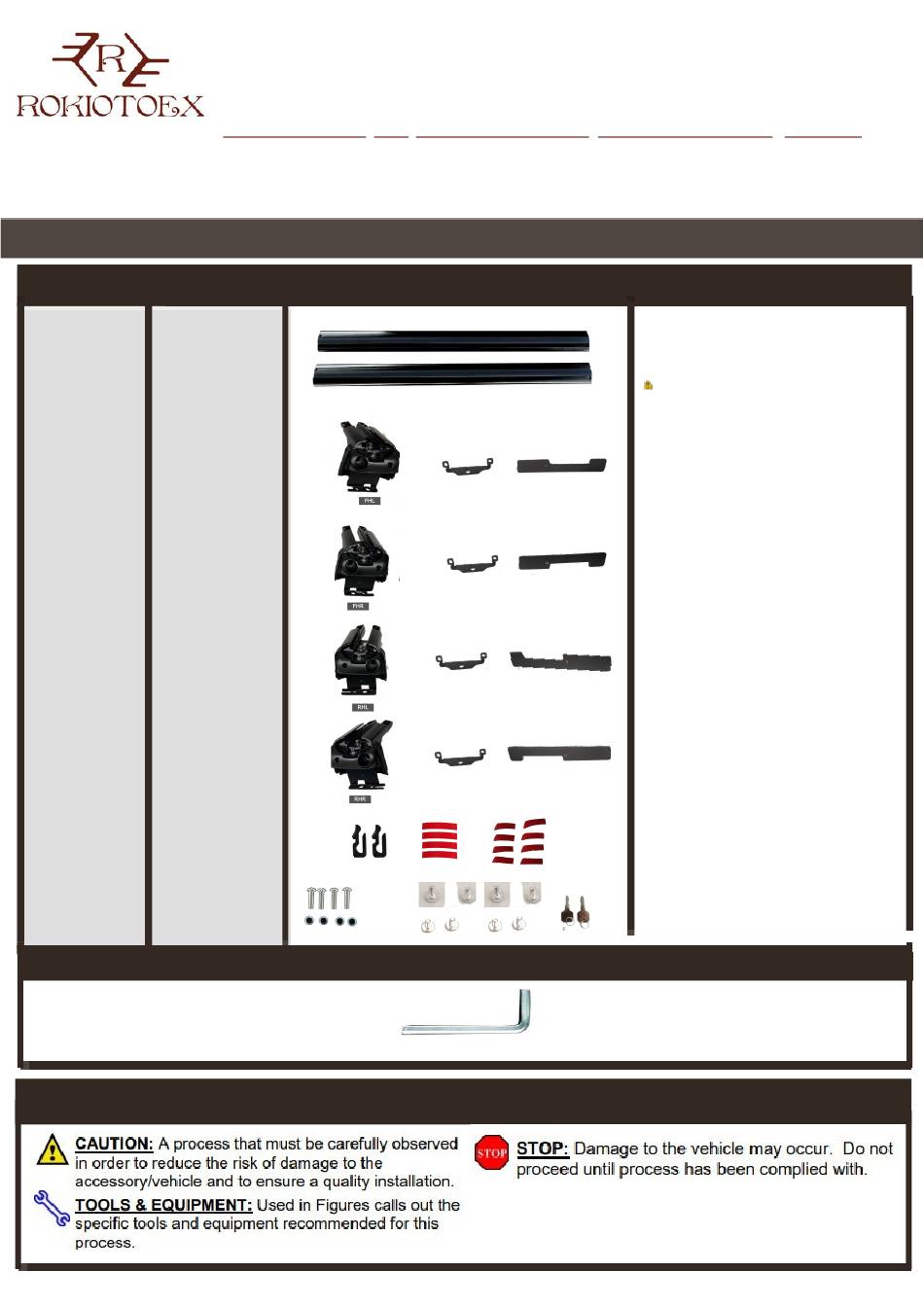

Cheetah Crossbars Installation Guide
For 2023 and beyond, Lexus RX Flush Roof Rails with mounting anchors
Parts and Accessories
2
1
1
1
1
4
4
PARTS
TOOLS INCLUDED
M5
LEGEND
Rev20240524
DESCRIPTION
Front and rear aluminum
crossbars, with the longer one
designated for the front
crossbar.
Front Driver/Left Side Bracket
and its anchor cover(FHL/LHF)
Front Passenger/Right Side Bracket
and its anchor cover(FHR/RHF)
Rear Driver/Left Side Bracket
and its anchor cover(RHL/LHR)
Rear Passenger/Right Side Brackek
and its anchor cover(RR/RHR)
Sticky sealing Foam
(additional and optional spares)
M8X25 Bolts and washers,
M6x4 Bolts.
M4x4 Bolts and Keys
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ROKIOTOEX Cheetah
Summary of Contents for ROKIOTOEX Cheetah
- Page 1 Cheetah Crossbars Installation Guide For 2023 and beyond, Lexus RX Flush Roof Rails with mounting anchors Rev20240524 Parts and Accessories QUANTITY PART INDEX PARTS DESCRIPTION Front and rear aluminum crossbars, with the longer one designated for the front crossbar. Front Driver/Left Side Bracket...
- Page 2 Parts Assembling Allocatethe brackets and aluminum bars to their respective designated positions. The bar top with a ridgeline remains positioned on the side facing forward. FRONT BAR REAR BAR A. Longer bar at the front if not equal STEP 3 STEP 2 STEP 1 PLEASE NOTE:...
- Page 3 MOUNT Plates on roof rail insides When removing the plastic cover, employ a pryer or a small flat screwdriver to delicately detach it at the specified locations. Subsequently, examine the mounting hole and the nearby post within each slot - FHL, FHR, RHL, RHR. Position the bracket and its cover plate in relation to the mounting anchor, considering their placement according to length and mounting side.
- Page 4 MOUNT CROSSBARS ON ROOF RAILS Loosen the bolt situated at the top of the bracket outward. 2. Remove the U-shaped plate from the bracket. 3. Mount the U-shaped plates using M8 bolts and washers onto the designated slots, ensuring alignment from the top. NOTE: Position the open side of the U-shaped plate outward.
- Page 5 MOUNT CROSSBARS ON ROOF RAILS 8. Sliding the aluminum bar between the left and right brackets, ensuring alignment 1 2 3 4 5 with the measurement mark on the top of each bracket, until the bar achieves balance on both sides. 9.
- Page 6 FULL VIEW INSTALLATION DO NOT TAKE OFF BRACKETS FROM THE BAR BY FORCE. REFER TO THE DISASSEMBLY SECTION BELOW TO TAKE OFF THE BRACKET FROM THE BAR. Adjust the bracket position to the front or rear a bit to level the crossbar top surface at a horizontal level if A loud noise yields when driving at 60~80 KMH.
-
Page 7: Safety Notes
DISCLAIMER OF LIABILITY SUPPORT car rack systems and its accessories manufac- REPAIR OR REPLACEMENT OF A DEFECTIVE tured by ROKIOTOEX during the time that an Visit https://rockautoaccs.com for more original retail purchaser owns the product. PRODUCT OR THE ISSUANCE OF A REFUND...
