ROKIOTOEX Coyote Crossbars Installation Manual

For all model flush roof rails with groove outside of 2022+ acura mdx

For All Model Flush Roof Rails with Groove Outside of 2022+ Acura MDX

QUANTITY

PART INDEX

INSTALLATION GUIDE

Parts and Accessories

TOOL INCLUDED

Coyote Crossbars

PARTS

TOOLS INCLUDED

LEGEND

DESCRIPTION

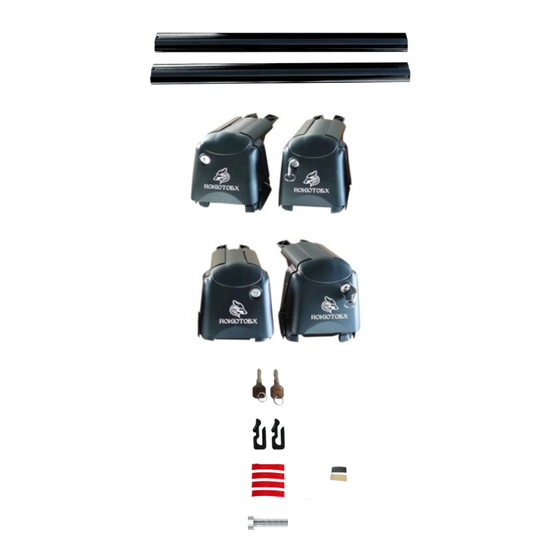

Crossbar - (FRONT & REAR)

Same length or the longer for front

crossbar if they are different

Driver/Left Side Brackets

(M6x40mm bolts, Rubber pads,

Metal clamps , Plastic Clip, Cover)

Passenger/Right Side Brackets

(M6x40mm bolts, Rubber pads,

Metal clamps, Plastic Clips, Cover )

Keys

Plastic Clips

(additional spares)

Sticky Foam

(Optional)

M6X12 Bolts

Table of Contents

Do you have a question about the Coyote Crossbars and is the answer not in the manual?

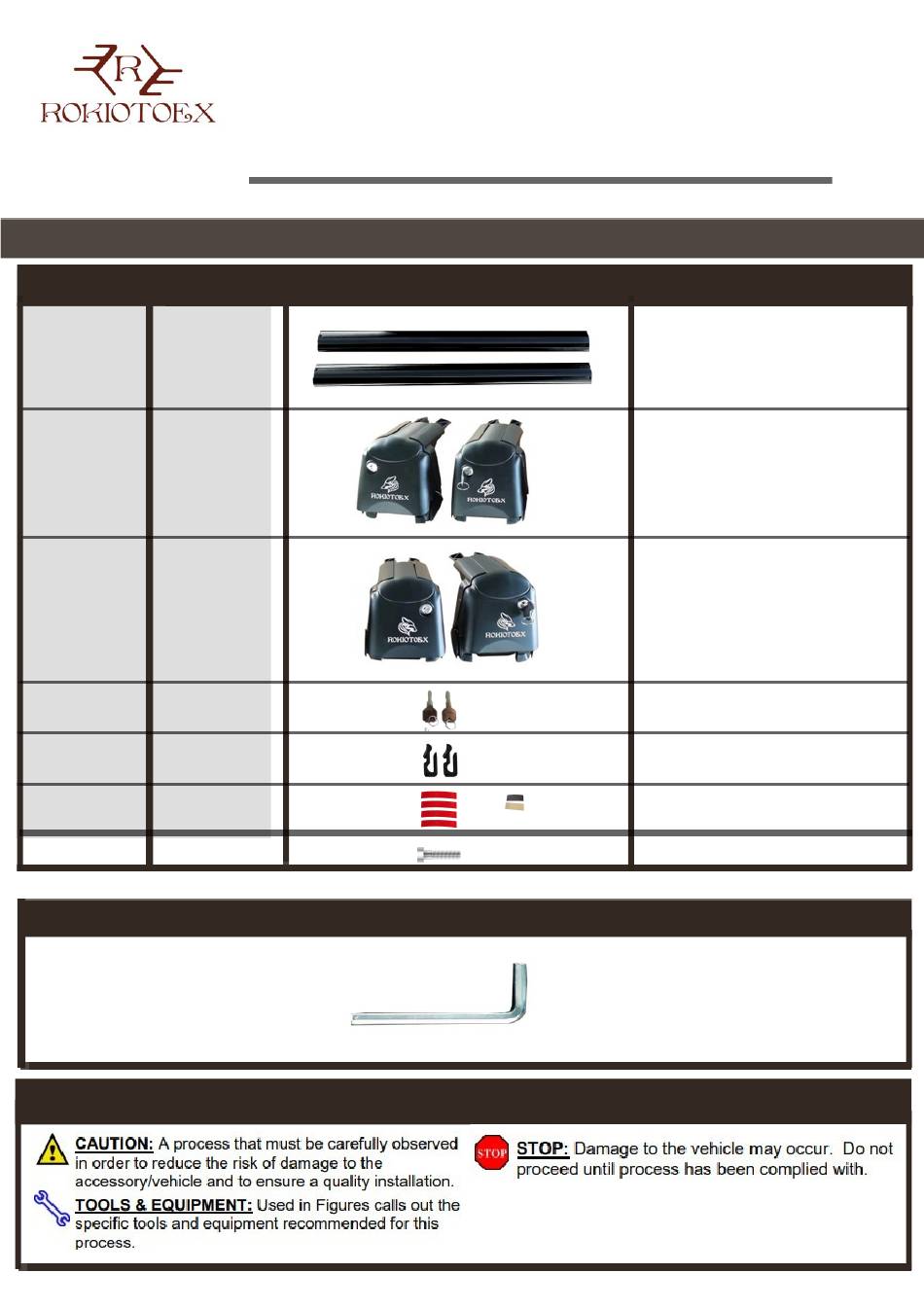

Page 1 Coyote Crossbars INSTALLATION GUIDE For All Model Flush Roof Rails with Groove Outside of 2022+ Acura MDX Parts and Accessories QUANTITY PART INDEX PARTS DESCRIPTION Crossbar - (FRONT & REAR) Same length or the longer for front crossbar if they are different...
Page 2 Parts Assembling Identify the brackets and aluminum bars for their designated positions. The lock hole stays at the side facing forward the bar top side with a beam stays at the side facing forward FRONT BAR REAR BAR A. Longer bar at the front if not equal STEP 3 STEP 2 STEP 1...
Page 3 MOUNT CROSSBARS ON ROOF RAILS 24" to 36" 1. Only Take off the plastic screw at the front of each mounting position of the roof rail inside. 2. Put the crossbars on roof rails at the mounting point. 3. Gently loosen the two bolts(#1,#2)to get enough space for clamping plate riding on the roof rails.
Page 4 FULL VIEW INSTALLATION DO NOT TAKE OFF BRACKETS FROM THE BAR BY FORCE. REFER TO THE DISASSEMBLY SECTION BELOW TO TAKE OFF THE BRACKET FROM THE BAR. Adjust the bracket position to the front or rear a bit to level the crossbar top surface at a horizontal level if A loud noise yields when driving at 60~80 KMH.
Page 5 DISCLAIMER OF LIABILITY SUPPORT car rack systems and its accessories manufac- REPAIR OR REPLACEMENT OF A DEFECTIVE tured by ROKIOTOEX during the time that an Visit https://rockautoaccs.com for more PRODUCT OR THE ISSUANCE OF A REFUND original retail purchaser owns the product.
