3-21
Set
the
CH
2 VOLTS/CM
control
to
.1
and
obtain
5
cm
of
deflection.

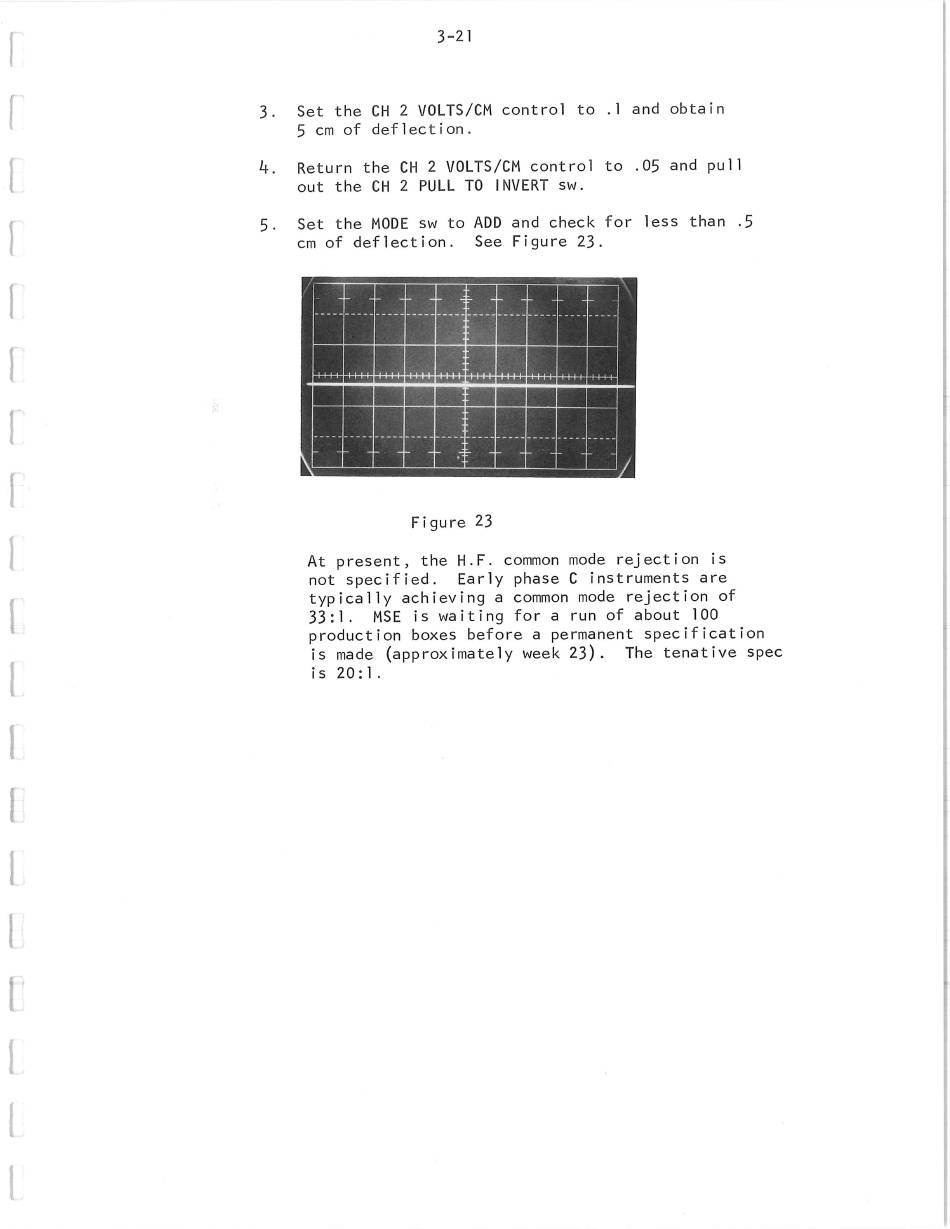

Figure
23
At
present,
the
H.F.
common
mode
rejection
is
not
specified.
Early
phase
C
instruments
are
typically
achieving
a common
mode
rejection
of
33:1.
MSE
is waiting
for
a
run
of
about
100
production
boxes
before
a permanent
specification
is made
(approximately
week 23).
The
tenative
spec
is
20:1.
