PDMOVIE 3D AIR User Manual

Solo 3d filming system
Hide thumbs

Advertisement

Table of Contents

SOLO 3D FILMING SYSTEM
3D AIR User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3D AIR and is the answer not in the manual?

Questions and answers

Related Manuals for PDMOVIE 3D AIR

Summary of Contents for PDMOVIE 3D AIR

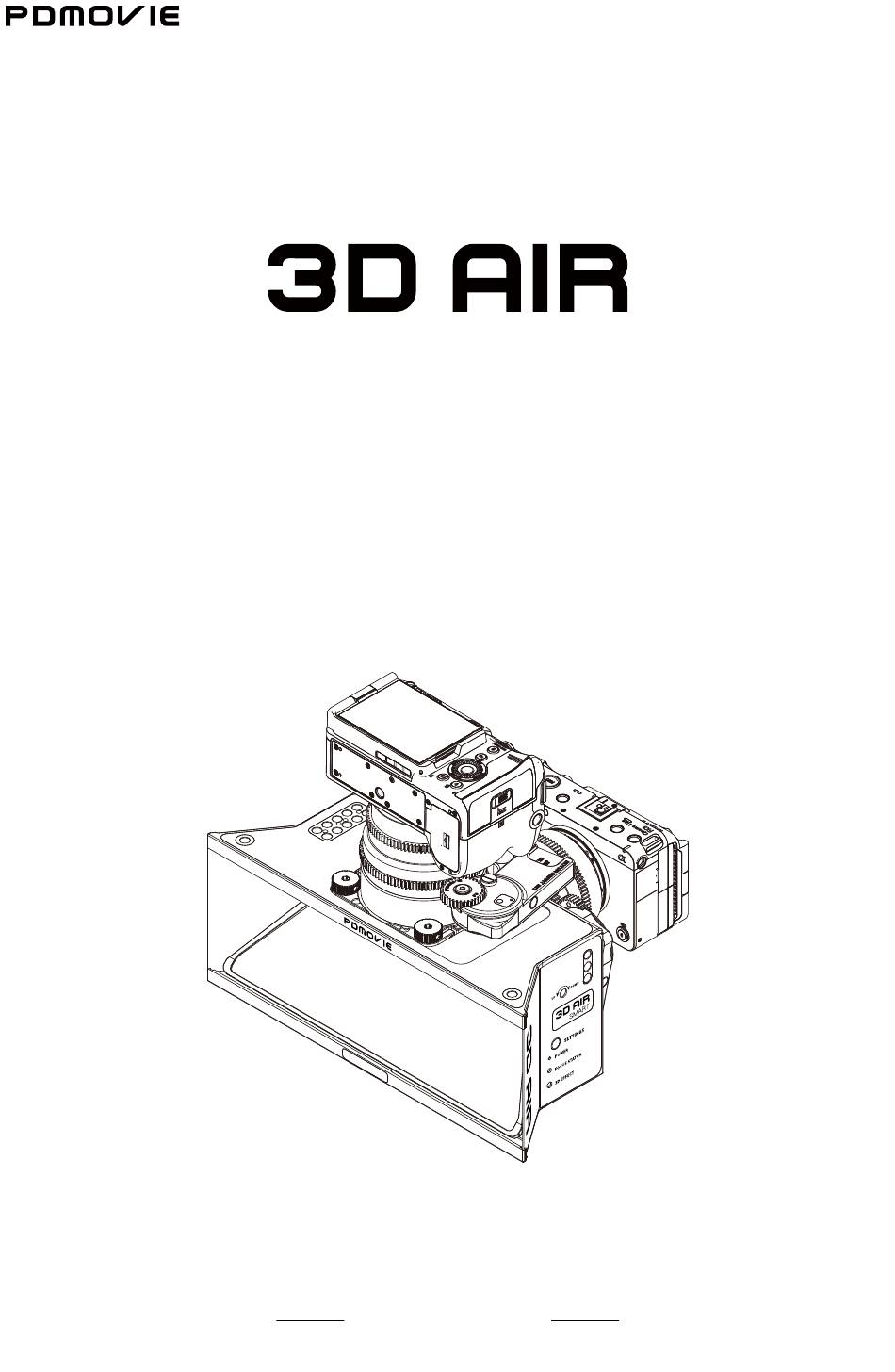

  • Page 1 SOLO 3D FILMING SYSTEM 3D AIR User Manual...
  • Page 2 If you need technical support or if the product has any problems,please contact us. Do not excessively tilt the 3D AIR body or perform 90-degree tilt shots during automatic operation, as this could trigger the protection mechanism and cause the system to stop working.
  • Page 3 Stickers Card PD-3DA-S PD-3DA-SM PD-3DA-SP PD-3DA-SPM Number Product Name 3D AIR 3D AIR SMART MINI*1 3D AIR SMART MINI*1 3D AIR SMART*1 3D AIR SMART*1 Bluetooth Motor-PD-BTMP-N Bluetooth Controller-PDL-TC-AFX Lens Bracket Lens Inner Ring Lens Flag Lens Bracket Fixing Nut...
  • Page 4 Product Function Port Front Back Lens Mounting Port Refractive Mirror Charging Indicator LiDAR USB-C Charging Port Bottom 3D AIR Battery Compartment Lens Mounting Port （Li-42BX3 Battery） 1/4 Screw Thread HDMI Data Cable Port Cable Prottection Cover Left Right Mirror Adjustment Hole...

  • Page 5: Installation Steps

    Before using 3D AIR, make sure to check all accessories and carefully read the installation, calibration procedures, and instruction functionality to avoid damage or improper use of the product due to incorrect operation.
  • Page 6 4.HDMI Cable Connections （Fig. 7） The bottom of the 3D AIR has 3 Micro HDMI ports corresponding to the L position signal input, R position signal input, and composite signal output to the monitor. First, connect the HDMI cables to the L position, R position, and composite signal output.

  • Page 7: Connecting The Motors

    3D AIR. 3. Place the 3D AIR at a distance of 1.5 meters from the calibration card. First, manually adjust the R camera lens focus to make the blue image clear, then adjust the L camera lens focus to match the R camera.

  • Page 8: Synchronization Setup

    Install the motors and tighten. connecting to 3D AIR. 9.Synchronization Setup 1.Once the 3D AIR is confirmed to be connected to both the controller and the motors, calibrate the lens stroke. You can calibrate both the optical axis and the lens stroke of the L and R cameras by pressing and holding the Press the controller button briefly,...
  • Page 9 Rotate the controller to move the lens to its closest focusing distance. Align the 3D AIR horizontally with the calibration card, move the 3D AIR back and forth to ensure the calibration card’ s focus is sharp in both the left (L) and right (R) camera views.

  • Page 10: Power Supply

    1. Regarding the first calibration point: If the closest focus distance of the lens is too short and the 3D AIR body cannot get closer, use the position 10cm away from the calibration card at the front of the 3D AIR body as the first calibration point.
  • Page 11 （Fig. 39） （Fig. 40） 12.Button Commands and Indicator Light Status Table 3D AIR Indicator Lights （*Please refer to the indicator light status description in Section 13） POWER INDICATOR FOCUS INDICATOR 3D EFFECT 3D SYNTHESIS...
  • Page 12 13.Indicator Light Status Description 3D AIR Body Description Status Indicator 3D AIR Power Indicator Light: This indicator light shows the current remaining power level, Bluetooth connection status, and the speed level of the optical axis. The following colors indicate the remaining power level: White = 100%‒75% Green = 75%‒50% Yellow = 50%‒25%...
  • Page 13 Stereo Status Indicator light： The stereo status indicator light shows the current stereo effect and the automatic/manual control mode. Strongest stereo effect = Indicator light shows red Stereo Balanced effect = Indicator light shows green Effect Comfortable effect = Indicator light shows white Manual synchronization of stereo effect and focus = Indicator light flashes slowly.

  • Page 14: Command Instructions

    Press and hold for 2 seconds / for 5 seconds to power off. Press and hold for 5 seconds In 3D AIR power-on state, press and hold for 3 seconds to Press and hold for 3 seconds automatically calibrate the optical axis and motor stroke.
  • Page 15 Motor Button Instructions Press Count Function Description Automatically calibrate lens stroke. Long press for 5 seconds Clear calibrated stroke/ Short press 4 times Restore stroke after power-off. Motor Cycle through three motor speeds Short press 5 times SETTING Fast / Medium / Slow. Button Cycle through autofocus channels Short press 6 times...

  • Page 16: Bluetooth Pairing And Connection

    Bluetooth to the 3D AIR. 3.Power on both motors, then press the 3D AIR SETTINGS button three times briefly, followed by a long press on the fourth time for three seconds to reconnect the motor's Bluetooth to the 3D AIR.
  • Page 17 (90% purity or above). Finally, use a lens cleaning cloth for a final wipe. When not using the 3D AIR, store it in a dehumidifying box to prevent electronic component aging and dust or water stains from accumulating on the mirror.
  • Page 18 PD-3DA-S / PD-3DA-SP 2025...

This manual is also suitable for:

Pd-3da-sPd-3da-sp
