41357G/61357G SYNCHRONIZED DIGITAL CLOCK
Installation Instructions
COUNT UP/DOWN CAPABILITY
Pair your 41357G or 61357G with out Digital Timer (part# CBPLATEKIT) to provide precise count up or count
down event timing.
41357G [(HH:MM), (99:59)]
61357G [(HH:MM:SS), (99:59:59)]
Sync Count UpDown
START PAUSE
SET HR SET MIN
RESET
150ft max to
closest clock
Sync Count UpDown
START PAUSE
SET HR SET MIN
RESET
MOUNTING THE CLOCK
Install the mounting bracket using the mounting screws and anchor provided. "TOP" is engraved to
1
ensure bracket is oriented correctly and the tabs face upward.
Push the terminal onto the mounting bracket aligning four tabs on bracket with the matching slots
2
on the back of the clock.
Slide clock downward until locking tab clicks into place. When properly mounted, clock cannot be
3
removed from the bracket without using the included wall bracket release key to disengage locking
tab.
Cable can now be rooted through the channel at the base of the clock.
4
I2048 Rev. K
Page 6 of 8
888.479.7264 • pyramidtimesystems.com

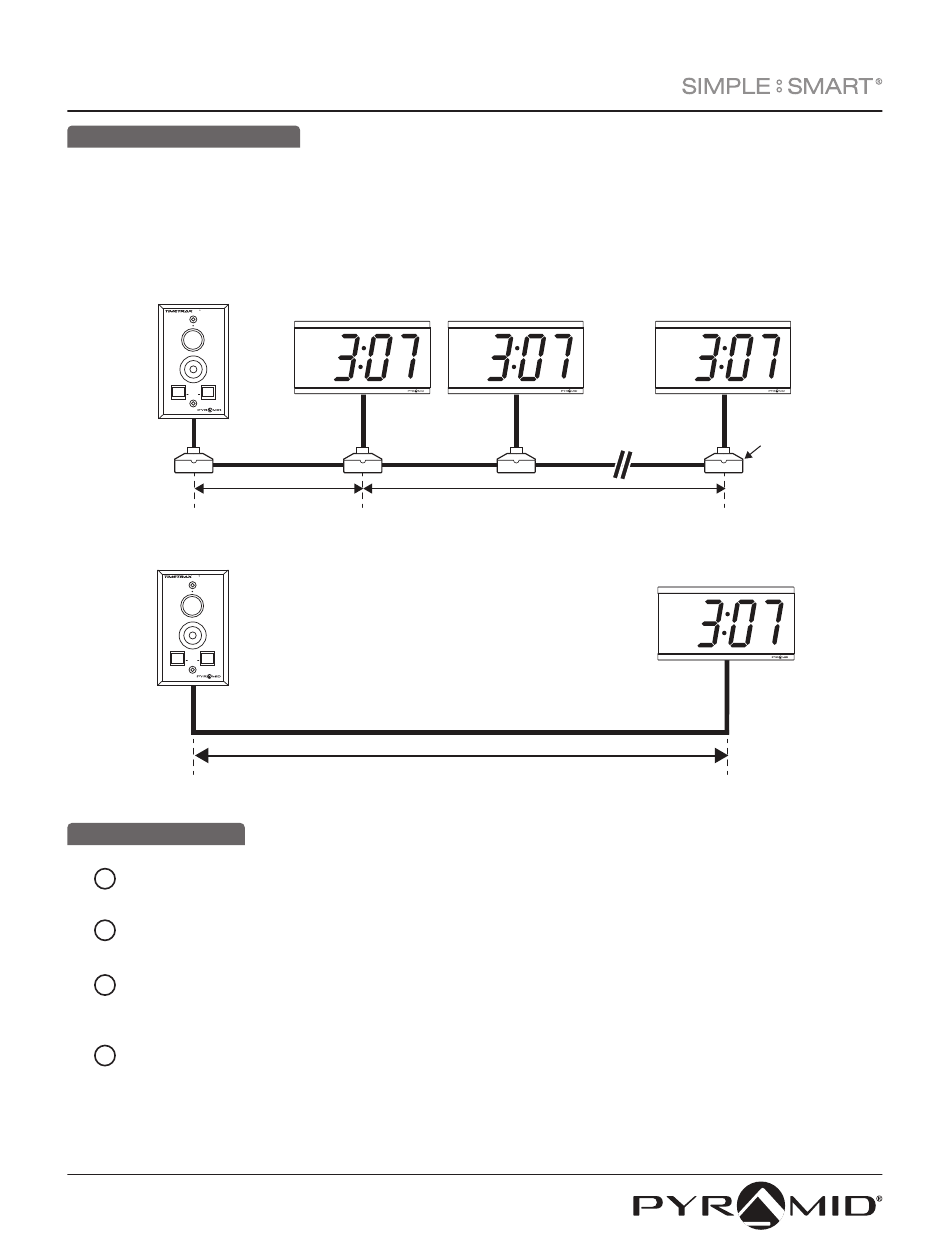

1st Clock 2nd Clock
350ft maximum distance
350ft maximum distance
7th Clock
41270
Digital Clock
