41357G/61357G SYNCHRONIZED DIGITAL CLOCK
Installation Instructions

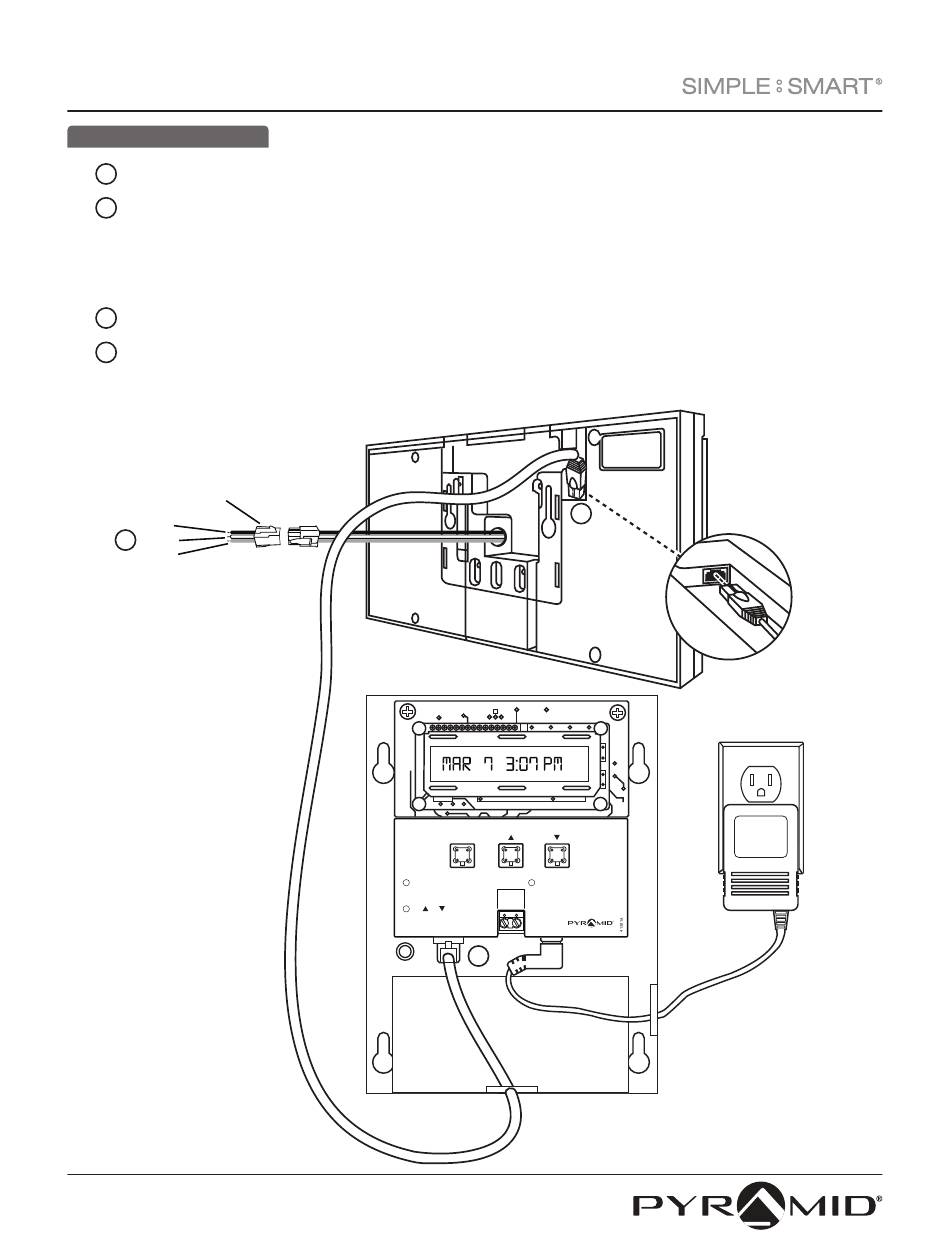

CLOCK CONNECTION
Using RJ45 BCD Cable, connect one end of the cable to the clock port.
1
Connect the other end of the RJ45 cable to serial port of 4000/5000 Series Time Clock
2
(4000/4000HD, 5000/5000HD), to BCD out port of the Elite Series Time Clock System (PSDLAUBKK/
TTPROXEK/TTELITEEK), to AUX port of the RF Wireless Transmitter (9T1WI/S9DWXSLAUB, 42337,
S9DSXOLAUB) or to the 7000 port labeled "DATA" and route cable through cable channel located on
the right side or bottom of 7000.
Connect power 105-240V AC 50/60Hz to digital clock (must be installed by licensed electrician).
3
Mount and install wall clocks according to instructions included with clock.
4
Wire Harness
(included)
Black
3
White
Green
I2048 Rev. K
Page 2 of 8
888.479.7264 • pyramidtimesystems.com
41357G/61357G
1
SELECT
SET-UP INSTRUCTIONS
To change or set feature, After displayed feature is
1 3
press SELECT until desired changed, press SELECT to
feature is displayed. 24 VDC
change other feature &
+ -
return to main display.
Use or to change
2
feature.
DATA POWER
pyramidtimesystem.com
2
7000
