Sharp SH-920 Instruction Manual page 16

Mounting the table
3.

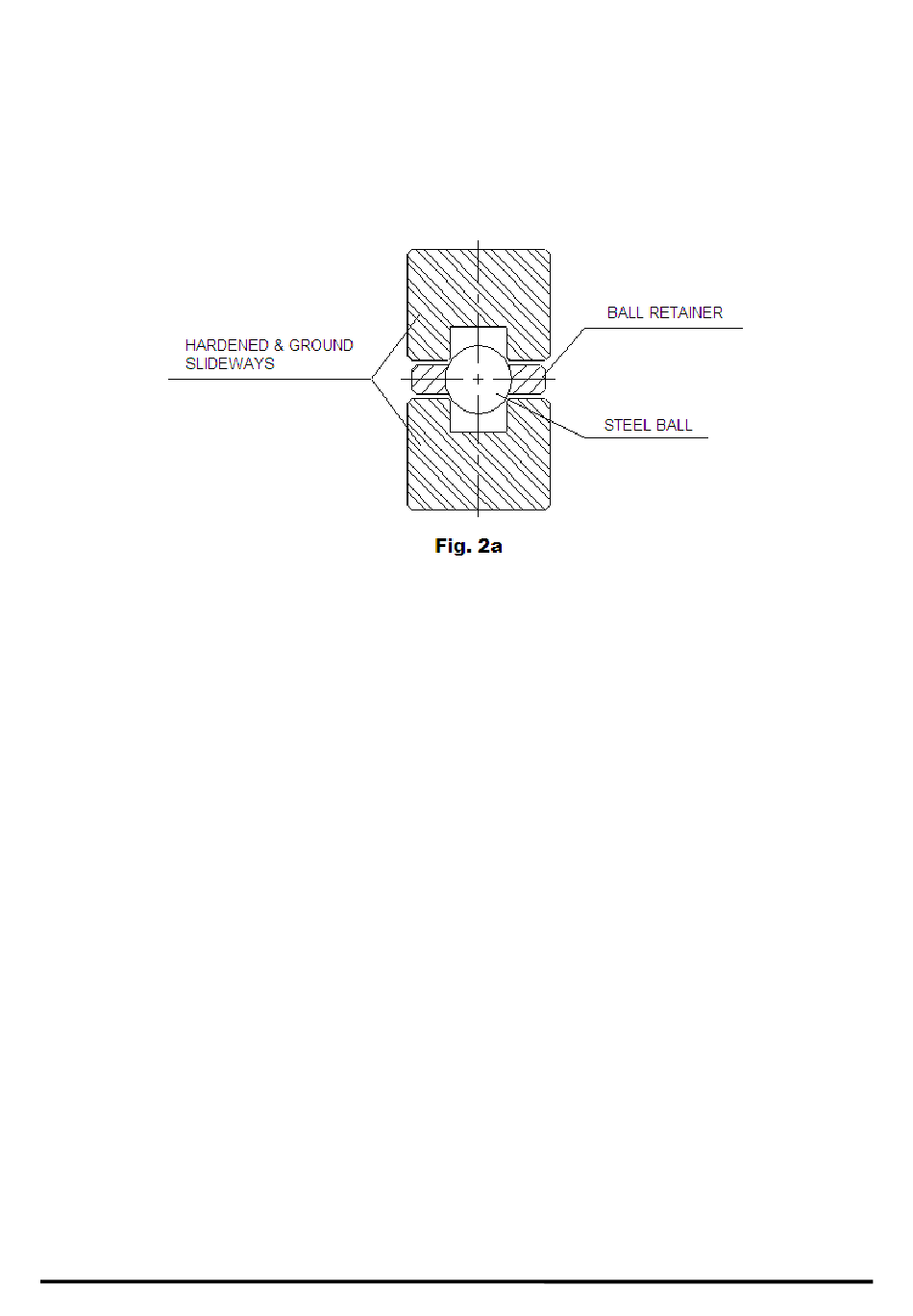

3.1 The following procedures are applicable to grinders with ball-rolling
slideways. (Fig. 2a)
3.2 To protect the hardened and ground ball rolling slideways, the table is
floated from steel balls when machine in transportation.
3.3 When the machine is placed in position, mounting the table as follows:
3.3.1 Wind the wire rope on the "drum" as shown in Fig. 2b, then tight and fix
it temporarily.
3.3.2 Put steel balls and retainers on the slideways (in Fig. 2a), with the
longer one at the rear and the shorter one in the front close to the
operator.
3.3.3 Have 2 pieces of wood on both ends of the saddle slide as shown in the
below picture.
P.16 OF 70
