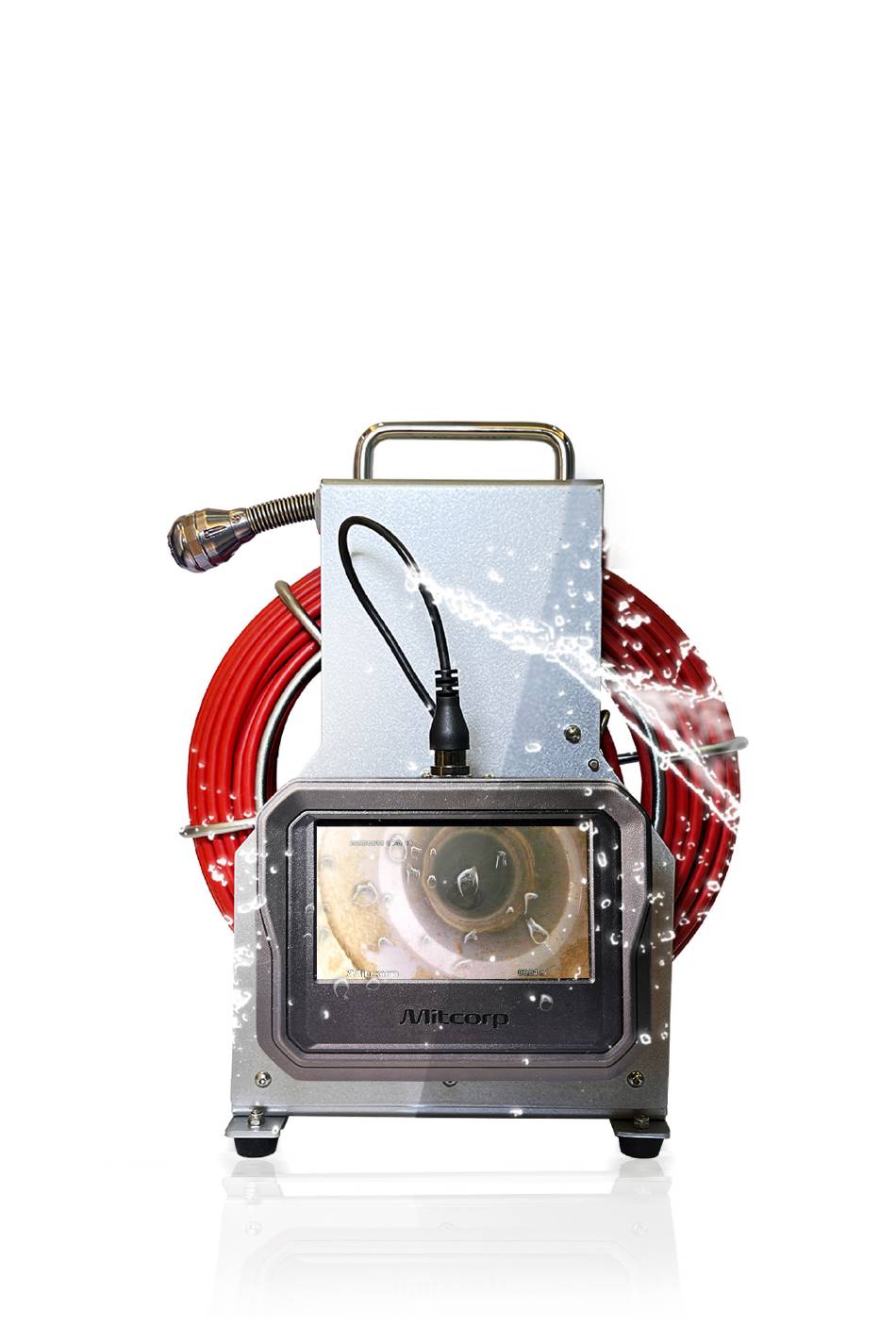

- Page 1 Industrial Videoscope PRM2830...
-
Page 2: Table Of Contents
Table of contents Page Safety & Cautions ...................... Getting started ......................[Part I ] Product Outlook ..................PRM2830 ....................[Part II ] Main function ..................... Live view screen UI ................Live view screen overlays ..............Function buttons ................... Album ...................... -
Page 3: Safety & Cautions
Safety & Cautions CE NOTICE PRM2830 is in conformance with the following standards: • 2014 / 30 / EU Electromagnetic Compatibility Directive FCC NOTICE FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 4: Rohs Notice
RoHS NOTICE PRM2830 is in conformance with the requirements of the European law on the Restriction of Hazardous Substances (RoHS) directive. This means that our product is both lead-free and without the hazardous substances either in the manufacturing process or in the final product. -
Page 5: Getting Started
If the battery status icon is showing a low, or if the monitor will not power up, connect the PRM2830 to an AC power source using the supplied AC adapter / charger. If the screen freezes, press the rest button for 2 seconds. Long press the power button to power on the PRM2830 after the reset. -
Page 6: [Part I ] Product Outlook
[Part I ] Product Outlook • 1.1 X600 Power Microphone Magnetic tilt stand Reset Micro SD port Micro HDMI port USB-C port - 5 -... - Page 7 • Hinge dock: The hinge performs attachable bolt nut for holding the screen unit. It allows pan and tilt operation to provide user a best eye view angle. Lie down / lift-up mode. The maximum height is restricted by the cable angle. Right / left rotation dock.
- Page 8 • Maintain & Care There is a USB type-C inside the screen unit connector. In some cases user may need the re-connect it. Be sure to align the white dot of side, push and screw tightly and check the image signal runs properly. The camera tip holder.
-
Page 9: [Part Ii ] Main Function
[Part II ] Main function • 2.1 Live View screen UI • 2.2 Live view Screen Overlays - 8 -... -
Page 10: Function Buttons
• 2.3 Function Buttons List as follows: Items Button Description Save the live-view picture in the SD card. Snapshot Snapshot can be done during recording and video playback. Recording Record videos in the SD card. Access the SD card to review images and videos been Album saved. -
Page 11: Album
• 2.4 Album - Photo album: The system list latest file in the order of right-down. When there are different date fields in the same page, the first file will be marked a yellow date code. Button Items Description Back Go back to live view. - Page 12 - Single photo view Compare function: To compare a stored image (target flaw or golden sample) with the (*1) live view on a split screen. In album mode, tap the icon then select an image then the screen will split as showing the stored image on the right and the live view on the left. 1.
- Page 13 - Video album: The system list latest file in the order of right-down. When there are different date files in the same page, the first file will be marked a yellow date code. - Single video playback Button Items Description Start to play back the video.
-
Page 14: Album - Photo Annotation Function
• 2.5 Album - Photo annotation function The PRM2830 system allows user add maximum 10 notes on a photo. Each note can key in maximum 24 characters. The edit steps as follow: Tap the comment icon and type a comment using the touch-screen keyboard that appears;... -
Page 15: [Part Iii ] Setting Menu
[Part III ] Setting menu • 3.1 MAIN MENU Including 14 setting items in 2 pages. REGULATORY - 14 -... -
Page 16: Info
• 3.2 INFO. Include firmware information. - Current hardware and firmware version. Firmware upgrade: When there is a new version firmware be suggested, save the file (.BRN file format) in the SD card root dictionary. 1. Tap the “>” button up-right the screen. 2. - Page 17 3. The system will automatically shut down when the upgrade is done. Reboot the system then check if new version is properly installed. - 16 -...
-
Page 18: Session
• 3.3 SESSION PRM2830 provides custom build photo / video storage folder under SESSION. When a new SD card is installed, the default folder-MEDIA will be built. The edit steps as belows: Add & Edit a new folder Jump to TAG under... -
Page 19: Tag
• 3.4 TAG PRM2830 provides custom build photo / video storage folder under TAG. When a new SD card is installed, the default folder-MEDIA will be built. The edit steps as belows: Switch on / off the tags Add new TAG... - Page 20 <Note> SESSION and TAG custom setting are saved in system internal memory. All edit mention above need to be done on PRM2830. You cannot edit the SD card via any other PCs to get the same result. When you replace another SD card, the custom SESSION and TAG will be automatically load on.
-
Page 21: Watermark
• 3.5 WATERMARK - On / off switch for timestamp and watermark overlays on snapshot. - Timestamp and watermark position are adjustable to 4 corners of the photos. - The watermark logo can be replaced a follow steps: 1 Save logo file in SD card on root directory. File format: 160*160 resolution;... -
Page 22: Date / Time
• 3.6 DATE / TIME • 3.7 REPEAT RECORDING The system provides 4 modes of repeat recording length. When disable this function, the system will set as 20 minutes none repeat recording. - 21 -... -
Page 23: Auto Power Off
• 3.8 AUTO POWER OFF 4 modes of auto power off settings. • 3.9 LANGUAGE Support 28 languages. - 22 -... -
Page 24: Usb
• 3.10 USB PORT - When the USB port is connected to the PC, select the desired output: (1) SD card reader (2) Camera. (1) SD card reader: Please select READER. - 23 -... - Page 25 The live image can be viewed on a video monitor or connected to a PC show the inspection via online meeting app for real-time sharing. Connect the PRM2830 to PC and log on the online meeting app, select the PRM2830 as the camera from setting. The PC will share the same inspection view on the PRM2830.
-
Page 26: Sd Card
• 3.11 SD CARD Show the SD card storage status, delete, and format functions. • 3.12 MICROPHONE Switch on / off voice recording while recording videos. - 25 -... -
Page 27: Image
• 3.13 IMAGE The system provides 3 fine tune parameters and DEFAULT function. • 3.14 DISTANCE - 26 -... -
Page 28: Micro Hdmi Port
• 3.15 MICRO HDMI PORT For viewing images from an external monitor. Connect PRM2830 on the micro HDMI port with supplied HDMI cable to an external monitor. Switch on PRM2830 then switch on the external monitor. • 3.16 REGULATORY Here reveals the safety compliance of this product. -
Page 29: Specifications
SPECIFICATIONS PRM2830 Model X600 Monitor Dimension 161.93 (mm) * 127.93 (mm) * 46 (mm) Weight 705g Display 5” Touchscreen 800*480 pixels Power supply Rechargeable Li-battery Video output Micro HDMI Working time Approximately 3.5 hours of operation Charging time Approximately 2.5 hours... -
Page 30: Accessories
ACCESSORIES DC Adaptor Ø50 mm metal ring (Optional) USB cable Ø100 mm brush (Optional) HDMI cable Carry case Ø150 mm brush Micro SD card (Optional) - 29 -... - Page 32 MAY.2024...
