Summary of Contents for Mitcorp X600
- Page 1 Industrial Videoscope X600...
-
Page 2: Table Of Contents
Table of contents Page Safety & Cautions ...................... Getting started ......................[Part I ] Product Outlook ..................X600 ........................ [Part II ] Main function ..................... Live view screen UI ................Live view screen overlays ..............Function buttons ................... Album ...................... -
Page 3: Safety & Cautions
Safety & Cautions CE NOTICE X600 is in conformance with the following standards: • 2014/30/EU Electromagnetic Compatibility Directive FCC NOTICE FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. - Page 4 RoHS NOTICE X600 is in conformance with the requirements of the European law on the Restriction of Hazardous Substances (RoHS) directive. This means that our product is both lead-free and without the hazardous substances either in the manufacturing process or in the final product.
-
Page 5: Getting Started
If the battery status icon is showing a low, or if the monitor will not power up, connect the X600 to an AC power source using the supplied AC adapter/charger. If the screen freezes, press the rest button for 2 seconds. Long press the power button to power on the X600 after the reset. -
Page 6: [Part I ] Product Outlook

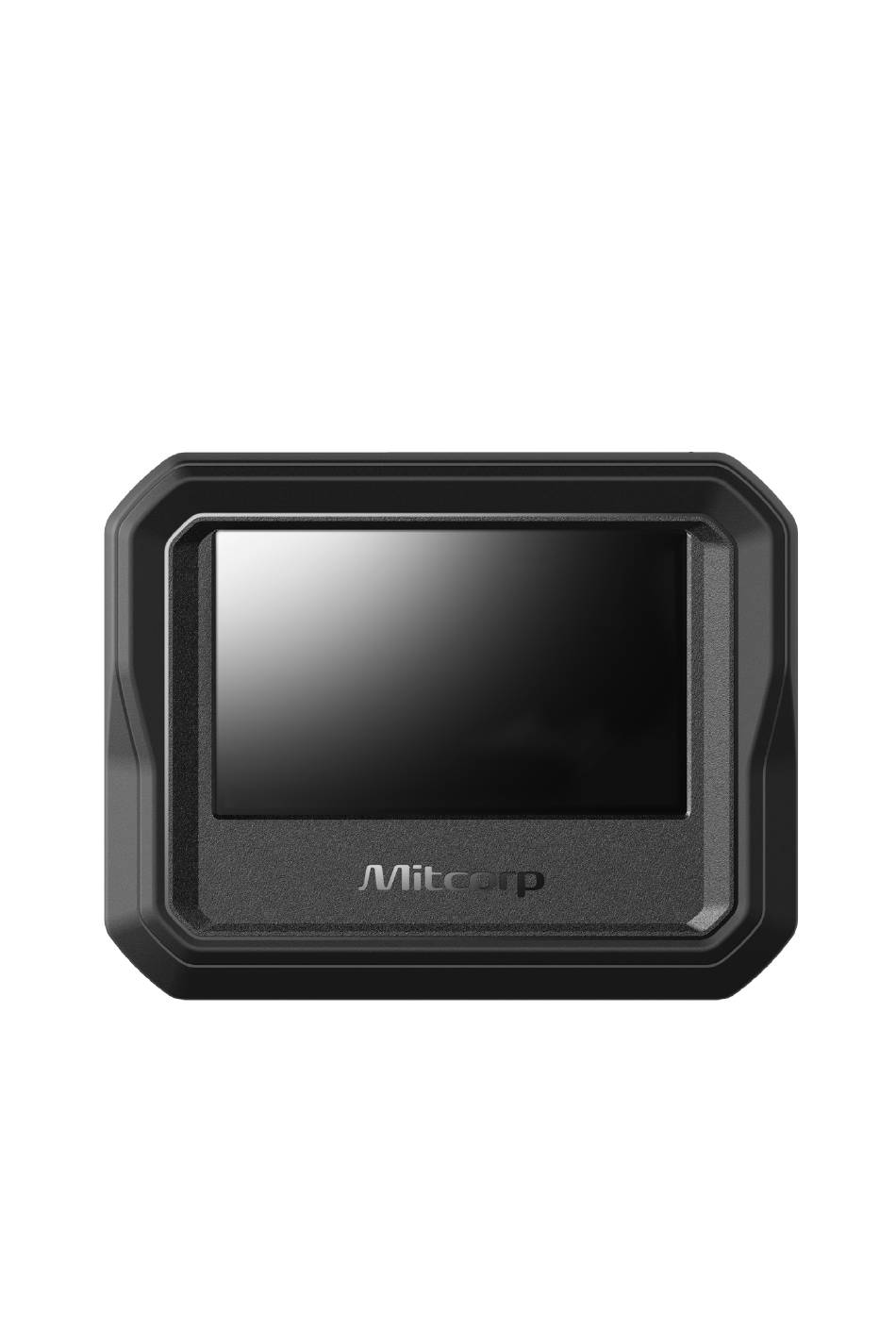

[Part I ] Product Outlook • 1.1 X600 Power Microphone Magnetic tilt stand Reset Micro SD port Micro HDMI port USB-C port - 5 -... -
Page 7: [Part Ii ] Main Function
[Part II ] Main function • 2.1 Live View screen UI • 2.2 Live view Screen Overlays - 6 -... -
Page 8: Function Buttons
• 2.3 Function Buttons List as follows: Items Button Description Save the live-view picture in the SD card. Snapshot Snapshot can be done during recording and video playback. Recording Record videos in the SD card. Access the SD card to review images and videos been Album saved. -
Page 9: Album
• 2.4 Album - Photo album: The system list latest file in the order of right-down. When there are different date fields in the same page, the first file will be marked a yellow date code. Button Items Description Back Go back to live view. - Page 10 - Single photo view Compare function: To compare a stored image (target flaw or golden sample) with the (*1) live view on a split screen. In album mode, tap the icon then select an image then the screen will split as showing the stored image on the right and the live view on the left. 1.
- Page 11 - Video album: The system list latest file in the order of right-down. When there are different date files in the same page, the first file will be marked a yellow date code. - Single video playback Button Items Description Start to play back the video.
-
Page 12: Album - Photo Annotation Function
• 2.5 Album - Photo annotation function The X600 system allows user add maximum 10 notes on a photo. Each note can key in maximum 24 characters. The edit steps as follow: Tap the comment icon and type a comment using the touch-screen keyboard that appears;... -
Page 13: [Part Iii ] Setting Menu
[Part III ] Setting menu • 3.1 MAIN MENU Including 13 setting items in 2 pages. REGULATORY - 12 -... -
Page 14: Info
• 3.2 INFO. Include firmware information. - Current hardware and firmware version. Firmware upgrade: When there is a new version firmware be suggested, save the file (.BRN file format) in the SD card root dictionary. Low battery status(below 1/3) may cause upgrade process fail. We strongly recommend to plug the charger and cable on during this operation. - Page 15 3. The system will automatically shut down when the upgrade is done. Reboot the system then check if new version is properly installed - 14 -...
-
Page 16: Session
• 3.3 SESSION X600 provides custom build photo/video storage folder under SESSION. When a new SD card is installed, the default folder-MEDIA will be built. The edit steps as belows: Add & Edit a new folder Jump to TAG under... -
Page 17: Tag
• 3.4 TAG X600 provides custom build photo/video storage folder under TAG. When a new SD card is installed, the default folder-MEDIA will be built. The edit steps as belows: Switch on/off the tags Add new TAG Vertical display tags... - Page 18 <Note> SESSION and TAG custom setting are saved in system internal memory. All edit mention above need to be done on X600. You cannot edit the SD card via any other PCs to get the same result. When you replace another SD card, the custom SESSION and TAG will be automatically load on.
-
Page 19: Watermark
• 3.5 WATERMARK - On/off switch for timestamp and watermark overlays on snapshot. - Timestamp and Watermark position are adjustable to 4 corners of the photos. - The watermark logo can be replaced a follow steps: 1 Save logo file in SD card on root directory. File format: 160*160 resolution;... -
Page 20: Date / Time
• 3.6 DATE / TIME • 3.7 REPEAT RECORDING The system provides 4 modes of repeat recording length. When disable this function, the system will set as 20 minutes none repeat recording. - 19 -... -
Page 21: Auto Power Off
• 3.8 AUTO POWER OFF 4 modes of auto power off settings. • 3.9 LANGUAGE Support 28 languages. - 20 -... -
Page 22: Usb
Stored media can be downloaded to a PC using USB-C port. The X600 will be recognized by the PC as an external storage drive, a new drive will appear in file explorer on the PC. You can simply drag the files out from the X600. Contact Mitcorp for the software. - Page 23 Connect the X600 to PC and log on the online meeting app, select the X600 as the camera from setting. The PC will share the same inspection view on the X600.
- Page 24 OPERATION Instant mode 1. Snapshot - Click button or from the application window, or press the Snap space bar button on the console to take a photo. 2. Video record - Click button or key on the application window to start recording Ctrl video.
- Page 25 Browse Mode Press 2nd TAB on the screen or press any picture/video on the preview window. The Browse mode will not function if no pictures/videos in the folder. Mirror Click key to flip the image horizontally. Ctrl Rotate Click key to rotate image counter-clockwise 90° Screenshot on video You can click key anytime during video playing to get still image...
- Page 26 * Back to instant mode, click Charging When connected to PC the X600 also charges its battery. For quicker charging connect the X600 to an AC power source using the supplied AC adapter and USB cable. - 25 -...
-
Page 27: Sd Card
• 3.11 SD CARD Show the SD card storage status, delete, and format functions. • 3.12 MICROPHONE Switch on/off voice recording while recording videos. - 26 -... -
Page 28: Image
• 3.13 IMAGE The system provides 3 fine tune parameters and DEFAULT function. - 27 -... -
Page 29: White Balance
• 3.14 WHITE BALANCE To adjust colors to match the color of the light source. Back to the default To adjust manually - CALIBRATION: When the environment light/reflection condition leads the bad colored image, follow the instructions and try to calibrate. - Point the camera head toward a white paper and full the square. -
Page 30: Micro Hdmi Port
- CUSTOM: To adjust manually. • 3.15 MICRO HDMI PORT For viewing images from an external monitor. Connect X600 on the micro HDMI port with supplied HDMI cable to an external monitor. Switch on X600 then switch on the external monitor. - 29 -... -
Page 31: Regulatory
• 3.16 REGULATORY Here reveals the safety compliance of this product. - 30 -... -
Page 32: Specifications
SPECIFICATIONS X600 Model X600 Dimension 161.93 (mm) x 127.93 (mm) x 46 (mm) Weight 705g Display 5” Touchscreen 800x480 pixels Power supply Rechargeable Li-battery Video output Micro HDMI Data transfer / Charging USB-C DC Power adapter 5V/3A Phone Jack Built-in microphone... - Page 36 NOV.2023...
