Summary of Contents for Mitcorp MX500

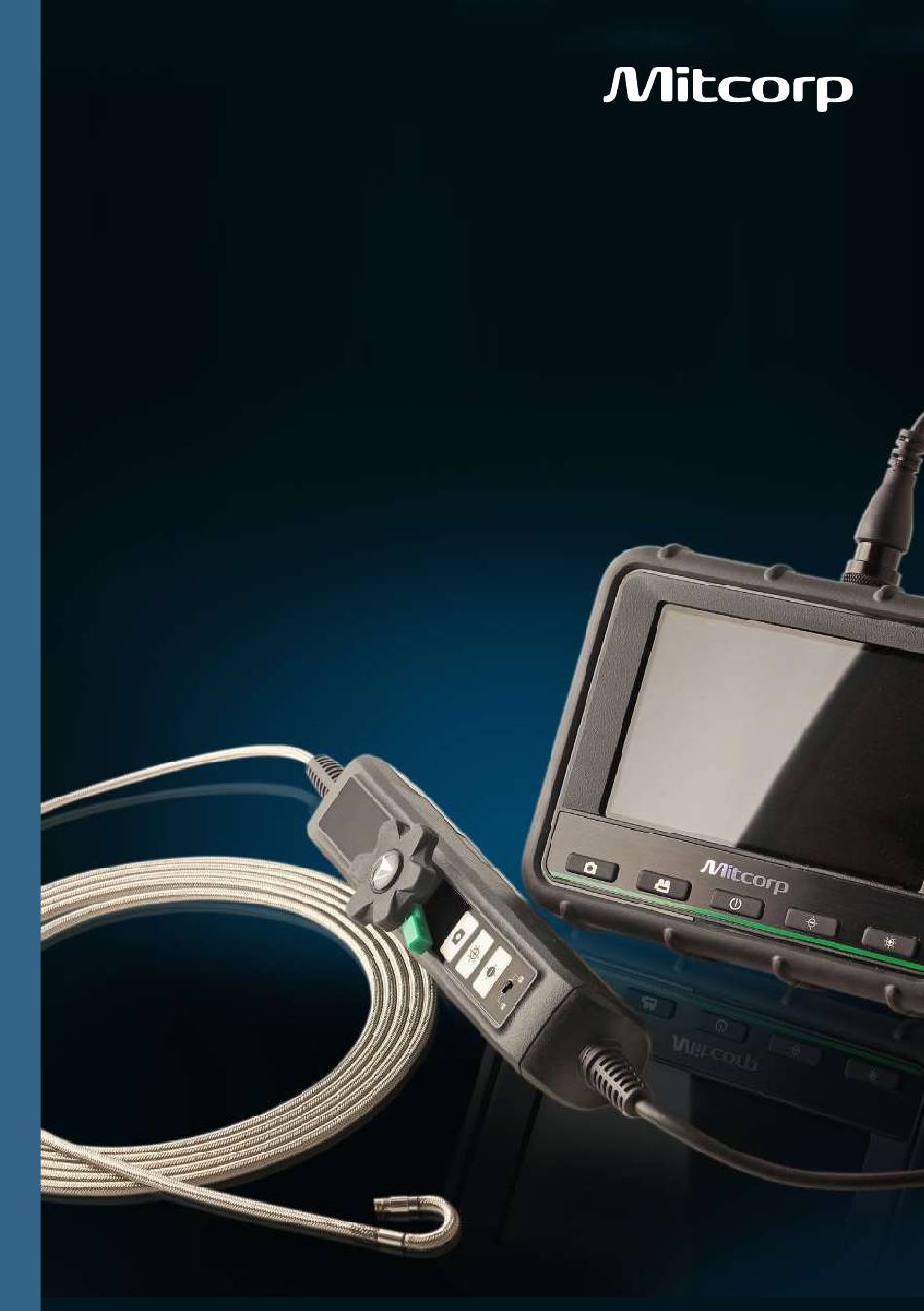

- Page 1 MX500 VIDEOSCOPE SYSTEM...
-
Page 3: Table Of Contents
Wite Balance - default Wite Balance SD Card Status Settings Menu USB Menu AV Output Menu Photo Video Play Album Play Function Keys Maintenance Upgrading Firmware WEEE Notice FCC Notice ROHS Notice Legal and Other Notices Chemical Compatibility Specifications MX500 Accessories... -
Page 4: Product Outlook
Product Outlook DECREASE BRIGHTNESS RECORD INCREASE BRIGHTNESS SNAP BUILT - IN MICROPHONE POWER BUTTON SD CARD SLOT CHARGING SOCKET SNAP... - Page 5 ！ RECHARGEABLE LI BATTERY INSIDE THREADED HOLE FOR TRIPOD MOUNT INSERT TUBE CONNECTOR...
-
Page 6: Getting Started With Touch Panel
Getting Started With Touch Panel When system turns on (with insert tube connected ), it’s ready to start the inspection. Time stamp Battery capacity Snapshot Video Recording Mirror Rotation Particle Free Menu Image contrast Preview Brightness adjustment Brightness Zoom in... -
Page 7: Function Menu
Function Menu Menu Submenu CLARITY : To enhance image edge. DUAL VIEW : Front view / side view inspection simultaneously (mirror needed). BOOST+ : Light enhanced Mode. White Balance - DEFAULT Menu Submenu... -
Page 8: Sd Card Status
White Balance Menu Submenu Hue adjustment SD Card Status Menu Submenu... -
Page 9: Settings Menu
FORMAT display form at YY/MM/DD, DD/MM/YY, MM/DD/YY TIMESTAMP set up time stamp WATERMARK on for Mitcorp watermark on pics AUTO POWER OFF set up system off time : OFF/5/10/20/30(minutes) REPEAT RECORDING set up record restart time : OFF /5/10/20/30(minutes) -
Page 10: Usb Menu
USB Menu Menu Submenu Reader: Connect PC to read the data stored in the SD card Camera: Connect PC to share real-time inspection status AV Output Menu Menu Submenu Connect the MX500 system to TV ( NTSC or PAL ) -
Page 11: Photo
PHOTO File saved time In chronological order Previous file Next file Album display Delete file Back Image enlargement : You can move the image to view picture details in green box Video Play Play/Pause You can drag the green dot backward/forward. -
Page 12: Album Play
Album play Previous file Next file Single pic display Delete file Back Video file (Click to play) To view certain file, check and click; to delete files, check and put them in the trash can. -
Page 13: Function Keys
Function Keys Functions Button Touch Screen icon Note Snapshot Take picture Recording Video record To enter preview mode and check photo/video Preview Power button files Press to increase brightness Brightness Press to decrease brightness Image Mirror Horizontal flip Image Rotaion 90°... -
Page 14: Maintenance
• Press and hold both simultaneously to enter factory mode. • Select <Calibration>, press • Follow the screen instrution, restart the MX500 system. Calibration needs to be done every time when : 1. change a different probe 2. firmware upgrade. -
Page 15: Upgrading Firmware
• When firmware update is done, the MX500 videoscope system will power off automatically. **Please "always" have insert tube plugged in when you execute calibration or firmware upgrade. -
Page 16: Weee Notice
WEEE Notice • The cross-out wheeled bin symbol indicates that according to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment, this product must be collected in a separated way instead of being disposed of as unsorted municipal waste. •... -
Page 17: Rohs Notice
This Mitcorp product is warranted to be free from defects in material and workman shop for 1 year from the date of purchase. Mitcorp agrees to repair or replace the product, at its own option and at no charge. This warranty... -
Page 18: Chemical Compatibility
Chemical Compatibility All insertion tubes made by Mitcorp had passed following liquid immersion test: • Water • Engine oil • Brake fluid oil • Gasoline • Diesel Fuel • Transmission oil Cautions for Use - This product is designed for industrial use only. Do not use the system for human or biological inspection. -
Page 19: Specifications
Specifications MX500 system Features Description Display 5" LCD ( 640x480 ) Snapshot 400 x 400, .jpg Recording 400 x 400, .avi Dimensions 160mm x 120mm x 55mm Weight 1.3kg ( 2.86lb ) Waterproof IP54 Drop resistence Battery Rechargeable Li battery, 5V, 3A 0ºC~45ºC (with battery) -
Page 20: Mx500 Accessories
MX500 ACCESSORIES Insulation cap Also include : USB cable, AV cable, clean set, SD card, user manual. INSULATION CAP... - Page 21 Note...
- Page 22 Note...
- Page 24 2F., No.75, Wenhua 1st Rd., Guishan, Taoyuan 333, Taiwan T +886-3-328-7177 F +886-3-328-7176 e-mail sal@mitcorp.com.tw website www.mitcorp.com.tw...
