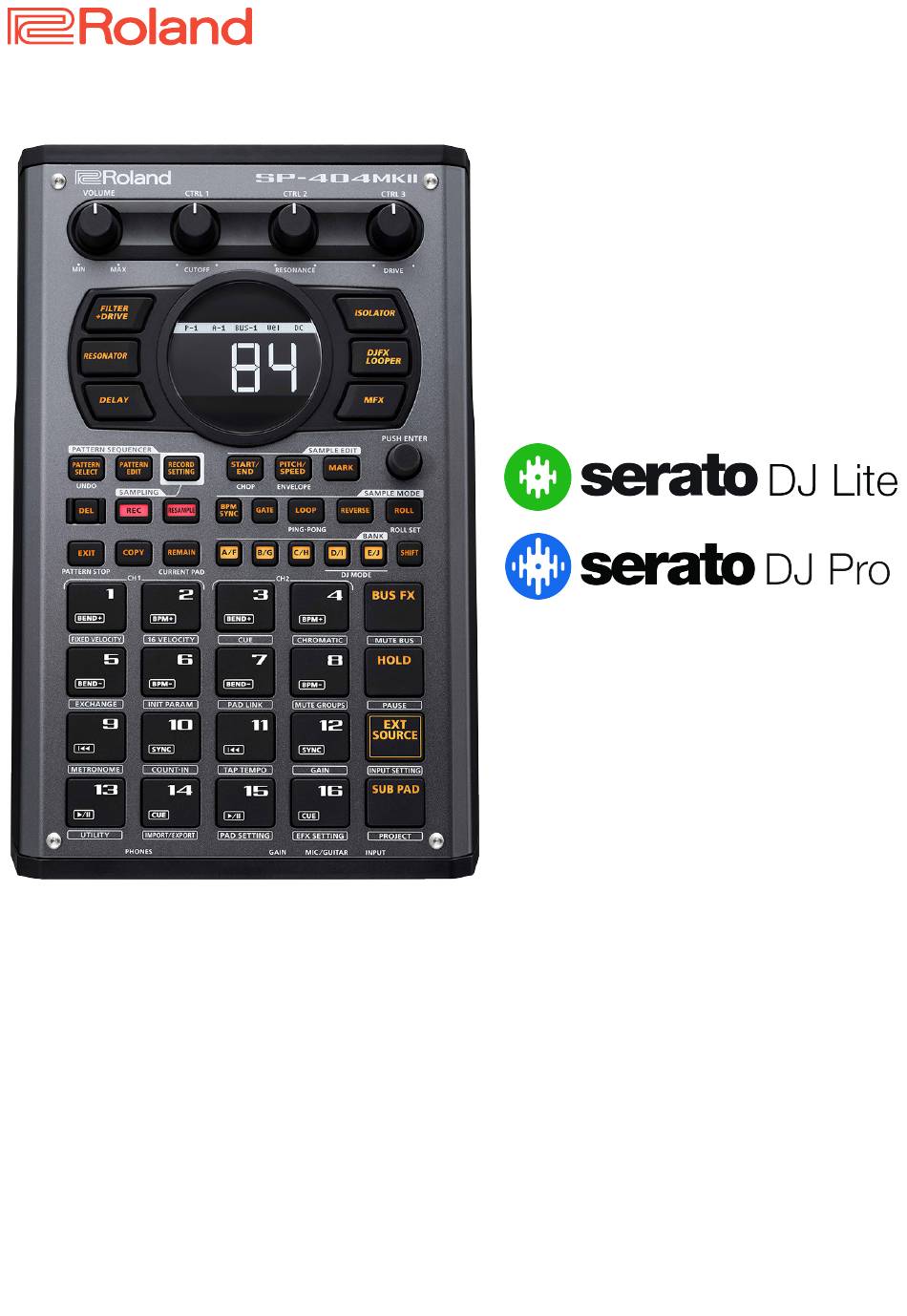

  • Page 1 SP-404MK2 Using Serato DJ with the SP-404MK2...

  • Page 2: Table Of Contents

    Contents Operating requirements..........Downloading Serato DJ ..........Installing Serato DJ ............. Setup................Overview of operations..........Controlling Serato DJ..........10 Browser section............11 Mixer section............... 12 Deck section..............14 Performance pad settings .......... 17 Hot cue operations (HOT CUE) ........18 Stem operations (STEM CONTROL) ......

  • Page 3: Operating Requirements

    Version 3.3.1 or later (macOS/Windows) Serato DJ Pro Version 3.3.1 or later (macOS/Windows) * Download the latest system program for the SP-404MK2 from the website shown below. Follow the steps shown to update the SP-404MK2. https://www.roland.com/global/products/sp-404mk2/downloads/ * See the Serato DJ page (https://serato.com/dj/lite/downloads or https://serato.com/dj/pro/downloads) to view the latest operating...

  • Page 4: Downloading Serato Dj

    Downloading Serato DJ The steps are for downloading Serato DJ. Launch your browser and access the following Serato DJ page. Serato DJ Lite: https://serato.com/dj/lite/downloads Serato DJ Pro: https://serato.com/dj/pro/downloads Click [Download] and follow the instructions to download Serato DJ.

  • Page 5: Installing Serato Dj

    Installing Serato DJ Follow the steps below to install Serato DJ. The steps shown here are for installing Serato DJ Lite. For macOS Double-click the Serato DJ Lite file you downloaded. This launches the installer. Click [Continue]. Check the User License Agreement and click [Continue]. Click [Agree] if you agree with the terms. Click [Install] to begin the installation.
  • Page 6 Installing Serato DJ Once you see the screen below, click [Close]. This completes the installation. For Windows Right-click on the Serato DJ Lite folder that you downloaded, and select “Extract All”. This decompresses the folder. Double-click the decompressed file. This launches the installer. Check the User License Agreement.
  • Page 7 Installing Serato DJ Once you see the screen below, click [Close]. This completes the installation.

  • Page 8: Setup

    Setup * Before connecting the SP-404MK2 and Serato DJ, you must update the SP-404MK2 system program to version 5.00 or later (Operating requirements (p. 3)). Use a USB cable to connect the SP-404MK2 to the computer on which Serato DJ is installed.

  • Page 9: Overview Of Operations

    Overview of operations You can use the pads and knobs of the SP-404MK2 to control the Serato DJ software for DJ play (mixing songs). It’s possible to apply the effects from the SP-404MK2 to the Serato DJ audio for DJ play.

  • Page 10: Controlling Serato Dj

    Use the three sections of the SP-404MK2 (the browser, mixer and deck) to control the Serato DJ. You can also use the effects of the SP-404MK2 while you’re using Serato DJ. Deck 1 is connected to bus 1, and deck 2 is connected to...

  • Page 11: Browser Section

    Controlling Serato DJ Browser section Use this section to operate Serato DJ and load songs. (Turn) Moves the cursor up/down Load song Sort Down one level into deck 1 options Load song Up one level into deck 2 Function Operation Explanation Load Track to Deck 1 Bank [A/F] button...

  • Page 12: Mixer Section

    Controlling Serato DJ Mixer section This is a two-channel mixer. You can use the volume and crossfaders for each deck to mix your song. Volume Volume Crossfader/ (Deck 1) (Deck 2) monitor balance [CTRL 3] knob function switch Screen switch (*1) Crossfader enable/disable (*1) Mixer page...
  • Page 13 Controlling Serato DJ Function Operation Explanation Disable Cross Fader [PITCH/SPEED] button Disables the crossfader (to prevent accidental operation). Toggle EFX screen [MARK] button Switches between the mixer page and the effect page. (*1) Toggle EFX Knob mode [SHIFT] button + [VALUE] knob (turn) Switches between how the values change when you move the [CTRL 1]–[CTRL 3] knobs (CatchÐDirect).

  • Page 14: Deck Section

    Controlling Serato DJ Deck section This section is used for controlling the two decks (deck 1 on the left, and deck 2 on the right). Deck 1 Deck 2 Tempo Increase Pitch Bend Up Tempo Increase Pitch Bend Up (Sel Pitch Range) (Fast Forward) (Sel Pitch Range) (Fast Forward)
  • Page 15 Controlling Serato DJ Function Deck 1 operation Deck 2 operation Explanation Temp Cue Pad [9] Pad [11] Specifies, plays back and recalls the temporary cue point. When you first press the pad [9] or [11] after switching to a song for playback, a temporary cue point is set.
  • Page 16 Controlling Serato DJ Function Deck 1 operation Deck 2 operation Explanation Censor [REVERSE] button + Pad [9] [REVERSE] button + Pad [11] Reverse playback continues while you press the [REVERSE] button and pad [9]/[11]. Once you take your fingers off the button and pad, playback skips ahead (“snaps back”) to the point equal to the amount of...

  • Page 17: Performance Pad Settings

    Serato DJ sampler [SUB PAD] button Lets you control the songs loaded into the sample slots of Serato Sampler. SP-404MK2 Sampler [HOLD] button Switches to SP-404MK2 sampler mode temporarily when connected to the Serato DJ. Press the pads to play the samples.

  • Page 18: Hot Cue Operations (Hot Cue)

    Hot cue operations (HOT CUE) When you press the [PATTERN EDIT] button, you can control eight hot cues per deck. Hot cues let you instantly play back from a set position. Deck 1 Deck 2 Hot Cue 2 Hot Cue 1 Hot Cue 2 Hot Cue 1 (Delete)
  • Page 19 Hot cue operations (HOT CUE) Function Deck 1 operation Deck 2 operation Explanation Hot Cue X [SHIFT] button + Pad [1] (Hot [SHIFT] button + Pad [3] (Hot When you press a pad while Cue 1) Cue 1) holding down the [SHIFT] Delete button, the hot cue is removed [SHIFT] button + Pad [2] (Hot...

  • Page 20: Stem Operations (Stem Control)

    Stem operations (STEM CONTROL) When you press the [PATTERN SELECT] button, you can control four stems (vocal, melody, bass and drums) per deck. * Items that are marked indicate functions that can be used with Serato DJ Pro. Deck 1 Deck 2 FX 1 FX 1...
  • Page 21 Stem operations (STEM CONTROL) Function Deck 1 operation Deck 2 operation Explanation Toggle Key Sync [SHIFT] button + Pad [10] [SHIFT] button + Pad [12] Lets you set two songs to the same key. (*1) (*1) Key Sync and Key Range Up/Down are Pitch 'n Time DJ functions. To use these functions, you must purchase and activate Pitch 'n Time DJ.

  • Page 22: Roll Beat Jump Operations (Roll Beat Jump)

    Roll beat jump operations (ROLL BEAT JUMP) This lets you control the beat jump (shifting a specified number of beats) function when you press the [ROLL] button. * This function can be used with Serato DJ Pro. Deck 1 Deck 2 1/16 Beat Roll 1/16 Beat Roll 1/8 Beat Roll...

  • Page 23: Auto Loop Operations (Auto Loop)

    Auto loop operations (AUTO LOOP) By pressing the [LOOP] button, you can control the loop playback to match the assigned length (beats) of each pad. A loop is automatically set from 1/32 to 32 beats, using the song’s BPM as a baseline. Deck 1 Deck 2 1/4 beat...

  • Page 24: Serato Sampler Operations (Serato Sampler)

    Serato Sampler operations (Serato SAMPLER) By pressing the [SUB PAD] button, you can control the songs loaded into the sample slots of Serato Sampler. Deck 1 Deck 2 Trigger Serato Trigger Serato Trigger Serato Trigger Serato Sampler SLOT 1 Sampler SLOT 2 Sampler SLOT 4 Sampler SLOT 3 Trigger Serato...

  • Page 25: Audio Routing (When Connected To Serato Dj)

    Audio routing (when connected to Serato DJ) SP-404MK2 System Program: Ver. 5.00 or later Deck 1 (CH1) (BUS 1) IN 1/2 Master Deck 2 (CH2) (BUS 2) IN 3/4 (for REC) OUT 1/2 Sampler (32 voices) LINE IN MIC/GUITAR IN...
  • Page 26 SP-404MK2 Using Serato DJ with the SP-404MK2 Roland Corporation © 2025 Roland Corporation...
