XPan
HASSELBLAD 5.6/30
CLOSE FOCUS RANGE DATA:
Minimum distance object to film
Corresponding distance object to front lens
Maximum image scale
Corresponding area of coverage
Corresponding exposure reduction
ENTRANCE PUPIL POSITION
63 mm in front of the film plane.
(at infinite focus setting):
The entrance pupil position is the correct position of the
axis of rotation when making a panorama image by com-
bining individual images of a scene.
MTF
Modulation Transfer as a func-
tion of image height at infinite
focus setting.
Sagittal slit orientation drawn
with continuous line and tan-
gential with dashed. White
light. Spatial frequencies 10,
20 and 40 lp/mm
0.70 m
0.62 m
1: 20
48 x 130 cm
0.1 f-stop
f/5,6
100
80
60
40
20
0
0
10
20
Image height (mm)
100
80
60
40
20
0
30
0
10
LENSES
f/11
20
30
Image height (mm)
1/2
www.hasselblad.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hasselblad XPAN 5.6-30
Summary of Contents for Hasselblad XPAN 5.6-30

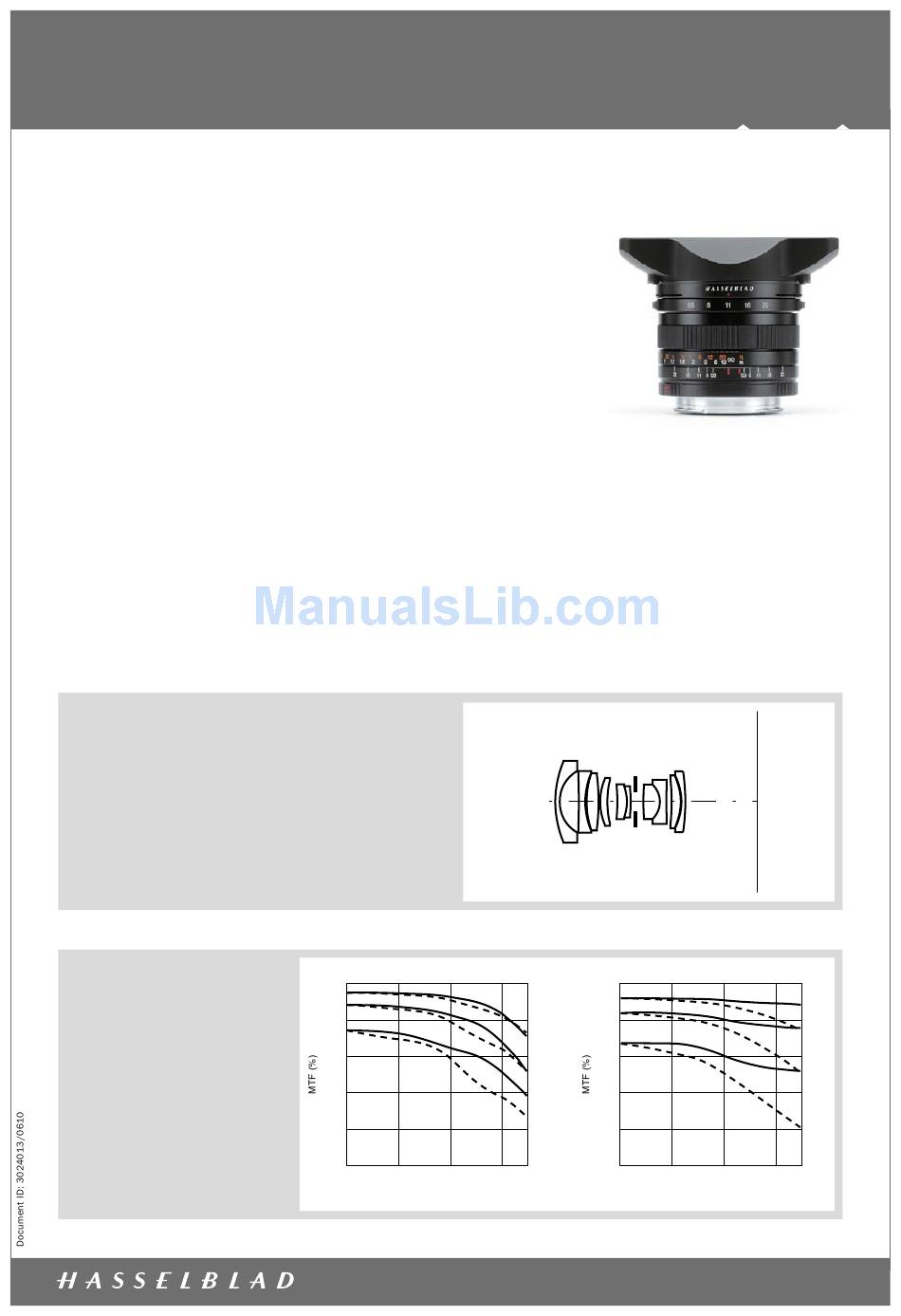

- Page 1 LENSES XPan HASSELBLAD 5.6/30 CLOSE FOCUS RANGE DATA: Minimum distance object to film 0.70 m Corresponding distance object to front lens 0.62 m Maximum image scale 1: 20 Corresponding area of coverage 48 x 130 cm Corresponding exposure reduction 0.1 f-stop ENTRANCE PUPIL POSITION 63 mm in front of the film plane.
