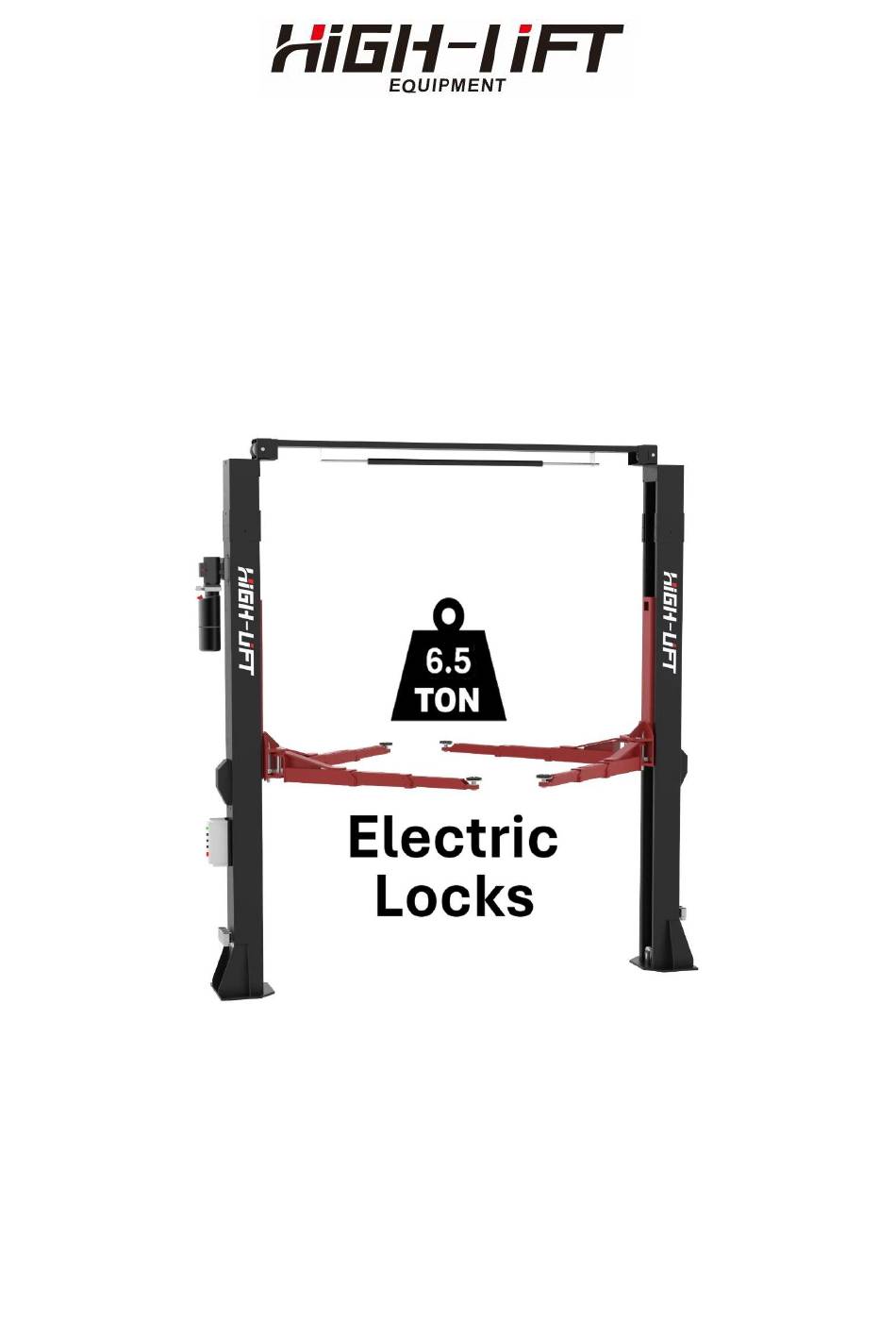

- Page 1 YL-650E Installation & Operation Manual Special Note ▲When you receive the car hoist , Please check if the packaging is damaged and if any accessories are leaking out. ▲Read this manual carefully before installation and follow the instructions in this manual.
- Page 2 ▲The lift should be installed in a sufficiently large space to allow unrestricted operation and a safe distance. ▲The lift must be installed on a sufficiently strong ground. Min 104mm to 200mm ▲The lift should not be installed minimum 200mm from edge of concrete ▲The lift should not be installed in an environment with large amounts of dust, chemicals and other corrosive media.
- Page 3 5、Lifting machine electrical schematic diagram 6、Lifting machine size diagram▪、 、 7、Lifting machine operating procedures 8、Common problem solutions 9、List of machine parts Common tools for installation of lift: Bar level, 5 meter steel tape measure. Open wrench assembly 10mm-24mm One set of internal hex key wrench assembly 150mm Phillips screwdriver Hand hammer 3Kg, impact drill Activity wrench 40mm impact drill bit Φ20...
- Page 4 Open the hoist package to check whether the parts are complete and undamaged. If any of the above occurs, please contact the manufacturer, dealer or transportation department in time.
- Page 5 2、 Installation size and schematic diagram of the lift The easiest installation method of the hoist is to determine the position of the main column, install and connect it horizontally according to the site, lift the whole side, fix the main column, measure the width between the two columns and the parallelism of the side of the column, and then fix the auxiliary column.
- Page 6 have safety rope protection to avoid safety problems. [as shown in the figure] Note: The hoist uses AW46# hydraulic oil 16L [if the temperature in winter is...
- Page 7 greater than or equal to-10, AW32# can be used for a short time] Column installation drawing Note: The three-phase motor needs to be adjusted to turn left and right, while the...
- Page 8 single-phase motor does not need to be adjusted. [Right rotation is forward rotation] The external hexagon bolt on the front of the valve plate is a single-phase valve. 、 Hydraulic schematic diagram of the lift...
- Page 9 Note: The oil pipe passes through the outside of the steel wire rope pulley at the diagonal corner of the crossbeam. Schematic diagram of lifting cables 4、...
- Page 10 Note: The steel cables bolt must be installed with 2 nuts. Lifting machine electrical schematic diagram 5、...
- Page 11 Note: The electrical components in the electrical box may be loosened under transportation vibration, which can be removed and reinstalled. Lifting machine size diagram 6、...
- Page 14 、 Lifting machine operating procedures 7.1 Safety precautions Operators must be professionally trained and familiar with equipment performance and operation methods. · Do not overload the equipment [determine the rated load of the equipment] · Ensure that there is no one in the vehicle and valuables have been removed before lifting.
- Page 15 · Select suitable rubber pad [optional] · Adjust the support arm to the vehicle's designated lift point [refer to the vehicle maintenance manual] Step 3: Test run the lift · Press the up button and lift the vehicle off the ground by 10-15cm ·...
- Page 16 7.5 Emergency handling · In case of power failure/failure; manually unlock and use the manual pressure relief valve to descend slowly · Stop operation immediately if abnormal sound is found · Cut off the power supply and report for repair when hydraulic oil leaks 7.6 Prohibited matters ·...
-
Page 17: Common Problem Solutions
8、Common problem solutions Fault Failure cause Elimination method phenomenon The motor stop · Power protection circuit · Close the circuit breaker and check the running breaker connection · supply voltage · Check whether the voltage is the same as that of the motor ·... - Page 18 The motor · There are foreign matter in · Remove and clean or replace. operation rise stop button will the single-phase valve automatically slide down The lift is slow · The gap between the oil · Replace the oil pipe pipe pressure head is insufficient The electrolytic...
- Page 19 、 List of machine parts...
- Page 20 Picture Code Part name Picture Code Quantity Part name Quantity Main 650A A column control box assembly mounting welding plate External Crosshead M5X20 M16X45 bolt bolts M16 nut [8.8] M5 nut [8.8] M20 car repair foot control box bolt [set] Internal 650A Pump station...
- Page 21 Increase External six the height M12X35 of the bolts [set] sleeve Picture Code Part name Picture Code Quantity Part name Quantity 650A electrolytic 650A beam bracket pulley shaft assembly 650A 650A column crossbeam lock cover rope wheel [no hole] sleeve 650A Axis card column...
- Page 22 List of machine parts Picture Code Part name Picture Code Quantity Part name Quantity Cable group Internal six welding M6x55 bolts slider Axis card Φ 30 Assembly of the slide support lock gear shaft shaft Climb lock Axis card rod spring Φ...
- Page 23 Climb the small lock block List of machine parts Picture Code Part name Picture Code Quantity Part name Quantity Head joint Lock the support bracket welding Internal sections of M12x30 welding bolts Three sections of Pallet assembly welding Three arm Internal six supports M10x16...
- Page 24 List of machine parts Picture Code Part name Picture Code Quantity Part name Quantity Guide ring Cylinder block 50-45-10 cylinder tube DH45-53-5-6 plunger KD60-50-10 Guide ring Cylinder rod 60-55-10 O-ring guide bushing D60X4 650E cylinder Cylinder rod exhaust hole joint pressure pad...
- Page 25 Internal six O-ring d30X3.1 M6X10 bolts List of machine parts Picture Code Part name Picture Code Quantity Part name Quantity Electrical Φ 14 combination equipment [electrolysis] pads 16x1.5 to 14x1.5 press combination coupling shaft pads [directly head] Valve plate M14x1.5 plug [column type] check valve gear pump...
- Page 26 overflow valve List of machine parts Picture Code Part name Picture Code Quantity Part name Quantity Control box Terminal strip base [164-353] [15 positions] Combination Cover of switch [26-20- control box 2GS] [164-353] Transformer Indicator light [150A] [DC24] Contactor for Up button AC [1810] [LA38]...
-
Page 27: List Of Accessories
Intermediate Lower the relay [8 hole button DC24] [LA38] Emergency Rectifier bridge stop button [FBPC2510] [LA38] List of accessories Electrolytic lock the gantry Number Name Quantity Remarks Expansion screw 20*200 16 sets Increase height Eight Increase the height of the Four holes bracket pallet... - Page 28 35 Spring clips Four O molding ring Four...
