HiGH-LiFT YL-9FW Installation & Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
YL-9FW
Installation&Operation
Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YL-9FW and is the answer not in the manual?

Questions and answers

Related Manuals for HiGH-LiFT YL-9FW

Summary of Contents for HiGH-LiFT YL-9FW

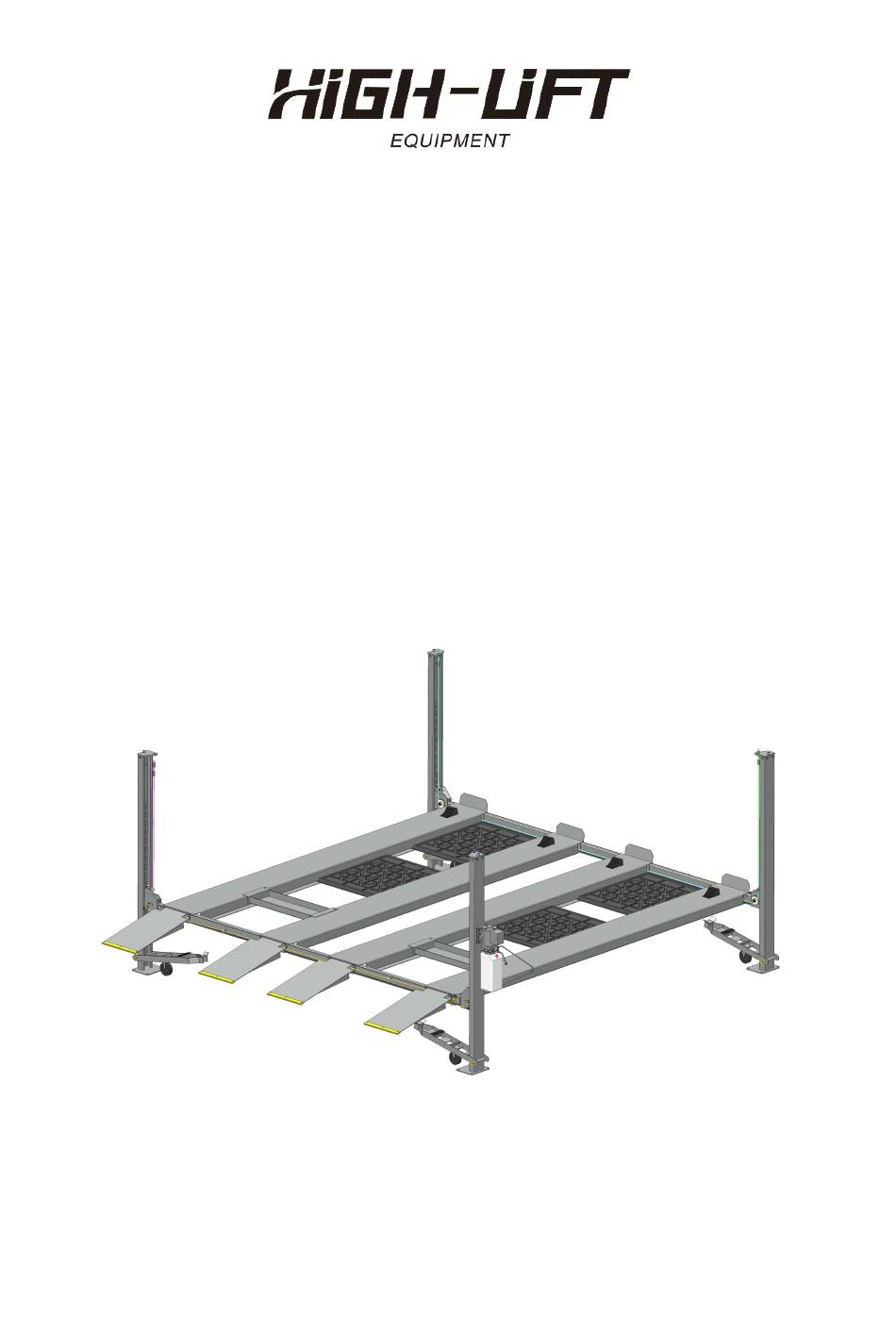

  • Page 1 YL-9FW Installation&Operation Manual...
  • Page 2 Special Notes: ▲In case of shipping damage，call the truck line immediately and report the damage as a freight claim. ▲Please read this manual thoroughly before installing, operating. Or maintaining this lift. ▲To find out the power supply requirement on the machine nameplate， it must be connected by a professional qualified electrician.

  • Page 3: Table Of Contents

    Table of contents 1、Main performance ..........................pg.4 2、Installation and instructions........................pg.4 3、Debugging of equipment........................pg.5 4、Maintenance and inspection........................pg.6 5、Basic parameters and Dimensions ......................pg.7 6、Installation procedure..........................pg.9 7、Parts list..............................pg.29 8、Hydraulic system and electrical component of equipment..............pg.36 9、Common troubleshooting method.......................pg.41 10、Packing list............................pg.42 11、List of vulnerable part ........................pg.43...

  • Page 4: 1、Main Performance

    1、 Main performance Four post double parking lift that stores two vehicles underneath and two on the ramps above. ● ● The motor drivers the oil pump to drive the hydraulic cylinder，quite working environment. ● mechanical safety lock，can lock any desired height, safe and reliable. ●...

  • Page 5: 3、Debugging Of Equipment

    Step 9: point up and observe whether the cables position is correct. The electromagnet unlocked safety drops to the lowest point of the runway and adjusts the tension of the cables to make the four consistent. Step 10: adjust the position between the column parts and the crossbeam. The limit block is required to be close to the column.

  • Page 6: 4、Maintenance And Inspection

    4、Maintenance and inspection Daily Pre-Operation check 1. Check safety lock audibly and visually while in operation. 2. Check safety latches for free movement and full engagement with rack. 3. Check hydraulic connections, and hoses for leakage. 4. Check cables connections bends, cracks-and for loose fittings. 5.

  • Page 7: 5、Basic Parameters And Dimensions

    3. Check for excessive wear of cable, replace them if necessary. 5、Basic parameters and Dimensions (In millimeters) Figure 1 Model YL-9FW 2476 2200 4833.5 4565.5 5055.5 4503 1665 Capacity Power 9000LBS 5055.5 4565.5 5725 4899 4309 5725 240V 50HZ 4000KGS...
  • Page 8 Figure 2...

  • Page 9: 6、Installation Procedure

    6、Installation of procedure 1-2-5-23-24-26 (Optional part 24) 3-4-8-9-10-11-12-14-15-16-17-22-25...
  • Page 10 6-7-13-20-21 18-19...
  • Page 11 27-28-29-30-31-32-33-34-35-36-37-38-39-40-41-42-43-44 45-46-4748-49-50-51-52-53-54-55-56-57-58-59-60-61-62-63...
  • Page 12 64-67-77-78-82 65-66-68-69-70-71-72-73-74-75-76-79-80-81...
  • Page 13 83-84-85-86-87-92-93-94-95-96-97-98-99 88-89-90-91-102-107...
  • Page 14 100-101-103-106-108-110 104-105-109 (Optional part 109)
  • Page 15 ZPT-1 ZPT-1-1...
  • Page 16 ZPT-1-2 ZPT-1-3...
  • Page 17 ZPT-2 ZPT-2-1...
  • Page 18 ZPT-2-2 ZPT-3...
  • Page 19 ZPT-4 (Optional part)
  • Page 20 Z-2-1...
  • Page 21 Z-2-2...
  • Page 22 Z-3-1 Z-3-2...
  • Page 23 Z-3-3 Z-3-4...
  • Page 25 Z-5-1 Z-5-2...
  • Page 26 Z-5-3 Z-5-4...
  • Page 27 Z-5-5...

  • Page 29: 7、Parts List

    Parts list 、 Main serial Serial Product name Quantity/machine number number Four-column lift - Manual version Welding part Main columns Subsidiary columns Left column ’s cup Right column ’s cup Safety lock Main platform Subsidiary Platform Oil cylinder slider bracket Cylinder Growth Wheel Shaft Main Platform A Rope Wheel Shaft Main Platform B Rope Wheel Shaft...
  • Page 30 Left manual bumper Right manual bumper Stop bumper Pulley pin roll Left hood assembly Right guard Safety handle bumper bumper connector Approach ramp Caster kit Hitch pin Tool/Jack tray Standard parts M5x15 round head bolts M6×15 round head bolts M6×15 flat head screws M8×10 Tightening Bolts M8x15 Hexagon Bolt Hexagon bolts M8X15 round head...

  • Page 31: 9/16 Point Power Unit Connector

    Diameter 18 spring washer Diameter 5 flat washer Diameter 6 flat washer Diameter 8 flat washer 8+2+1+6+4+4+32 Diameter 10 flat washer Diameter 12 flat washer Diameter 14 flat washer Diameter 18 flat washer 16+32 20 x3 Diameter Flat washer 8+12 Flat x3 24 diameter M5 nuts M8 nuts...

  • Page 32: Diameter 8 Flat Washer

    Diameter 12 flat washer M12 nuts Column Safety Sheet Diameter 18 flat washer M18 nuts Platform assembly part Main platform Deputy Platform Oil tank Cylinder Tailstock SH General purpose 35 diameter card spring Oil cylinder slider bracket M8×25 hexagon bolts Diameter 8 spring washer Diameter 8 flat washer Nylon foot...
  • Page 33 Trachea pulley Oil-free bearings-25 Flat X3 24 diameter 1 inch galvanized pipe ×18 1 inch galvanized pipe ×44 Main Platform A Rope Wheel Shaft Main Platform B Rope Wheel Shaft M10 butter mouth Main platform cables locking plate M8X15 Hexagon Bolt Diameter 8 flat washer Diameter 8 bullet pad According to the model corresponding cable Diameter 11,...

  • Page 34: M8 Nuts

    Stop bumper Stop Insurance Hook Limit Wheel Pin Stop hook limit wheel Diameter 8 flat washer Diameter 8 spring washer M8 self-locking nuts torsion spring - left torsion spring - right 6 galvanized pipe ×17 Pull spring (￠1.6×￠12×72) Cross Beam M8X15 Hexagon Bolt Diameter 8 flat washer Diameter 8 spring washer...
  • Page 35 bumper connector M12 nuts bumper spacer Cross Beam Unlock Bar A Cross Beam Unlock Bar B M8 eye bearing M8 ring bolts M8X30 Hexagon Bolt M8 nuts M8 self-locking nuts Approach ramp Nylon slip strip M5X15 round head bolts Diameter 5 flat washer M5 nuts Stop end plate Rubber brake pads...

  • Page 36: Double Head 9/16 Tip Tubing Always Bent

    ￠14 Copper gasket M8X35 Hexagon Bolt Diameter 8 flat washer Diameter 8 spring washer M8 nuts Double head 9/16 tip tubing always bent Stop end plate Rubber brake pads Plastic drip tray M19 expansion bolts Round notch flat washer Banding Consumable pieces Serial Product name...

  • Page 37: 8、Hydraulic System And Electrical Component Of Equipment

    8、Hydraulic systems and electrical components of equipment 1.Appearance Explosion Chart of Hydraulic Station 2.Hydraulic systems for equipment a. hydraulic schematic diagram b. Hydraulic Components c. Hydraulic System Working Principle d. electrical schematic Exterior Explosion Chart of 1. Hydraulic Station...
  • Page 38 number Name of name Quantity Number Name of name Quantity Motor Sealing gasket Valve core Stuffy Fuel tank M5X40 Hexagon Screw Drop Speed Control Valve Φ5 flat washer Stuffy Φ5 spring washer Oil outlet M6X20 Hexagon Screw Oil outlet Φ6 flat washer Hand wrench valve Φ6 spring washer 2．Hydraulic system...
  • Page 39 B. Hydraulic Components Oil tank Solenoid valve One-way valve Down throttle Oil pump Relief valve Fuel tank Volume 10 liters Filter Motor 240V, 50HZ, 2.2KW Optional 3PH Name of Number Number Model Specifications Remarks name of cases...
  • Page 40 C. hydraulic system works as follows: When the start button on the hydraulic station is pressed, the motor starts, drives the oil pump, inhales the pressure oil from the tank and sends it to the serial A9 cylinder, so that the piston rod can move.
  • Page 41 9、Common troubleshooting Number Fault phenomenon Exclusion methods Motor not rotating ● check the power supply...

  • Page 42: 10、Packing List

    ● check loose wiring in motor junction box ● the single-phase electric rotation direction is wrong, Motor rotation replace two of the incoming line position. pressure-free oil ● check that the suction pipe in the tank is off. Hydraulic pressure drops slowly after ●...

  • Page 43: 11、List Of Vulnerable Part

    9/16 Point power unit connector ￠14 Copper gasket M8X35 Hexagon Bolt Diameter 8 flat washer Diameter 8 spring washer M8 nuts Double head 9/16 tip tubing always bent Stop end plate Rubber brake pads Plastic drip tray M19 expansion bolts Round notch flat pad Banding 11、List of vulnerable parts...

  • Page 44: Plastic Drip Tray

    Serial Product name number Nylon foot Growth wheels Oil-free bearing-35 pulley Oil-free bearings-25 According to the model corresponding Cable Diameter 11, L1 According to the model corresponding Cable Diameter 11, L2 According to the model corresponding Cable Diameter 11, L3 According to the model corresponding Cable Diameter 11, L4 Beam Slider...
