MXM-A500 Module
Quick Installation Guide
Embedded MXM GPU Module
NVIDIA Embedded RTX A500 MXM Type A, 4G, 40W Kit with
Heatsink and Thermal Pad
Version: V1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MXM-A500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Cincoze MXM-A500

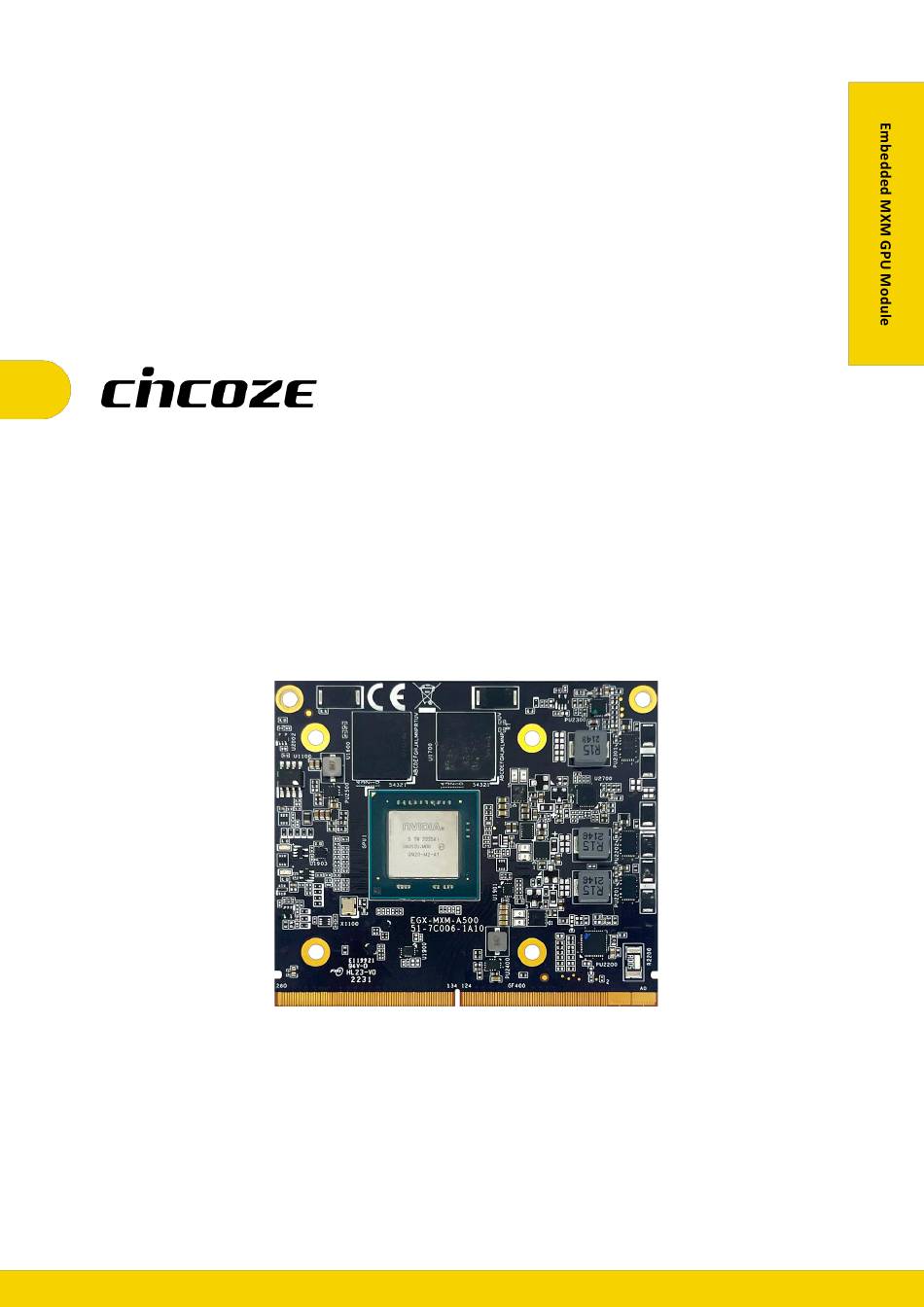

  • Page 1 MXM-A500 Module Quick Installation Guide Embedded MXM GPU Module NVIDIA Embedded RTX A500 MXM Type A, 4G, 40W Kit with Heatsink and Thermal Pad Version: V1.00...
  • Page 2: Table Of Contents

    Chapter 1 Product Introductions ......................8 1.1 Product Pictures ........................9 1.2 Key Features ......................... 10 1.3 Specifications ........................10 1.4 Mechanical Dimension ......................11 Chapter 2 Module Setup ........................12 2.1 Installing MXM-A500 Module ....................13 -A500 | Quick Installation Guide...
  • Page 3: Preface

    2025/04/11 Copyright Notice © 2025 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Cincoze Co., Ltd. All information and specification provided in this manual are for reference only and remain subject to change without prior notice.
  • Page 4: Product Warranty Statement

    (such as a fuse, battery, etc.), are not warranted. Before sending your product in, you will need to fill in Cincoze RMA Request Form and obtain a RMA number from us. Our staff is available at any time to provide you with the most friendly and immediate service.
  • Page 5: Limitation Of Liability

    Limitation of Liability Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use, whether based on warranty, contract, negligence, product liability, or otherwise, shall not exceed the original selling price of the product. The remedies provided herein are the customer’s sole and exclusive remedies.
  • Page 6: Conventions Used In This Manual

    Conventions Used in this Manual This indication alerts operators to an operation that, if not strictly observed, may result in severe injury. (Cette indication avertit les opérateurs d'une opération qui, si elle n'est pas strictement observée, peut entraîner des blessures graves.) This indication alerts operators to an operation that, if not strictly observed, may result in safety hazards to personnel or damage to equipment.
  • Page 7: Package Contents

    Note: Notify your sales representative if any of the above items are missing or damaged. Ordering Information Model No. Product Description NVIDIA Embedded RTX A500 MXM Type A, 4G, 40W Kit with Heatsink MXM-A500 and Thermal Pad -A500 | Quick Installation Guide...
  • Page 8: Chapter 1 Product Introductions

    Chapter 1 Product Introductions -A500 | Quick Installation Guide...
  • Page 9: Product Pictures

    1.1 Product Pictures Front Rear -A500 | Quick Installation Guide...
  • Page 10: Key Features

    1.2 Key Features ⚫ NVIDIA® RTX™ A500 Embedded Graphics ⚫ Standard MXM 3.1 Type A Form Factor (82 x 70 mm) ⚫ 2048 NVIDIA® CUDA® Cores, 16 RT cores, and 64 Tensor cores ⚫ 6.54 TFLOPS Peak FP32 Performance ⚫ PCIe Gen 4 x4 interface ⚫...
  • Page 11: Mechanical Dimension

    1.4 Mechanical Dimension -A500 | Quick Installation Guide...
  • Page 12: Chapter 2 Module Setup

    Chapter 2 Module Setup -A500 | Quick Installation Guide...
  • Page 13: Installing Mxm-A500 Module

    2.1 Installing MXM-A500 Module This chapter provides a step-by-step guide on how to install an MXM Module into a system that supports MXM Modules. Before proceeding with this chapter, users should refer to the user manual of the MXM Module-supported system to remove the chassis cover and complete the installation of the MXM carrier board.
  • Page 14 Step 3. Insert the MXM Module into the slot on the MXM carrier board at 45 degrees. 45° Step 4. Fasten the two screws (M3X5L) on the module as indicated. Before putting on the thermal block (in the next step), please make sure the protective films on the Thermal Pads have been removed! (Avant de mettre le bloc thermique (à...
  • Page 15 Step 6. Paste the thermal pad on the thermal block. and then remove the protective film on the surface of the thermal pad. Before assembling the system’s chassis cover, please make sure the protective film on the Thermal Pad has been removed! (Avant d'assembler le capot du châssis du système, assurez-vous que le film protecteur du coussin thermique a été...
  • Page 16 © 2025 Cincoze Co., Ltd. All rights reserved. The Cincoze logo is a registered trademark of Cincoze Co., Ltd. All other logos appearing in this catalog are the intellectual property of the respective company, product, or organization associated with the logo.
