Thank you for choosing the Canvas Clock to get all your time based effects in sync! With MIDI Input/
Output, 4 fully configurable ¼" Jacks, metronome output, sync input/output, and USB-C connectivity,
you are truly able to synchronize almost any device that is associated with tempo, time, and BPM.
Be sure to visit walrusaudio.io to build your set and song lists online then save to the Canvas Clock!
Email help@walrusaudio.com to talk with a real live human about your Walrus gear!

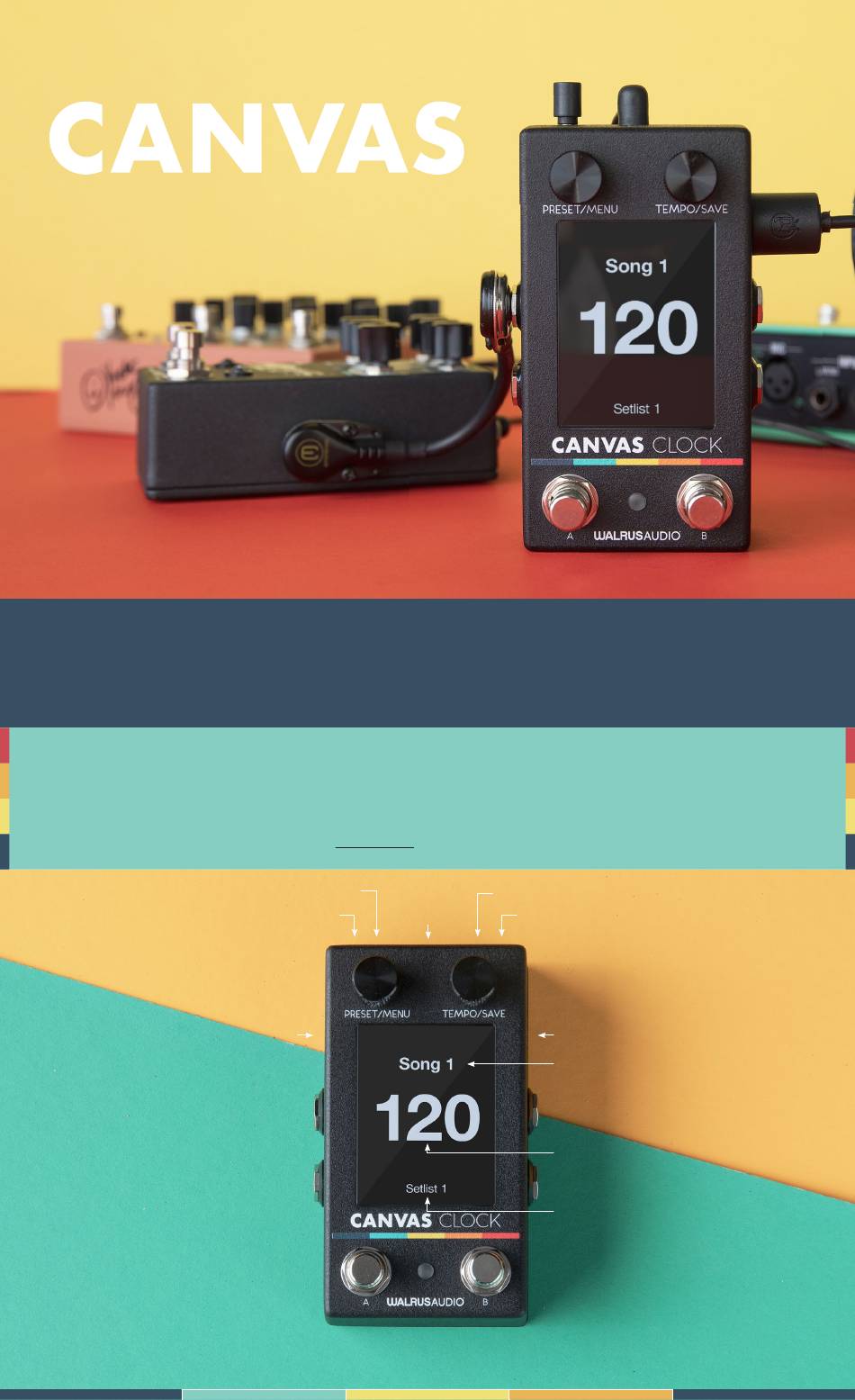

PRESET/MENU ENCODER
MIDI OUT DIN
1/4 INCH JACK 3
1/4 INCH JACK 4
FOOTSWITCH A
Got questions or need a repair?
This product comes with a limited lifetime warranty.
Click Here for more info.
USB C (TOP)
MET OUT
MIDI OUT 1/8"
SYNC
9V 300mA
MIDI IN 1/8"
(BOTTOM)
TEMPO/SAVE ENCODER
MIDI IN DIN
CURRENT SONG TITLE
1/4 INCH JACK 1
CURRENT BPM
1/4 INCH JACK 2
CURRENT SET LIST
FOOTSWITCH B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CANVAS CLOCK and is the answer not in the manual?

Questions and answers

Related Manuals for Walrus Audio CANVAS CLOCK

Summary of Contents for Walrus Audio CANVAS CLOCK

  • Page 1 CLOCK CLOCK Thank you for choosing the Canvas Clock to get all your time based effects in sync! With MIDI Input/ Output, 4 fully configurable ¼” Jacks, metronome output, sync input/output, and USB-C connectivity, you are truly able to synchronize almost any device that is associated with tempo, time, and BPM.

  • Page 2: Control Navigation

    • Press to enter the main menu. TEMPO/SAVE ENCODER • Scroll to edit the BPM of the current song. The Canvas Clock automatically saves the new BPM to the current song. • Press to toggle +0.5 BPM on/off to add half a BPM to the current song.
  • Page 3 MENU - SETLISTS Setlists on the Canvas Clock are a collection of Songs that the user can curate and arrange in any order or combination that they would like in order to have the perfect timing for the gig, without the need to think about tapping in new tempos, changing presets, etc.
  • Page 4 MIDI message. CHANNEL Determine which MIDI channel this specific message is sent out of the Canvas Clock (1-16). NAME Use this to change the name of the selected Macro. The available characters = Blank, A-Z, a-z,...

  • Page 5: Global Settings

    MIDI options. JACKS A major part of the Canvas Clock is the multiple configurations, customizations, and functions that the user can assign to the ¼” jacks on the sides of the pedal. Each ¼” jack can be setup for a specific function. We will break down the specific functions below, the requirements to interact with external pedals, and some things to note.
  • Page 6 JACKS CONTINUED CV OUTPUT With Control Voltage (CV) output selected, you can use a ¼” output as a CV output to control any device that accepts CV. This can be 3.3V or 5V and is in reference to the BPM. For example, you could send a CV output to the expression input on the Monument in order to change the “Depth”...
  • Page 7 L Press. Same options as L Hold. FOOTSWITCHES Use the onboard footswitches to control different functions of the Canvas Clock. These can be assigned to several functions available on the pedal. A PRESS Assign the action triggered when a left press is detected.
  • Page 8 METRONOME ACCENT Choose whether to enable or disable the accent note for the metronome output. DIVISION Determine the subdivision of the metronome output based on the current BPM. • 1/4 • .¼ • 1/4t • ⅛ • .⅛ • 1/8t •...
  • Page 9 MIDI SETTINGS This menu allows you to adjust the global MIDI functionality of the Canvas Clock. These settings are important for your pedals to “talk” to each other properly. These are “rig” dependent and could need to be adjusted based on your setup.
  • Page 10 To use the web editor, first open a CHROME web browser, navigate to canvasclock.app, then connect your pedal with a USB-C cable. The Canvas Clock editor has five easy to use, main menu options: SONGS, SETLISTS, MIDI MACROS, GLOBAL, DISPLAY.
  • Page 11 WALRUSAUDIO.IO GLOBAL MENU - Use this menu to edit all of Clock’s global settings based on how your rig is configured and configured. JACKS/FOOTSWITCHES - This is where you get to tell the 1/4” jacks and footswitches what to do. Jacks can be assigned the following settings: •...

  • Page 12: Technical Info

    TECHNICAL INFO POWER: • 9v 300mA Minimum • Center Negative, 2.1mm center pin, 5.5mm barrel OR powered via USB C. Max CV voltage output - 5V. HARDWARE: • Preset/Menu Push-button Encoder COMPUTER CONNECTIVITY: • Tempo/Save Push-button Encoder Use the Clock web app* to quickly customize songs, setlists, •...
