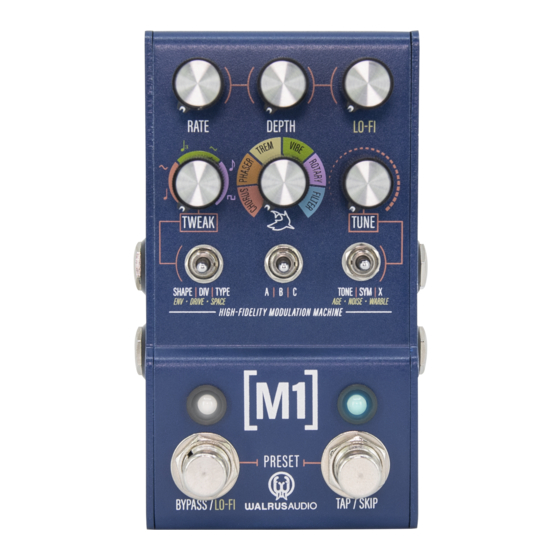

Walrus Audio MAKO M1 Instruction Manual

High-fidelity modulation machine
Hide thumbs

Advertisement

Quick Links

Download this manual
M1 H IG H -F I D ELI TY M OD U L ATI O N M AC H I N E
INS TRUCTION MANUAL

Advertisement

loading

Related Manuals for Walrus Audio MAKO M1

Summary of Contents for Walrus Audio MAKO M1

  • Page 1 M1 H IG H -F I D ELI TY M OD U L ATI O N M AC H I N E INS TRUCTION MANUAL...
  • Page 2 Write your sonic story in any style and genre with *The use of an isolated power supply is recommended for powering all Walrus Audio Pedals. the M1 High-Fidelity Modulation Machine. Daisy chain power supplies are not recommended.
  • Page 3 CONTROLS Rate - The Rate knob sets the speed of the main LFO. Set lower for long gentle movement, and higher for wild and fast modulation. Depth - The Depth knob determines the amount of modulation heard by setting the amplitude of the main LFO.
  • Page 4 X knob does in each program. last saved. Audio Input and Output - The Mako M1 offers multiple input and output configurations. o Mono In / Mono Out - Use the top set of jacks for mono in - mono out.
  • Page 5 LO-FI CONTROLS Lo-Fi - The Lo-Fi knob allows you to adjust the overall amount, or “mix”, of the six lo-fi parameters. Turning this knob up brings in any lo-fi parameters that are engaged while maintaining their relative mix, making it easy to blend in unique combinations of these effects to taste. Setting this knob to minimum turns off all lo-fi parameters no matter their individual levels.

  • Page 6: Global Preferences

    PRESETS GLOBAL PREFERENCES The pedal includes 128 total presets slots. Good luck using them all! The first 9 presets are accessible Bypass Mode - The M1 offers two bypass modes. True Bypass and DSP Bypass. In True Bypass mode, from the pedal using the Bank switch and both stomp switches. All 128 are accessible via MIDI the M1 uses relays to completely bypass all pedal circuitry.
  • Page 7 MIDI MIDI PRESET MIDI PROGRAM PRESET MIDI PROGRAM PRESET MIDI PROGRAM The M1 can be controlled via standard MIDI messages. Simply connect your MIDI controller to the CHANGE (PC) CHANGE (PC) CHANGE (PC) M1 MIDI “IN”. Downstream MIDI devices can be connected to the MIDI “THRU” which simply lets all incoming MIDI messages pass through to your other devices.
  • Page 8 MODULATION PROGRAMS o Type 1: Traditional Tremolo o Type 2: Harmonic Tremolo • Chorus - From subtle chorus to vibrant, and lush tri-chorus that will instantly teleport you to the o Type 3: Pattern Tremolo TWEAK 80s. Type I is a traditional chorus great for tight smooth chorus tones. Type II adds a second chorus o X: Stereo Phase - Controls the phase of the right output in relation to the left output.
  • Page 9 MODULATION PROGRAMS • Filter - Add tone-shaping movement to your signal with different modulated filters. Type I is a lowpass filter good for modulated darker tones. Type II is a highpass filter used to creatively • Rotary - Because you can’t fit a Leslie speaker on your pedalboard. Type I aims for that traditional modulate your low frequencies. Type III is a bandpass filter forming a sliding “window”...
  • Page 10 UPDATES Any updates or features added to the M1 will be available via firmware updates at walrusaudio.io Scan the code below to be the first to know when any firmware updates are available.
  • Page 11 WALRUSAUDIO.COM Got questions or need a repair? help@walrusaudio.com. All our pedals come with a limited lifetime warranty. Visit walrusaudio.com/pages/warranty-and-repair for more info.
