  • Page 1 Saveris multi-functional handle 0560 1010 Instruction manual...

  • Page 3: Table Of Contents

    Mounting the wall bracket ................. 16 Commissioning the testo Saveris multi-functional handle ........17 Switch on testo Saveris multi-functional handle ............17 4.3.1 Switch off testo Saveris multi-functional handle ............17 4.3.2 4.3.3 Pair testo Saveris multi-functional handle with testo Saveris Control Unit ....18...
  • Page 4 Auto-Off function...................... 19 4.3.4 4.3.5 Temperature stabilization mode (TTS) ..............19 Operation .................... 20 Fit probe measuring tips onto the testo Saveris multi-functional handle .... 20 Carrying out measurements ................20 Measuring in real-time mode ..................20 5.2.1 5.2.2 Measuring with temperature stabilization mode (TTS) ..........21 Special information for measurement ...............

  • Page 5: About This Document

    Always use the complete original instruction manual. • Hand this documentation on to any subsequent users of the product. You will find the General Terms and Conditions in the login area of the respective testo Saveris solution at: www.testo.com/login. Icons Display Explanation...

  • Page 6: Safety And Waste Disposal

    • Only perform that maintenance and repair work on this instrument which is described in the documentation. Follow the prescribed steps exactly when doing the work. Use only original spare parts from Testo. Batteries • Improper use of batteries may cause destruction of the batteries, injuries due to current surges, fire or the escape of chemicals.

  • Page 7: Disposal

    Dispose of faulty/spent batteries in accordance with the valid legal specifications. • At the end of its useful life, deliver the product to the separate collection point for electric and electronic devices (observe local regulations) or return the product to Testo for disposal.

  • Page 8: Description Of The Instrument

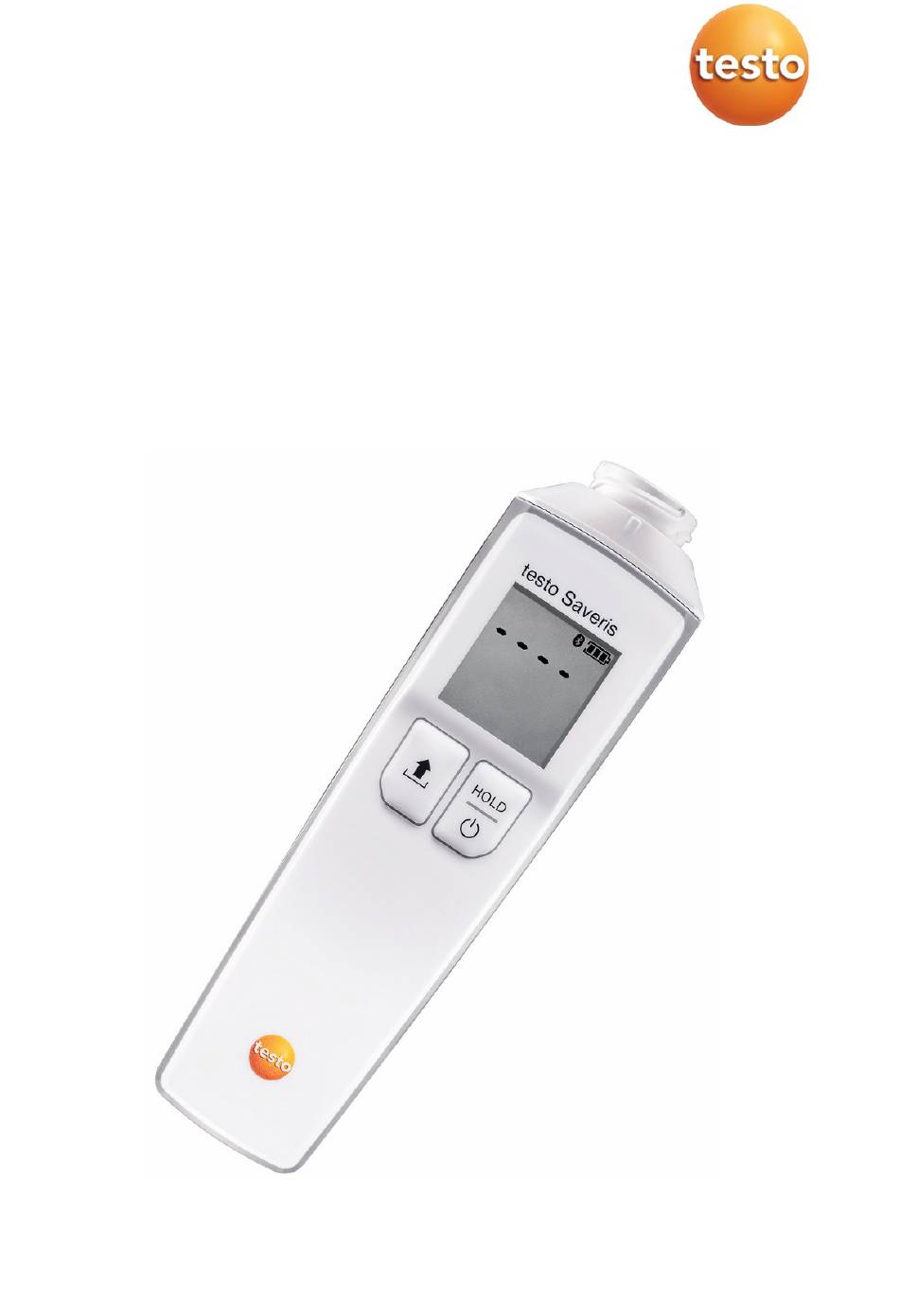

    The testo Saveris multi-functional handle is equipped with a display and transmits the measurement data, which are generated with exchangeable probe measuring tips, to the testo Saveris Control Unit via an existing Bluetooth ® connection. The testo Saveris multi-functional handle meets all the standard compliance requirements relevant to food.

  • Page 9: Scope Of Delivery

    3 Description of the instrument Scope of delivery 1 testo Saveris multi- functional handle 2 Wall bracket for probe measuring tips (with multi-functional handle) 3 4 x AA batteries 4 Screwdriver...

  • Page 10: Testo Saveris Multi-Functional Handle

    3 Description of the instrument testo Saveris multi-functional handle Overview 3.2.1 Element Element 1 Connection for probe measuring 2 Display tips Send button (not functional) On/Off/TTS activation 5 Battery compartment (on rear) Displays 3.2.2 Display Function/property Battery capacity 100% Battery capacity 66% Battery capacity 33% Battery capacity <...

  • Page 11: Probe Measuring Tips (Not Included In The Scope Of Delivery)

    3 Description of the instrument Probe measuring tips (not included in the scope of delivery) The testo Saveris multi-functional handle and the attached probe measuring tips together form a handy measuring instrument for fast temperature measurement and cooking oil testing.

  • Page 12: Testo Saveris Penetration Temperature Probe

    3 Sensor 3.3.2.2 With the testo Saveris cooking oil probe, the total polar materials (TPM value) is determined as a percentage. The TPM value enables a statement to be made on the ageing of the cooking oil due to the effects of heat.

  • Page 13: Operation Check

    The reference value must be determined again if the type of oil or oil supplier changes. Where there are implausible readings, we recommend calibration or adjustment in testo reference oil (order number 0554 2650). For this, follow the instructions on the testo Saveris App.

  • Page 14: Testo Saveris Surface Temperature Probe

    3 Description of the instrument testo Saveris surface temperature probe 3.3.3 Overview 3.3.3.1 Element Element 1 Connection plug 2 Union nut 3 Flexible shaft 4 Surface temperature probe 3.3.3.2 The surface temperature probe enables surface temperature measurements to be carried out swiftly using contact measurement. The long and partially flexible shaft allows easy adaptation to the measuring conditions existing on site and ensures fast and safe measurement without any risk of burns.

  • Page 15: Operation Check

    3 Description of the instrument Operation check 3.3.4.3 For a simple function test (without calibration), we recommend that you carry out a temperature measurement in ice-cold water (0 °C). testo Saveris TC adapter (type K) 3.3.5 Overview 3.3.5.1 Element Element...

  • Page 16: Commissioning

    Mounting the wall bracket The wall bracket ensures the probe measuring tips are kept securely in place with and without the testo Saveris multi-functional handle. Please choose suitable mounting materials according to the required mounting location (not included in the scope of delivery).

  • Page 17: Commissioning The Testo Saveris Multi-Functional Handle

    Fit the probe measuring tip (see section 5.1). Press the button to switch on the testo Saveris multi-functional handle.  The testo Saveris multi-functional handle is switched on and is in real- time mode.  The current measurement value is shown. Switch off testo Saveris multi-functional 4.3.2...

  • Page 18: Pair Testo Saveris Multi-Functional Handle With Testo Saveris Control Unit

    4 Commissioning Pair testo Saveris multi-functional handle 4.3.3 with testo Saveris Control Unit So that the testo Saveris multi-functional handle can be connected to the testo Saveris Control Unit (order no. 0573 2600/0573 2601) via Bluetooth ® , you must be logged onto the testo Saveris App on the testo Saveris Control Unit.

  • Page 19: Auto-Off Function

    4 Commissioning Auto-Off function 4.3.4 You can enable or disable the Auto-Off function in the settings for the testo Pair devices, Pair handheld measuring instrument. Saveris Control Unit, When the Auto-Off function is enabled, the testo Saveris multi- functional handle automatically switches off when it has not been used for 10 minutes to save energy.

  • Page 20: Operation

    (quality control). If the handle is in TTS mode, the results are automatically transmitted to the testo Saveris Control Unit at the end of the measurement. Fit probe measuring tips onto the testo...

  • Page 21: Measuring With Temperature Stabilization Mode (Tts)

     The reading display flashes on the display.  As soon as the reading is stable, it is automatically transmitted to the testo Saveris Control Unit. flashes briefly.  The multi-functional handle goes back to real-time mode. As soon as the penetration temperature probe measures a temperature drop, a new measurement can be carried out in TTS mode (>...

  • Page 22: Special Information For Measurement

    - Allow the probe measuring tip to cool sufficiently before cleaning. - In the event of burns, immediately cool the relevant spot with cold water and see a doctor if necessary. testo Saveris penetration temperature probe 5.2.3.1 For core temperature measurement in liquid and semi-solid foods, carefully place the penetration temperature probe in the medium and carry out the measurement.

  • Page 23: Testo Saveris Surface Temperature Probe

    Otherwise this may result in measuring inaccuracies.  The surface temperature probe is fitted onto the testo Saveris multi- functional handle. Position the measuring head flatly on the surface. Apply pressure to the probe measuring head by way of the flexible...

  • Page 24: Testo Saveris Air Temperature Probe

    CAUTION Sensitive sensor technology! - Handle with care, do not expose to any kind of impact. testo Saveris TC adapter (type K) 5.2.3.5 Connect the TC adapter to the instrument requiring validation in the place intended for this. The reverse-polarity protection on the TC adapter means the plug can only be connected in one way.

  • Page 25: Maintenance And Care

    You will find detailed instructions for changing batteries under point 4.1. Only use Mignon (AA) batteries (included in the scope of delivery). If other energy sources are used, this may lead to the testo Saveris multi- functional handle having reduced operability.

  • Page 26: Testo Saveris Penetration Temperature Probe

    6.3.1 probe Only clean sensor gently with a soft paper towel or rinse under running water. Carefully dry sensor with a soft paper towel. testo Saveris cooking oil probe 6.3.2 CAUTION Improper handling! Damage to the sensor possible! - Do not remove cold oil residues from the sensor.

  • Page 27: Testo Saveris Air Temperature Probe

    Only clean air temperature probe gently with a soft paper towel or rinse under running water. Carefully dry air temperature probe with a soft paper towel. testo Saveris TC adapter (type K) 6.3.5 Only clean TC adapter (type K) gently with a soft paper towel or rinse under running water.

  • Page 28: Questions And Answers

    We recommend technical checking of the instrument by Testo Customer Service. If we were not able to answer your question, please contact Testo Customer Service. See the back of this document or the www.testo.com/service-contact web page for contact details.

  • Page 29: Technical Data

    8 Technical data 8 Technical data Feature Value Resolution Temperature: 0.1°C / 0.1°F Measuring unit °C/°F Temperature measuring -30 to 260°C/-22 to 500°F range Temperature accuracy ± 0.3°C (-30 to 70°C); remaining range: ± (0.3°C + 0.5% of measured value), in each case ± digit (Note: accuracy of the individual temperature probes is added up) Power supply (battery)

  • Page 30: Order Numbers

    0554 2620 Case including case inlay 0516 2620 testo reference oil (x 1) 0554 2650 testo Saveris cooking oil probe adapter 0554 2623 Please get in touch with your Testo contact partner for more detailed information about ISO calibration certificates.

  • Page 31: Authorizations

    IC Warnings China CMIIT ID:2017DJ6244 Europa + EFTA The EU Declaration of Conformity can be found on the testo homepage www.testo.com under the product specific downloads. EU countries: Belgium (BE), Bulgaria (BG), Denmark (DK), Germany (DE), Estonia (EE), Finland (FI), France...
  • Page 32 10 Authorizations Product Mat.-No. Date Japan Japan Information ICASA ID: TA-2017/919 South Africa South Korea MSIP-CRM-te2-05601010 KCC Warning Turkey Approved Containts FCC ID: N8NLSD4BTL FCC ID: WAF-05601010 FCC Warnings Feature Values Bluetooth ® Range < 20 m (free field) Bluetooth ®...
  • Page 33 10 Authorizations (2) cet appareil doit supporter toute interférence, y compris des interférences qui provoquerait des opérations indésirables. FCC Warnings Information from the FCC (Federal Communications Commission) For your own safety Shielded cables should be used for a composite interface. This is to ensure continued protection against radio frequency interference.
  • Page 34 Testo SE & Co. KGaA Testo-Strasse 1 D-79853 Lenzkirch Germany Phone: +49 7653 681-0 Fax: +49 7653 681-7699 E-mail: info@testo.de www.testo.com 0970 2608 en 01...
