Summary of Contents for TESTO 416

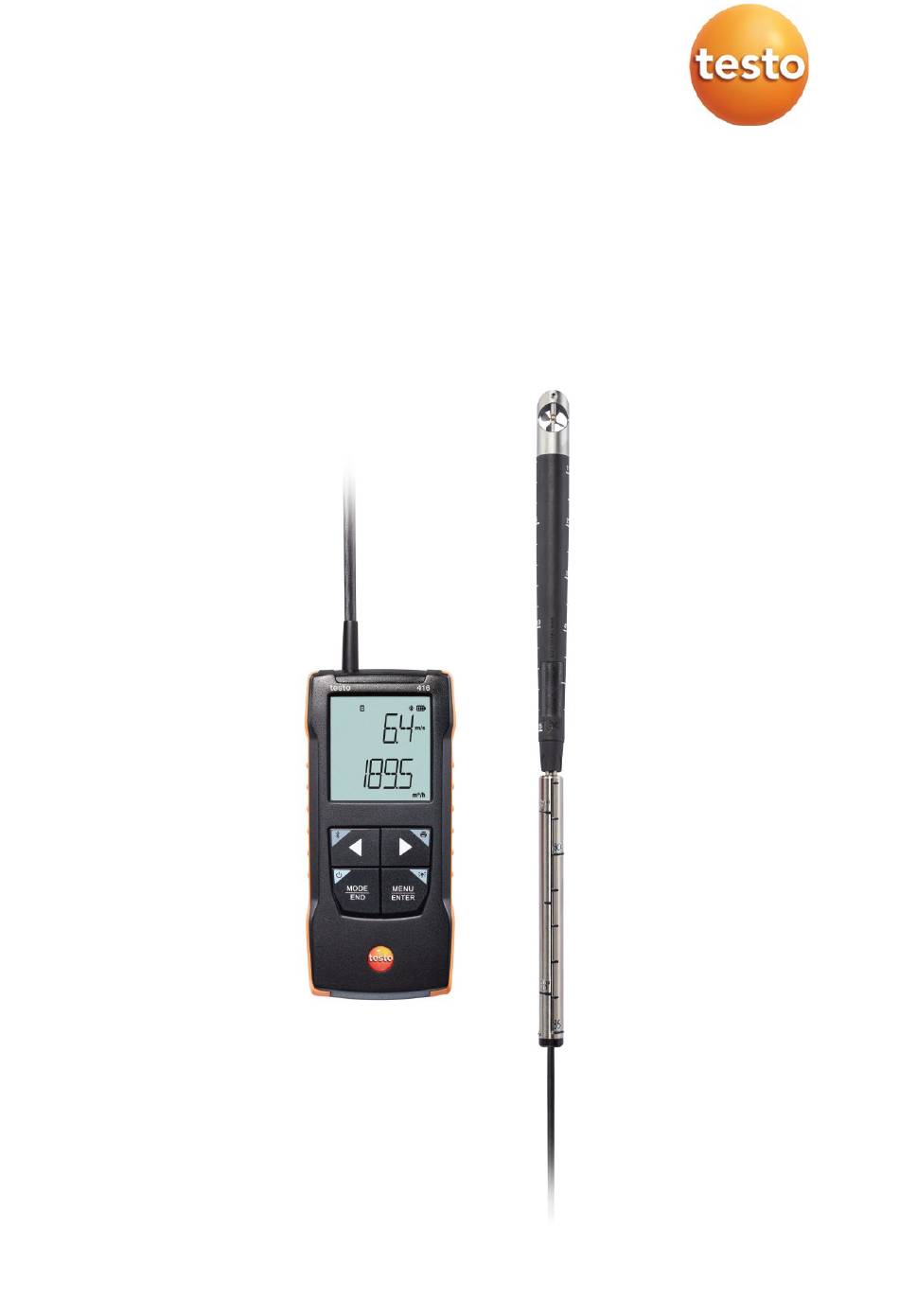

- Page 1 416 - Digital 16 mm vane anemometer 0560 0416 Instruction manual...
-
Page 2: Table Of Contents
6.2.3 Establishing a Bluetooth ® connection ............. 9 Establishing a Bluetooth ® connection to the testo Smart App ....10 6.3.1 Using the product ................11 Controls on the measuring instrument ..........11 Implementing settings ................12 7.1.1 Opening configuration mode ..............13 7.1.2... - Page 3 Perform Firmware update ..............31 Maintaining the product ..............32 Inserting / changing batteries ............... 32 Cleaning the instrument ............... 32 Technical data for testo 416.............. 33 Tips and assistance ................34 Questions and answers ............... 34 11.1 Accessories and spare parts..............35...
-
Page 4: About This Document
• described in this documentation. Follow the prescribed steps exactly when doing the work. • Use only original spare parts from Testo. Batteries • Improper use of batteries may cause the batteries to be destroyed, or lead to injury due to current surges, fire or escaping chemicals. -
Page 5: Disposal
• At the end of its useful life, deliver the product to the separate collection point for electric and electronic devices (observe local regulations) or return the product to Testo for disposal. • WEEE Reg. No. DE 75334352... -
Page 6: Product-Specific Information
• documentation for the purposes of maintenance or servicing. 4 Intended use The testo 416 is a compact measuring instrument for measuring flow velocities by means of a permanently connected telescopic vane. It is intended for indoor use only. The product is designed for the following tasks/areas: •... -
Page 7: Product Description
5 Product description 5 Product description Instrument overview 1 Control keys 2 Display 3 Probe 4 Battery compartment Explanation of icons Refer to instruction manual CAUTION Damage to sensor possible! - Do not touch sensor! - Close the protective sleeve after the measurement. -
Page 8: First Steps
6 First steps 6 First steps Inserting / changing batteries WARNUNG Serious risk of injury to the user and/or destruction of the instrument. There is a risk of explosion if the batteries are replaced with ones that are the wrong type. - Only use non-rechargeable alkaline batteries. -
Page 9: Getting To Know The Product
6 First steps Getting to know the product Connecting probes 6.2.1 The required probes are permanently connected or integrated. It is not possible to connect any additional sensors. Switching the instrument on and off 6.2.2 Switching on On/Off Press the key (0.5 sec). -
Page 10: Establishing A Bluetooth Connection
6 First steps Establishing a Bluetooth connection ® The instrument can be connected to the testo Smart App via Bluetooth ® connection The measuring instrument is switched on. To enable the Bluetooth ® connection for the first time, press and hold (approx. -
Page 11: Establishing A Bluetooth ® Connection To The Testo Smart App
If necessary, switch the instrument to be connected off and on again to restart the connection module. When the testo Smart App is connected to the measuring instrument, icon appears on the measuring instrument display. The measuring instrument automatically synchronizes its date and time settings with the testo Smart App. -
Page 12: Using The Product
7 Using the product Controls on the measuring instrument The instrument is switched on. The testo Smart App is installed on the smartphone and connected to the instrument via Bluetooth ® Settings and controls are implemented either on the instrument or via ... -
Page 13: Implementing Settings
7 Using the product Parameter 2 selected unit Print ► Illumination MENU/ENTER Implementing settings 7.1.1 Selecting, opening and setting functions Press the relevant key to select the functions Secondary assignment (long press) All keys with a grey corner have a secondary assignment, which can be selected by pressing and holding the key for a longer time (2 sec). -
Page 14: Opening Configuration Mode
7 Using the product Function Setting options/comments MENU/ENTER Open configuration mode Start continuous measurement / record multi-point readings (Operation also possible directly on measuring instrument if it is connected to the app) In configuration mode: Confirm input Print (long press) Output readings via external printer Arrow right In configuration mode:... -
Page 15: Setting The Area
MENU/ENTER: NO: Do not carry out reset. YES: Carry out reset. All concealed menus that were hidden via the testo Smart App are displayed again. The instrument returns to measurement view. Carrying out a reset of the measuring 7.1.6... -
Page 16: Measuring
7 Using the product Measuring The instrument is switched on and is in the measurement view. Position the probe. Position the probe head in the flow so that the point marking shown on the probe head is exposed to the flow. -
Page 17: Carrying Out Multi-Point Mean Calculation
7 Using the product Carrying out multi-point mean calculation 7.2.3 Press MODE/END. flashes. The number of readings recorded is displayed in the upper line, while the current reading is displayed in the lower line. To record readings (in the desired quantity): Press MENU/ENTER (several times). -
Page 18: Carrying Out Continuous Mean Calculation
7 Using the product Carrying out continuous mean calculation 7.2.4 Press MODE/END twice. flashes. The elapsed measuring time (mm:ss) is displayed in the upper line, while the current reading is displayed in the lower line. Start measurement: Press MENU/ENTER. To interrupt/continue measurement: MENU/ENTER Press... -
Page 19: Printing Data
/IRDA printer (order no. 0554 0621) is connected ® via Bluetooth and switched on. When first setting up a connection between the testo measuring /IRDA printer, the initialization instrument and the testo Bluetooth ® phase can last up to 30 seconds. -
Page 20: Controls Via Testo Smart App
8 Controls via testo Smart App 8 Controls via testo Smart App If the measuring instrument is connected to the testo Smart App, it is primarily operated via the app. The measuring instrument remains in the measurement view and settings menus cannot be opened on the measuring instrument. - Page 21 8 Controls via testo Smart App Additional symbols on the user interface of the app (not numbered) One level back Exit view Share measurement data/report Searching Favourite Deleting Further information Display report Multiple selection Main menu can be accessed via the icon at top left.
-
Page 22: App Options
Select Instrument information. The version number of the app and the ID are displayed. Displaying the tutorial 8.2.3 The tutorial guides you through the first steps in operating the testo Smart App. Click on Select Help and Information. ... -
Page 23: Application Menus
8 Controls via testo Smart App Application menus Selecting an application menu 8.3.1 Click on A selection of menus for various applications is displayed. Select the required application. Your selected application is displayed. Setting favourites 8.3.2 Click on A selection of menus for various applications is displayed. -
Page 24: Making Measuring Instrument Settings
8 Controls via testo Smart App Making measuring instrument settings The measuring instrument is connected to the testo Smart App. Click on The main menu opens. Click on Sensors. Sensors menu opens. Click on the required measuring instrument. - Page 25 8 Controls via testo Smart App Click on the blue text under a setting heading to activate or disable settings or to open an input window to enter a specific value or select a unit. For details on the settings options, see the following sub-sections.
-
Page 26: Configuring The Measuring Instrument Menu
8 Controls via testo Smart App Configuring the measuring instrument 8.4.1 menu The testo Smart App can be used to set which settings menus should be available or hidden on the measuring instrument itself. Settings tab in the Sensors menu is open. -
Page 27: Setting Auto Off
8 Controls via testo Smart App Deactivate the checkboxes for the measuring instrument menus that are no longer to be displayed on the measuring instrument itself. The menus belonging to the deactivated entries will no longer be displayed in the measuring instrument menu after the next synchronization. -
Page 28: Setting The Correction Factor
For example: If 20% of the area is covered, the correction factor must be set to 0.8 (80% free space). The correction factor can only be set via the testo Smart App and not directly on the measuring instrument. Settings tab is open. -
Page 29: Display Of The Readings
8 Controls via testo Smart App Enter the value for the cross-sectional area and save. The changes are transferred to the measuring instrument and synchronization with the app is confirmed on the measuring instrument via “SYNC DONE”. Display of the readings The available readings can be displayed in different views. -
Page 30: Exporting Readings
8 Controls via testo Smart App Exporting readings Export Report Delete Click on Select Memory. Click on Select measurement. -
Page 31: Excel (Csv) Export
Create PDF with all readings is only possible up to 30 pages, due to the resulting file size and number of pages. In the testo DataControl software, however, PDF reports can be created for all measurements without any restrictions. ... -
Page 32: Perform Firmware Update
8 Controls via testo Smart App Perform Firmware update Enable update for connected instruments Ensure that the option for Instrument Information is always enabled. If a new firmware is available for your measurement instrument, an update notification is shown after connecting the instrument with the testo Smart App. -
Page 33: Maintaining The Product
9 Maintaining the product After the update the measuring instrument is restarting. The firmware can be checked in the instrument menu or via the app. A restart of the testo Smart App is recommended after the instrument update. 9 Maintaining the product... -
Page 34: Technical Data For Testo 416
Adjustment conditions for flow probes: • Adjustment in free jet Ø 350 mm, reference pressure 1013 hPa, based on testo reference Laser Doppler Anemometer (LDA). Low flow velocities may result in greater measurement uncertainties • during humidity and temperature measurement! The probe should be switched on outside a duct under the following conditions: Ambient temperature: 20°C... -
Page 35: Tips And Assistance
Ambient temperature is Increase ambient sluggishly very low temperature Display: ----- Sensor error Please contact your dealer or Testo Customer Service. Display: OOOOO Permissible measuring Keep within the permissible range has been exceeded measuring range Display: UUUUU Permissible measuring Keep within the permissible... -
Page 36: Accessories And Spare Parts
11 Tips and assistance If we have not been able to answer your question: please contact your local dealer or Testo Customer Service. See the back of this document or the www.testo.com/service-contact web page for contact details. 11.2 Accessories and spare parts Description Order no. - Page 37 Testo SE & Co. KGaA Celsiusstr. 2 79822 Titisee-Neustadt Germany Phone: +49 (0)7653 681-0 E-mail: info@testo.de www.testo.com 0970 9416 en 01 - 12.2022...
