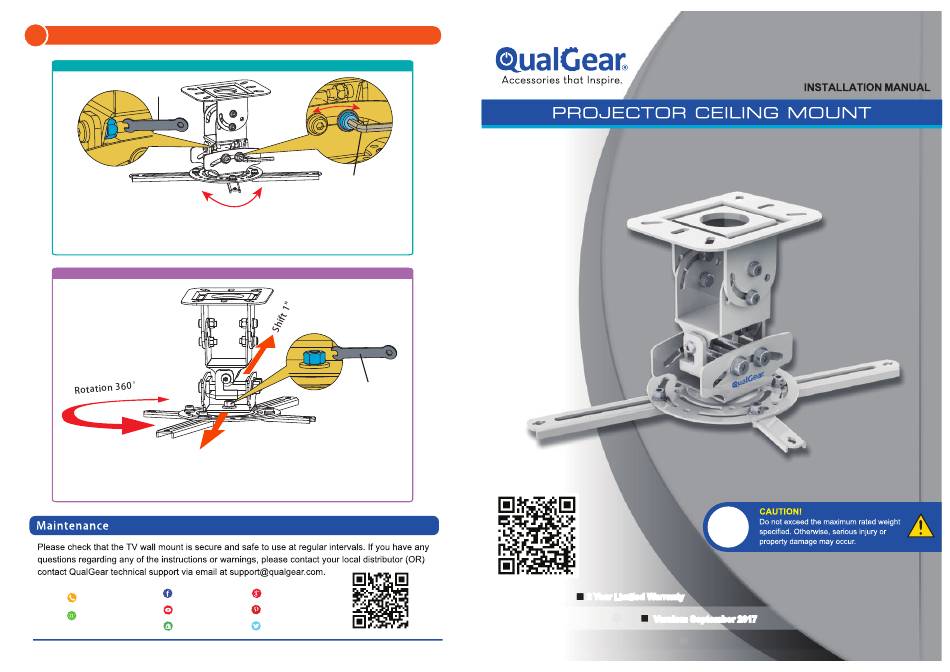

Adjusting the Projector (Part 2 of 2)
Roll Adjustment
F
To make Roll adjustment, first ensure that weight of the projector is supported.
Then loosen both M6x70mm bolts with the supplied Allen Key (E) and Wrench (F),
and adjust to your desired position. Re-tighten both screws firmly.
Rotation/Shift Adjustment
To make Rotation / Shift adjustment(s), first ensure that weight of the projector is
supported. Then loosen the center M6x16mm screw slightly with the supplied
Wrench (F), and adjust to your desired position. Re-tighten the screw firmly.
