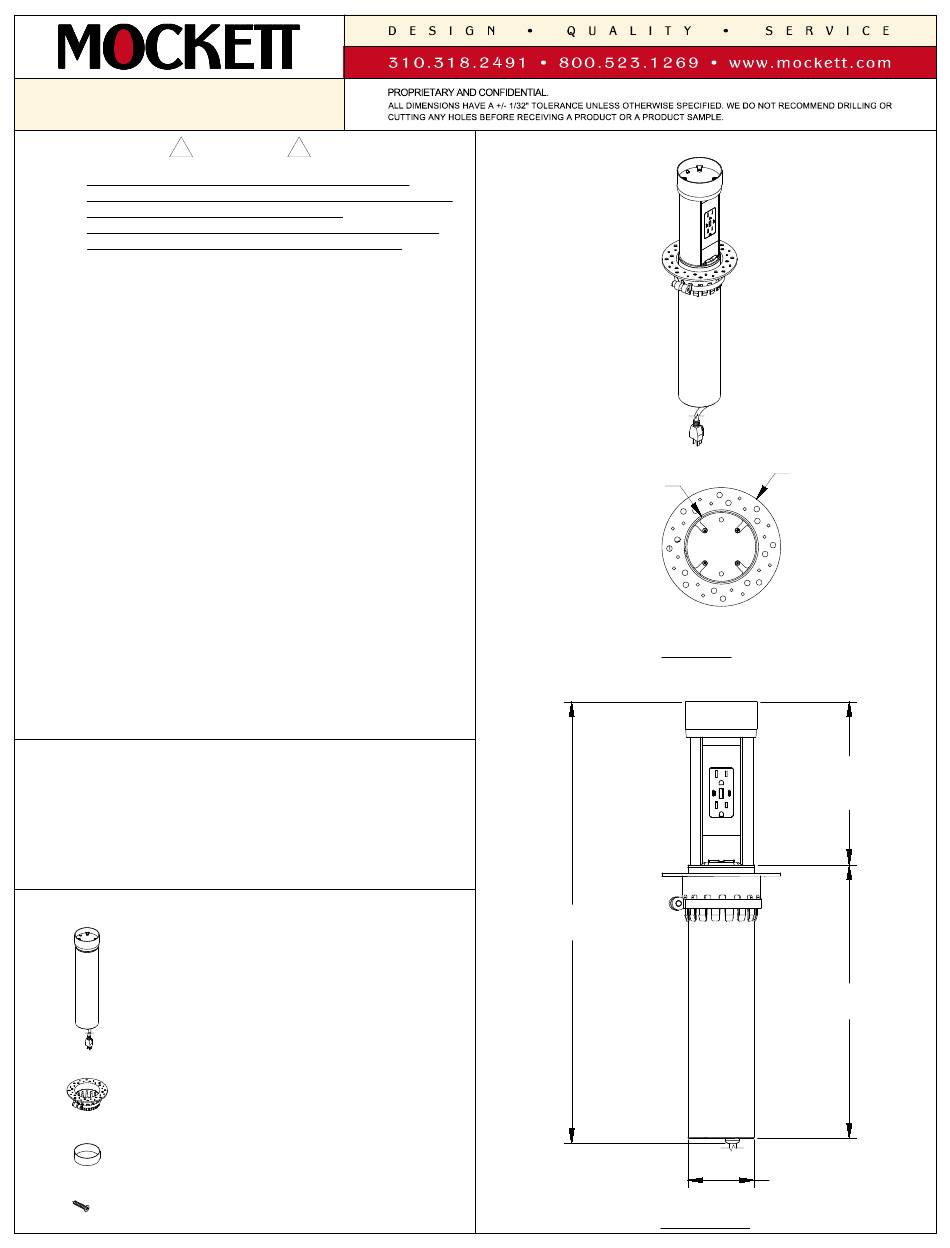

Mockett PCS136 Manual

PCS136
!
· For installation by a qualified person in accordance with
National Electrical Code and local regulations. Not a DIY install.
·
Must be installed by a licensed professional.
·
DANGER: Risk of electric shock, unit must be connected to a
GFCI receptacle or connected to a GFCI branch circuit.
· Risk of electric shock. Disconnect power before installation.
· For indoor use only.
· For use on normally dry work surface only.
· If any malfunction occurs, do not attempt to disassemble or
repair.
·
GFCI Protection: While the unit itself doesn't provide
compliance with NEC 406.5(E). It can be achieved by
connecting unit to a GFCI-protected circuit during installation.
This setup ensures necessary protection against ground faults.
By adhering to these standards and installation practices, the
unit connect meets the requirements set forth in NEC 406.5(E)
for countertop receptacles.
·
Avoid placing the unit in a high temperature environment or
near fire.
·
Do not plug into another power distribution unit.
·
Allow enough clearance for part operation.
·
Never install horizontally with the sockets facing up. Sockets
must be vertical at all times
· Not to be used as a toy.
· Always exercise a high degree of caution when using any
electrical devices.
·
Avoid spills where possible and never spray water directly into
an open unit.
·
Do not use if any components of the unit are broken or faulty.
·
Unit should be always be accessible under the countertop for
easy removal.
· Suitable for installation in a kitchen countertop surface.
· Do not force the unit down when in the open position.
· Remove all plugs and cords from the outlets and USB ports
before closing unit.
SPECIFICATIONS
·
5 ft. cord length.
·
USB-A and USB-C ports are for charging use only.
·
Recommended table thickness is 3/4" [19.00mm] MIN. to
2" [51.00mm] MAX.
· Minimum clearance required is 17-23/32" [450.00mm]
under the work surface.
·
Weight limit for filler material is 1lbs. MAX.
TABLE OF CONTENTS
2025.03.13
WARNING
!
. . . . . . . . . . . 1X PCS136
. . . . . . . . . 1X Under Mount
Bracket
. . . . . . . . 1X Position Sleeve
. . . . . . . . . . . . 6X 3/4"
No.7 Wood Screw
3-25/32" DIA.
[96.00mm]
23-15/32"
[596.00mm]
1
6-5/16" DIA.
[160.00mm]
TOP VIEW
8-21/32"
[220.00mm]
(OPEN)
14-17/32"
[369.00mm]
3-17/32" DIA.
[90.00mm]
FRONT VIEW
