For installation by a qualified person in accordance with
National Electrical Code and local regulations.
Risk of electric shock. Disconnect power before installation.
For indoor use only.
Use copper conductors only; 15A, 14AWG to 12AWG.
For use on normally dry work surface only.
If any malfunction occurs, do not attempt to disassemble or
repair.
Avoid placing the unit in a high temperature environment or
near fire.
This product can expose you to chemicals including lead and
lead compounds, which are known to the state of California
to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65WARNINGS.ca.gov .

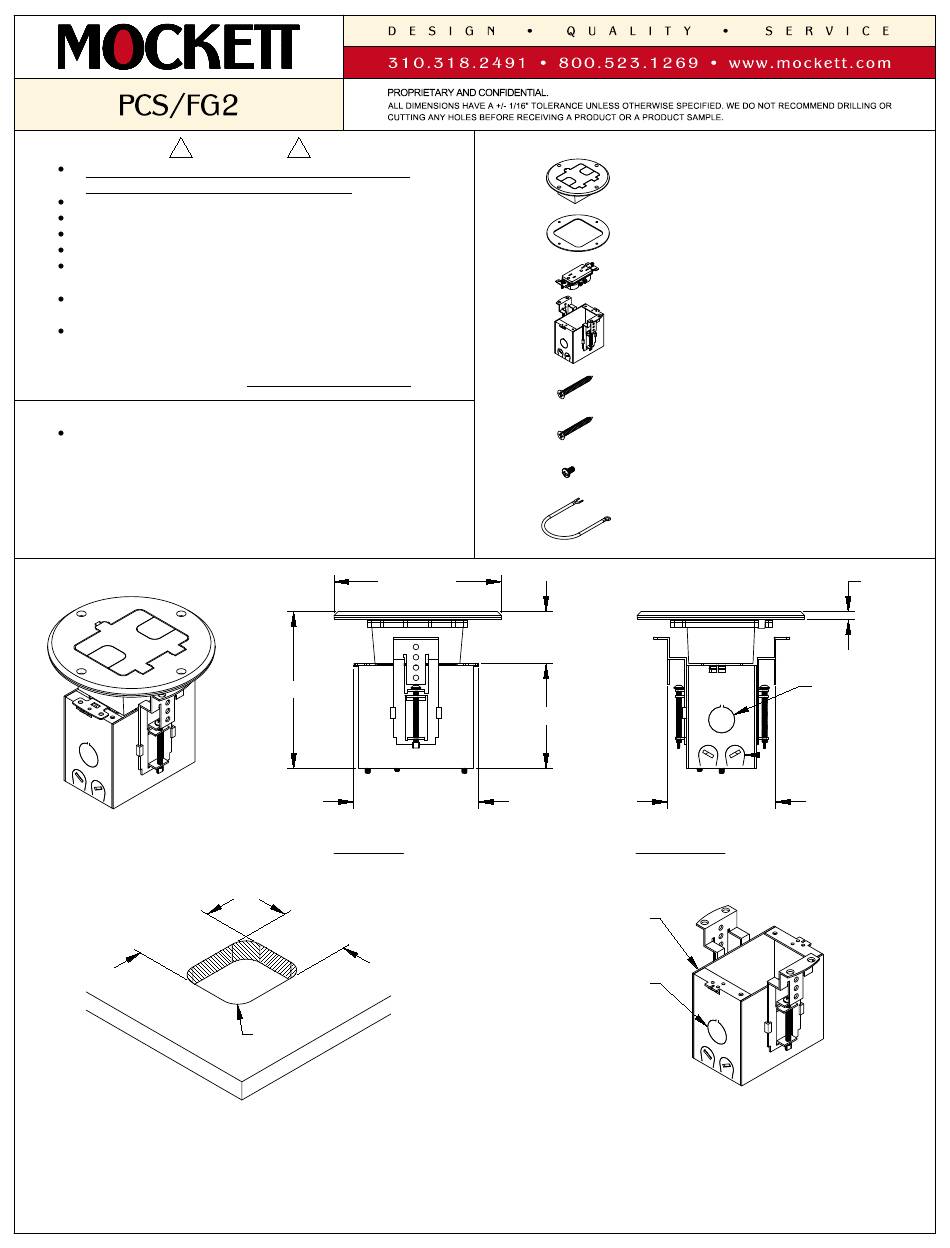

SPECIFICATIONS
Outlet housing is adjustable (up to 3/4") for optimal
alignment and fit.
1
4-1/4"
Determine the position and location of the unit in the work
surface. Before making a cutout in the desired location
ensure that there is sufficient depth and space below the sub
floor. Allow enough clearance for unit operation. Use the
cutout template printout on Page 5.
2024.08.20
WARNING
!
5-5/8" DIA.
5-9/32"
4-7/32"
(4-1/4" CUTOUT)
TOP VIEW
3-23/32"
MAX.
7/8"
RAD.
TABLE OF CONTENTS
1-3/4"
3-17/32"
FRONT VIEW
2
Outlet Housing
2X
1/2" DIA.
Knockout
It is recommended that the unit be installed by a professional
electrician. Installation must comply with National Electric
Code and local regulations. Prepare the outlet housing. Make
sure to disconnect the power before proceeding. Run the
wires through the cutout. Use the knockout to guide the
wires through either side of the outlet housing.
1
. . . . . . . . . . . . . 1X Top Cover
. . . . . . . . . . . . . . 1X Gasket
. . . . . . . . . . 1X Tamper Resistant
Duplex Receptacle
. . . . . . . . . . . 1X Outlet Housing
. . . . . . . . 4X 1-1/2" No. 8 Plated
Flat Head Wood Screw
. . . . . . . . . . . 4X 1-1/2" No. 8
Flat Head Wood Screw
. . . . . . . . . 2X 1/4" 8-32 Thread
Grounding Screw
. . . . . . . . . . . . 1X 6" 14AWG
Grounding Wire
2X
1/2" DIA.
KNOCKOUT
3-21/32"
(3-23/32"
CUTOUT)
9/32"
Advertisement
Related Manuals for Mockett PCS/FG2
Summary of Contents for Mockett PCS/FG2
- Page 1 TABLE OF CONTENTS WARNING For installation by a qualified person in accordance with ... . . 1X Top Cover National Electrical Code and local regulations. Risk of electric shock. Disconnect power before installation. For indoor use only.
- Page 2 Green Tamper Resistant (Ground) Duplex Receptacle Wire Clamps Black White (Hot) (Neutral) Grounding Screw Use copper conductors only; 15A, 14AWG to 12AWG. Connect the wires to the tamper resistant duplex receptacle Secure the wires with the wire clamps inside the outlet by the side wire or push wire.
- Page 3 Adjustment Screws Cover Adjust the height by turning the adjustment screws on the Align the top cover on top of the receptacle. Check to make mounting bracket until the top cover is level onto the work sure it is fully leveled onto the work surface. surface.
- Page 4 1-1/2" Flat Head No. 8 Plated Screwdriver Flat Head Wood Screws (Not included) Cord Access Align the top cover to the receptacle. Secure the top cover Use a flat head screw driver to pop open the lid. Plug in the power cord into the receptacle.
- Page 5 3-23/32" 4-1/4" MAX. 7/8" RAD. NOTE: It is recommended that the unit be installed by a professional electrician. Installation must comply with National Electric Code and local regulations. Print using actual size setting. Make sure template measures to scale before making a cutout. 2024.08.20...
