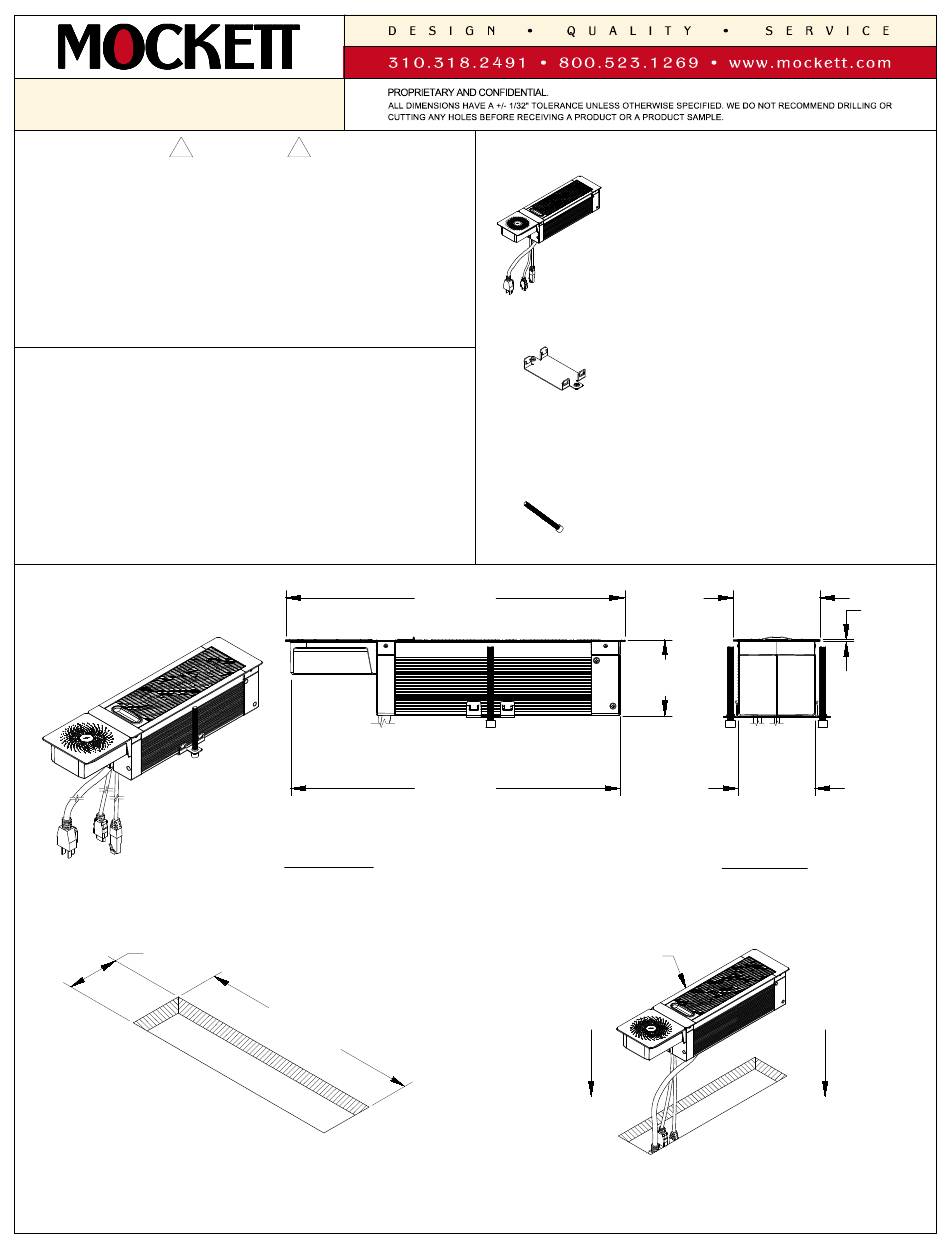

Mockett PCS135B Manual

PCS135B
!
·
For indoor use only.
· Not recommended for use on wet surfaces.
· If any malfunction occurs, do not attempt to disassemble or
repair.
· Allow enough clearance for part operation.
·
Avoid liquid spills into outlet.
·
Do not insert foreign objects into the socket.
·
Avoid placing the unit in a high temperature environment or
near fire.
· Metal objects, bank cards, digital IC cards should not be
placed between the charger and the phone to avoid damage.
SPECIFICATIONS
· 5 ft. cord length.
·
5 ft. data jack cord and HDMI cord length.
·
USB-A and USB-C ports are for charging use only.
·
Recommended table thickness should be 1/2" [12.50mm]
MIN. to 2-3/4" [70.00mm] MAX.
· Wireless charging output is 15W MAX.
· Minimum clearance required is 10" [254.00mm] under the
work surface.
· Mobile device must be equipped with a wireless charging
receiver (wireless charging accessories not included). Check
mobile manufacturer for compatibility.
1
3-7/32"
[82.00mm]
CUTOUT
Determine the position and location of the unit on the work
surface. Make a cutout in the desired location on your work
surface. Place and allow enough clearance for unit operation.
DO NOT place unit where the cables are strained or trapped.
2025.02.19
WARNING
!
FRONT VIEW
13-19/32"
[345.00mm]
CUTOUT
13-29/32"
[353.00mm]
13-1/2"
[343.00mm]
2
Guide the power cord through the cutout. Install the unit into
the cutout and make sure it is fully leveled onto the work
surface.
1
TABLE OF CONTENTS
. . . . . . . . . . . 1X PCS134B
. . . . . . . . . 1X Mounting Clamp
. . . . . . . . . . 2X Thumb Screw
3-17/32"
[90.00mm]
3-1/8"
[79.00mm]
3-5/32"
[80.00mm]
RIGHT VIEW
PCS134B
3/32"
[2.00mm]
