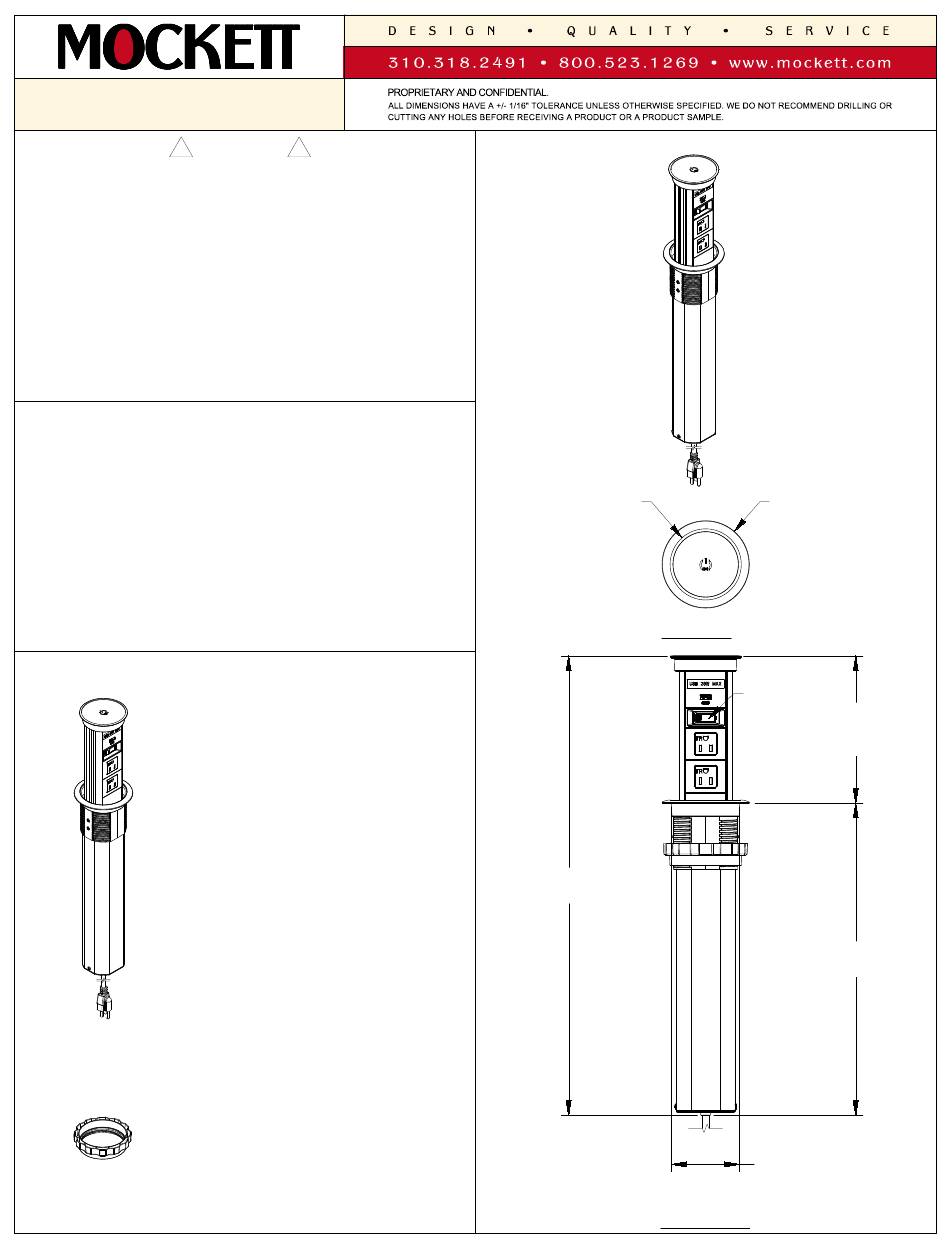

Mockett PCS120/WC/M Manual

PCS120/WC/M
!
·
To reduce the risk of electric shock use indoors.
·
For use on a normally dry work surface.
·
If any malfunction occurs, do not attempt to disassemble or
repair.
· Avoid placing the charger in a high temperature environment
or near fire.
· Allow enough clearance for part operation.
·
Do not place metal on the wireless charging area.
·
Metal objects, bank cards, digital IC cards should not be
placed between the charger and the phone to avoid damage
·
Do not plug into another power distribution unit.
·
Do not use any force to close the housing on the unit.
SPECIFICATIONS
· 6 ft. cord length.
· USB-A and USB-C ports are for charging use only.
· Recommended table thickness is 51.00mm [2"] MAX.
· Wireless output is 20W MAX.
· Minimum clearance required is 432.00mm [17"] under the
work surface.
· Mobile device must be equipped with a wireless charging
receiver (Wireless charging accessories not included.). Check
mobile manufacturer for compatibility.
· Circuit breaker reset is located in the front of the unit.
TABLE OF CONTENTS
2024.12.05
WARNING
!
. . . . . . . . 1X PCS120/WC/M
. . . . . . . . . . 1X Lock Ring
86.00mm DIA.
[3-3/8"]
568.00mm
[22-3/8"]
1
108.00mm DIA.
[4-1/4"]
TOP VIEW
CIRCUIT
BREAKER
RESET
182.00mm
[7-5/32"]
(OPEN)
386.00mm
[15-3/16"]
84.00mm DIA.
[3-5/16"]
(85.00mm DIA.
[3-11/32"]
CUTOUT)
FRONT VIEW
