ENFORCER SD-961A-36 Installation Manual

Push-to-exit bar

Download this manual

Push-to-Exit Bar

Installation Manual

Model

Relays

SD-961A-36

2x Momentary dual-contact (NO/NC/COM): 5A@24VAC/VDC

SD-961B-36

2x Momentary dual-contact (NO/NC/COM): 5A@24VAC/VDC

The ENFORCER Push-to-Exit Bars are designed to allow exit from inside an area normally locked

by an electromagnetic lock, and to disarm or trigger an alarm when the door is opened. Now

available with either brushed aluminum or black finish.

 Two built-in non-latching (momentary) dual-contact switches, NO/NC/COM (SPDT):

5A@24VAC/VDC

 Pushing the bar at any point will send a signal to release the lock and/or sound an alarm

 End caps come off and go on in seconds

 For 36" doors (actual length: 34

 Designed for easy cutting in field to match width of non-standard-sized doors

 Rugged, heavy-duty construction

 Attractive silver or black aluminum bar with black base and trim

 Mounting hardware included for metal or wood doors

 Includes: Armored Door Cord

 Not weatherproof. Do not mount on exterior surfaces or where exposed to rain.

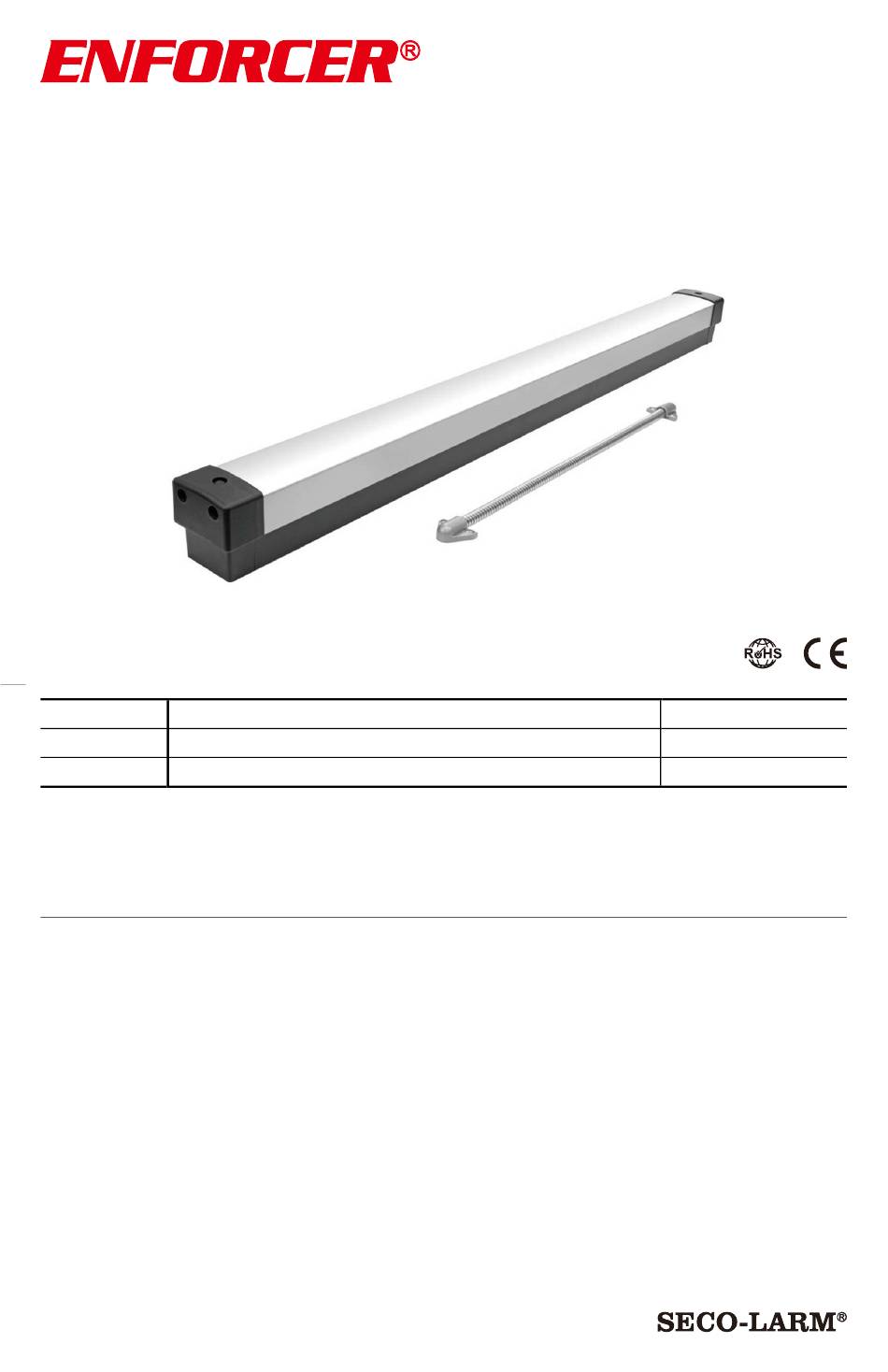

SD-961A-36 shown

Push Bar Finish

Silver aluminum

Black

Need help?

Do you have a question about the SD-961A-36 and is the answer not in the manual?

Page 1 2x Momentary dual-contact (NO/NC/COM): 5A@24VAC/VDC Black The ENFORCER Push-to-Exit Bars are designed to allow exit from inside an area normally locked by an electromagnetic lock, and to disarm or trigger an alarm when the door is opened. Now available with either brushed aluminum or black finish.
Page 2 Push-to-Exit Bar Parts List 1x Push bar 4x Locking washers 1x Key 4x Small plastic caps 4x Sex bolts 1x Large plastic cap 4x Machine screws 4x Wood screws 1x Armored door cord 1x Manual Specifications Contacts type 2x NO/NC/COM (SPDT) Output Contacts rating 5A@24VAC/VDC...
Page 3 Push-to-Exit Bar Installation 1. Remove the two end-cap covers from the aluminum top. Remove the two screws on each end and pull the end-cap covers off. Slide the aluminum top off. 2. Measure the width of the door using inches. For 36" doors, skip to step 3. For narrower doors, you will need to cut the bar.
Page 4 Push-to-Exit Bar Locking the Bar Closed Included with the push bar is a miniature key with a square hole. To lock the push bar closed (to allow two-way, uncontrolled access to the protected area), remove the square-head bolt's round cover, push the bar in all the way, and turn the square-head bolt with the key. To release the bar, turn the square-head bolt again.
