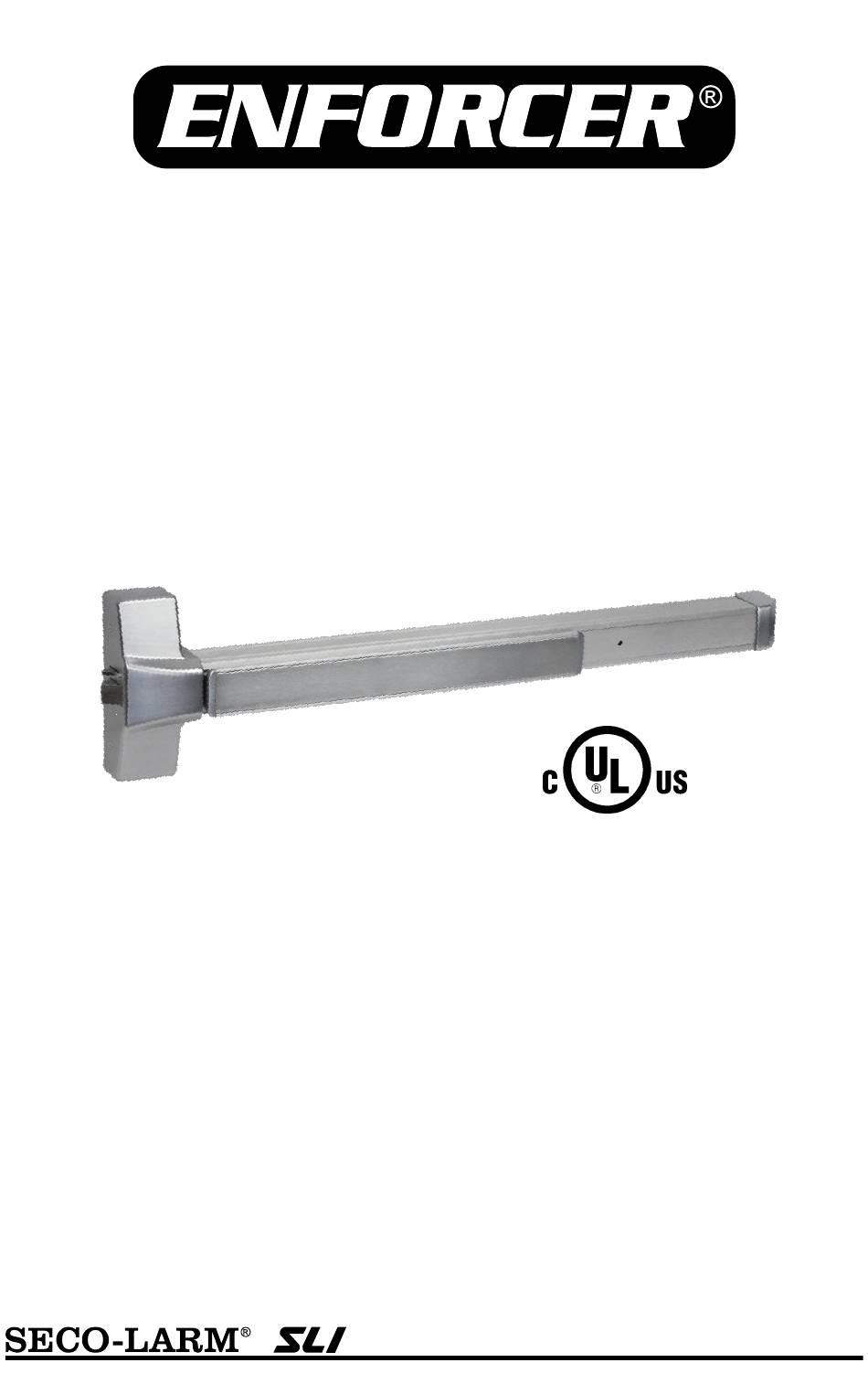

ENFORCER SD-962AR-36G Manual

Grade 1 rim-type exit device

Download this manual

 Heavy-duty ANSI Grade 1 steel

construction

 Allows exit from inside while locked from

outside

 Reversible non-handed design

 For metal or wood doors up to

" (44mm) thick

 Separate deadlocking latch prevents the

use of credit cards or similar means to open

the latch bolt

SD-962AR-36G

Grade 1 Rim-Type Exit Device

Manual

 Fits doors from 33" to 48" (84~122 cm) wide

 Hex-type

device to be unlocked for extended period of

time

 Includes all needed hardware for typical

installation

 Works with standard external door handle/lock

devices (not included)

-turn dogging lock allows the exit

Need help?

Do you have a question about the SD-962AR-36G and is the answer not in the manual?

Page 1 SD-962AR-36G Grade 1 Rim-Type Exit Device Manual  Heavy-duty ANSI Grade 1 steel  Fits doors from 33" to 48" (84~122 cm) wide construction  Hex-type -turn dogging lock allows the exit  Allows exit from inside while locked from...
Page 2 ENFORCER Grade 1 Rim-Type Exit Device Introduction: The ENFORCER SD-962AR-36G Rim-Type Exit Device, when mounted on the inside of a door to block entry to a protected premises, securely locks the door from outside access while allowing users inside the protected premises to exit.
Page 3 ENFORCER Grade 1 Rim-Type Exit Device Overview: Mechanism housing End cap End cap bracket Chassis Dogging device – use hex key to lock in the open position so Strike the door can be Push bar opened from outside the protected...
Page 4 ENFORCER Grade 1 Rim-Type Exit Device Final Installation: NOTE: Diagram shows 6 screws for mounting the chassis. Product only includes 4 screws. For best results, use 6 screws. 1. Mark the vertical center line of the exit bar by drawing a line across the door at 40” above the floor.
