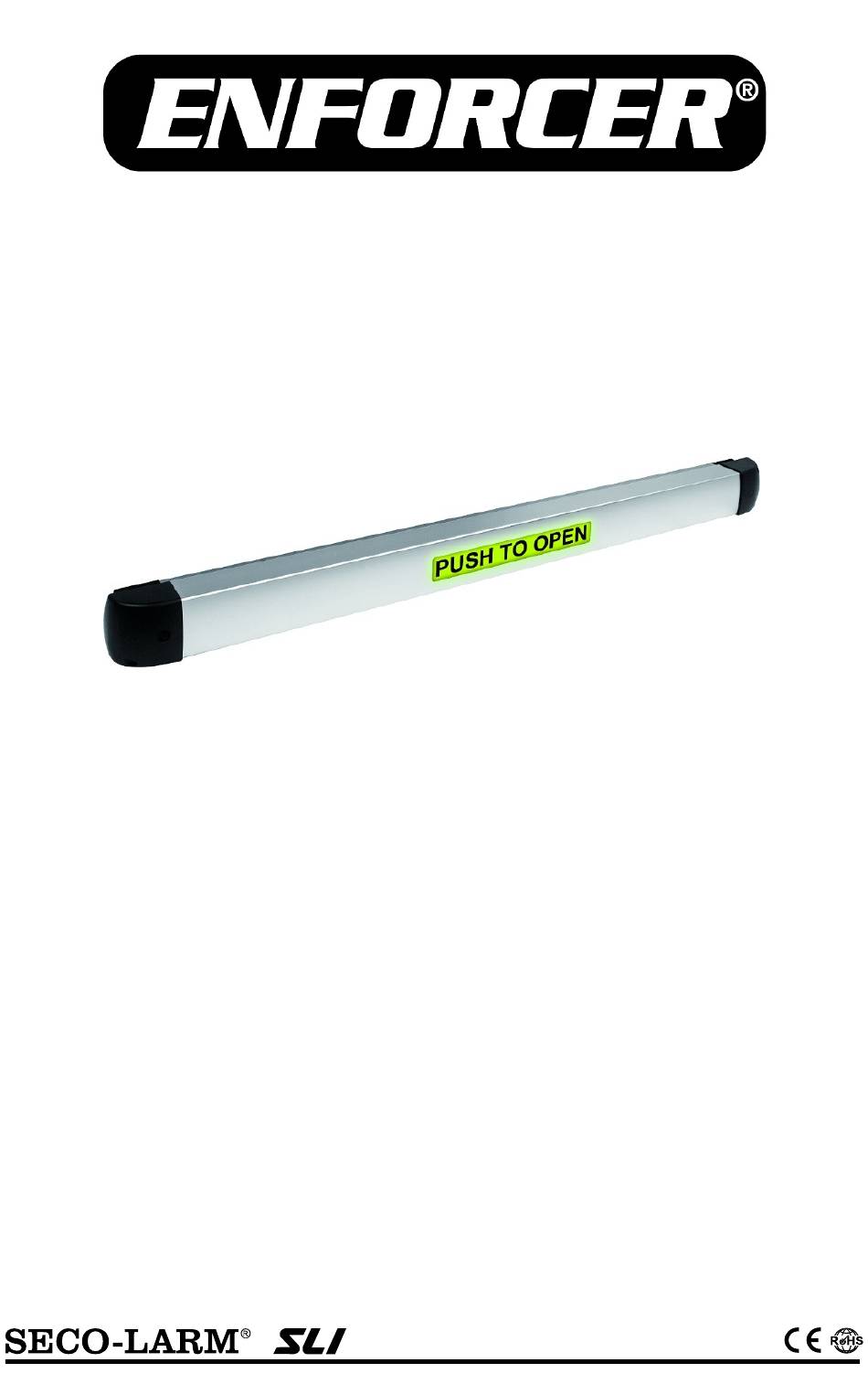

The ENFORCER Illuminated Push-to-Open Bar works with an external electric strike or maglock to
provide egress from a protected area. It can work in stand-alone mode or as part of an access
control system, but also can be locked open by key. Buzzer, output timing, and LED function and
colors are also customizable.
Features:
• Provides convenient on-door egress
• LED makes it easy to see the status
• Can be stand-alone or connected to an
access control system
• Two built-in non-latching (momentary), dual-
contact outputs (NO/NC/COM) rated at
≤5A@230VAC, adjustable 0.5~60 sec
• Dogging – standard dogging with hex key
• For 36" doors – actual length: 33
SD-961A-36SLQ
Illuminated Push-to-Open Bar
7
/
" (85cm)
16
Manual
• Can be cut to fit smaller doors, minimum
23
5
/
" (60cm)
8
• Large LED shows red in standby and green
when triggered, but is programmable
red/green/blue by an access control panel
• Blinking LED and buzzer programmable for
relock warning
• Built-in buzzer indicates unlocked (selectable,
up to 92dB)
®
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ENFORCER SECO-LARM SD-961A-36SLQ
Summary of Contents for ENFORCER SECO-LARM SD-961A-36SLQ
- Page 1 Illuminated Push-to-Open Bar Manual The ENFORCER Illuminated Push-to-Open Bar works with an external electric strike or maglock to provide egress from a protected area. It can work in stand-alone mode or as part of an access control system, but also can be locked open by key. Buzzer, output timing, and LED function and colors are also customizable.
- Page 2 ENFORCER Illuminated Push-to-Open Bar Specifications: Parts List: Specifications Parts List: 1x Illuminated push bar Operating voltage 12~24 VDC Power consumption 180mA@12VDC, 140mA@24VDC (max.) 5x Machine screws Contact load ≤5A@230VAC 1x Dogging key Outputs NO/NC/COM x2 Trigger duration 0.5~60 seconds (adjustable) or dogged open...
- Page 3 ENFORCER Illuminated Push-to-Open Bar Installation (Continued): NOTE: The wiring connection is normally on the d. Measure the door width and subtract from hinged side of the door. 36" (91.4cm). Divide the result in half and carefully mark the base and push bar to cut 4.
- Page 4 ENFORCER Illuminated Push-to-Open Bar Sample Applications and Wiring Diagrams: Stand-Alone Installation (Factory Default) – Switch up for LED/Buzzer warning Door Lock stand-alone mode mode jumper* Auxiliary output † – 12~24VDC Power Supply Buzzer volume Output duration ON (default) The LED can be set to blink while the buzzer sounds control (0.5~60s,...
