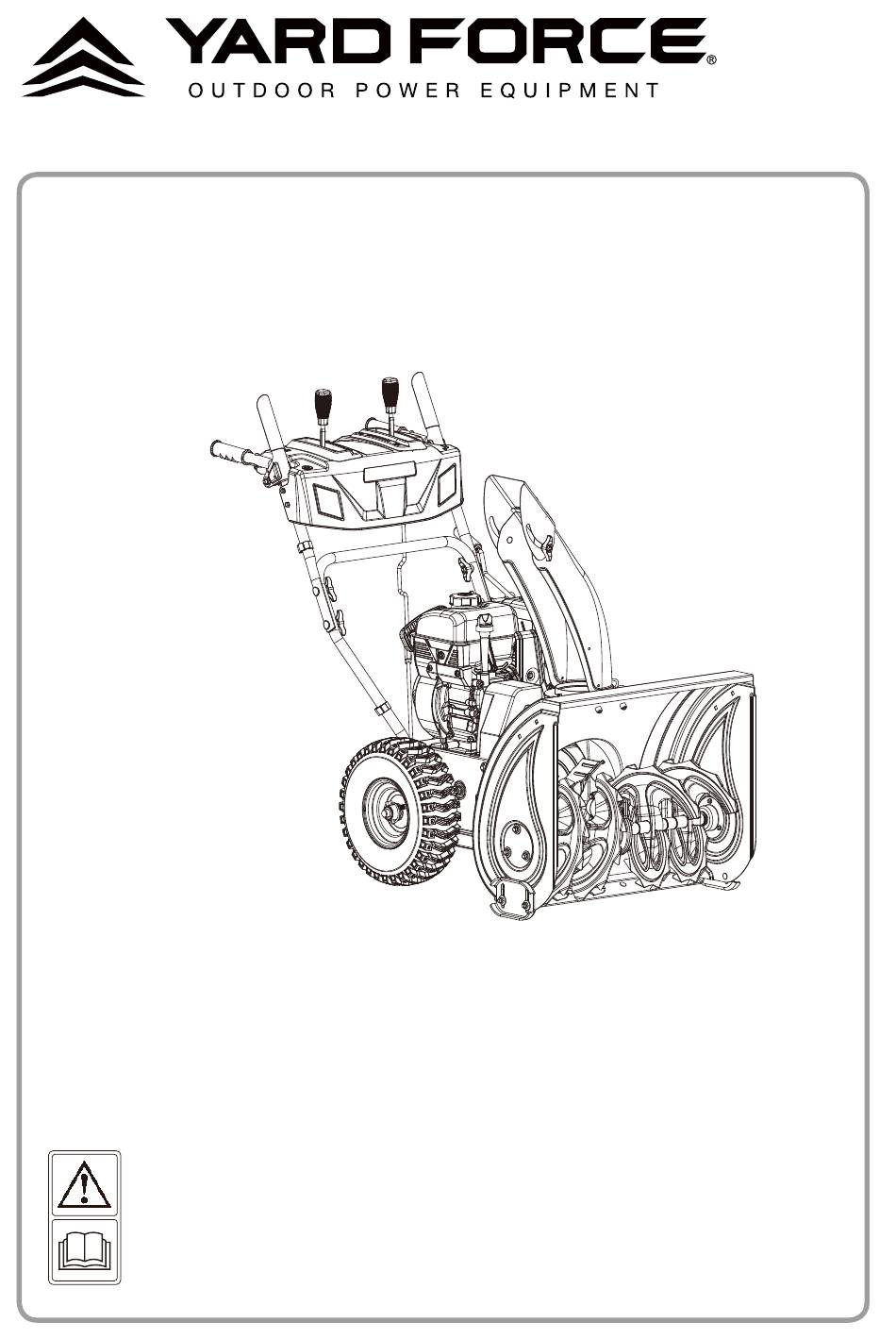

SNOW BLOWER
OWNER'S MANUAL
Our Customer Service staff is ready to provide assistance.
In the case of a damaged or missing part, most replacement parts ship directly from Merotec
USA in Atlanta or from one of our service partners in the US.
For immediate help with assembly, or for additional product information, email support@
MerotecUSA.com or call 866-902-9690 M-F 8:30am – 5:00pm ET. More information can be
found on www.YardForceUSA.com.
SAVE THIS MANUAL FOR REFERENCE
You will need this manual for safety
instructions, operating procedures, and Warranty.
The original sales receipt is required for warranty service.
YF24-DS21-GSB3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YF24-DS21-GSB3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Yard force YF24-DS21-GSB3

Summary of Contents for Yard force YF24-DS21-GSB3

  • Page 1 YF24-DS21-GSB3 SNOW BLOWER OWNER’S MANUAL Our Customer Service staff is ready to provide assistance. In the case of a damaged or missing part, most replacement parts ship directly from Merotec USA in Atlanta or from one of our service partners in the US.

  • Page 2: Table Of Contents

    YF24-DS21-GSB3 Original Instructions TABLE OF CONTENTS Safety Instructions………………..…..…..…..…..…..…..…..…..…..3 Description of Symbols…………..…..…..…..…..…..…..…..…..…...8 Parts List…………..…..…..…..…..…..…..…..…..…....…..…..10 Assembly……………..…..…..…..…..…..…..…..…..…....…....13 Operation…………………..…..…..…..…..…..…..…..…..…....17 Maintenance and Storage………..…..…..…..…..…..…..…..…..…..23 Troubleshooting…………..…..…..…..…..…..…..…..…..…..…..26 Transportation,storage and disposal..…..…..…..…..…..…..…..…..…..29 Warranty……………..…..…..…..…..…..…..…..…..…....…..30...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS GENERAL SAFETY INSTRUCTIONS 1. Use the product correctly.lnjury or death is a possible result of incorrect use. Only use the product for the tasks found in this manual. Do not use the product for other tasks. 2. Obey the instructions in this manual. Obey the safety symbols and the safety instructions. If the operator does not obey the instructions and the symbols.

  • Page 4: Safety Instructions For Operation

    SAFETY INSTRUCTIONS TRAINING 1. Read understand and follow all instructions on the machine and in the manual(s) before operating this unit.Be thoroughly familiar with the controls and the proper use of the equipment.Know how to stop the unit and disengage the controls quickly. 2.

  • Page 5: Personal Protective Equipment

    SAFETY INSTRUCTIONS 2. Disengage all clutches and shift into neutral before starting the engine (motor). 3. Do not operate the product without wearing adequate winter garments. footing on slippery surfaces. a. Use an approved fuel container. b. Never add fuel to a running engine or hot engine. e.

  • Page 6: Fuel Safety

    SAFETY INSTRUCTIONS Let an approved dealer or an approved service center regularly examine the product to do adjustments or repairs. 2. Do not use a product with damaged protective equipment.If the product is damaged,speak to an approved service center. MUFFLER SAFETY correctly and not damaged.
  • Page 7 SAFETY INSTRUCTIONS 1. The exhaust fumes from the engine contain carbon monoxide,an odorless, poisonous and very dangerous gas. Do not start the engine indoors or inclosed spaces. 2. Before you do the maintenance on the product, stop the engine and remove the ignition cable from the spark plug.

  • Page 8: Description Of Symbols

    DESCRIPTION OF SYMBOLS The following symbols may be used on this product. Please study them and learn their meaning. Proper description of these symbols will allow you to operate the product safety. Precautions that involve your safety. To reduce the risk of injury, user must read and understand the instruction manual before operating this product.
  • Page 9 DESCRIPTION OF SYMBOLS Rotating Parts. Never put hand in the chute. Contact with rotating parts can hands. Rotating Impeller. Never use your hands to clear a clogged chute assembly. Shut OFF engine and remain behind handles until all moving parts have stopped before unclogging. Danger: Keep hands and feet away.

  • Page 10: Know Your Snow Blower

    PARTS LIST KNOW YOUR SNOW BLOWER Fig. 1 Drive Lever Lower Handle Assembly Engine Recoil start handle Clearing Tool Wheel Skid Shoes Scraper Bar Augers Auger Housing Oil Fill Fuel tank cap Chute assembly Chute Rotator Auger Lever Shift Lever familiarized with all the parts and controls of your snow blower.The components will be referred to later in the manual for assembly and operation instructions.
  • Page 11 PARTS LIST PARTS LIST Use two people to grasp the rear handle and the front part of the product at the same time and carefully lift the tool up and out of the carton. Remove any other accessories from the carton. Make sure that all items listed in the packing list are included.

  • Page 12: Product Specifications

    PRODUCT SPECIFICATIONS Some parameters may be changed due to improvement, only for reference, not for acceptance. Engine Displacement 212cc 2.2L(0.58 U.S.Gal)Unleaded regular Gasoline capacity and type (maximum 10% ethanol) SAE 5W-30 (below 0°C (32°F) Oil type (API SJ-SN) Oil capacity 0.6 L (20oz) Spark plug F7RTC or equivalent spark plug...

  • Page 13: Assembly

    ASSEMBLY WARNING Do not plug in or turn on the tool until it is fully assembled according to the instructions. Read through and become familiarized with the following procedures of handing and adjusting your tool.Failure to follow the safety instructions may result in serious personal injury.
  • Page 14 ASSEMBLY Fig.6 1. Remove the rotator disk (B) and the six spare parts bag sulpplied. 2. Attach the rotator disk (B) and the chute limits blocks ( C) . and six M6 locking nuts (E) to lock the limits blocks ( C) . See Fig.6.
  • Page 15 ASSEMBLY To assemble the chute rotator Fig.10. 1. Assemble the front end of the chute rotator. 2. Install the plastic bushing (B) to the front end of the chute rotator. (A) and one hairpin (C). See Fig.10. Fig.11 4. Assemble rear end of the chute rotator. 5.
  • Page 16 ASSEMBLY To assemble the wire Fig.14 ATTENTION: If the product has LED lights or heating handle, proceed to the following assembly. 1. Connect the LED light and heating handle cable plug ( B) to the engine output cable plug ( A) See Fig.14.

  • Page 17: Operation

    OPERATION Before you start the product Keep persons and animals away from the work area. Do daily maintenance. See Maintenance on page 2 . Add oil or gasoline, if necessary. See Technical data on page ATTENTION: Fig.16 1. Remove the oil cap and clean the dipstick. 2.

  • Page 18: To Start The Engine

    OPERATION 4. M Fig.18 throwing distance of the snow. See Fig.18 and 19. Note! Fig.19 If the angle de ector cann't reset freely, please adjust the knob Fig.20 To start the engine 1. Release the drive engagement. Put the drive speed contr 2.
  • Page 19 OPERATION 4. Push in the engine key to the RUN position Fig.22 See Fig.22. Fig.23 5. Push the primer 3 times to start the booster pump. Use the booster pump for cold start in low temperatures. See Fig.23. Fig.24 ATTENTION: Do not release the recoil start handle quickly.

  • Page 20: To Operate The Product

    OPERATION ATTENTION: Use an extension cord that is recommended for outdoor use, and that is not longer than 50 feet (15 m). Fig.26 1. Perform 1-5 actions in "to start the engine". 2. Connect the product to power. See Fig.26. Fig.27 If the engine does not start, wait 5 seconds, then push the start button again.
  • Page 21 OPERATION Move the drive speed control lever Fig.30 operate the product forward. Move the drive speed control lever to operate the product rearward. The product with drive speeds has 6 forward speeds and 2 reverse speed. See Fig.30. Fig.31 4. Operate the drive engagement with the right handle.
  • Page 22 OPERATION To operate LED lights Fig.34 ATTENTION : When the engine is working, the LED light can be used normally. 1. After the engine starts, press the "—" icon key to light up the lamp, and press the "o" icon key to turn off the lamp.

  • Page 23: Maintenance And Storage

    MAINTENANCE AND STOARGE Maintenance schedule Maintenace Daily 20 hours 50 hours 100 hours 150 hours Make sure that nuts and screws are × tightened Do a check of the engine oil level × Replace oil 1 × × × Make sure there are no fuel or oil leaks ×...

  • Page 24: To Inspect The Augers And The Scraper Bar

    MAINTENANCE AND STOARGE To examine the spark plug ATTENTION: Always use the recommended spark plug type. Incorrect spark plug type can cause damage to the product. ATTENTION: Always use the recommended spark plug type. Incorrect spark plug type can cause damage to the product.

  • Page 25: To Examine The Tires

    MAINTENANCE AND STOARGE To examine the tires Keep the tires free of fuel, oil and chemicals to prevent damage to the rubber. Keep the tires away from stumps, stones, ruts, sharp objects and other objects which can cause damage to the tires. Keep the tire pressure correct, see Technical data on page WARNING: 1.

  • Page 26: Troubleshooting

    TROUBLESHOOTING IF THESE SOLUTIONS DO NOT SOLVE THE PROBLEM CONTACT CUSTOMER SERVICE. PROBLEM POSSIBLE CAUSE SOLUTION The safety ignition key is not Insert the safety ignition key. inserted. Fill the fuel tank with fresh, clean The product is out of fuel. gasoline.
  • Page 27 TROUBLESHOOTING The choke is in ON (FULL, OPEN) Move the choke to OFF (CLOSE) position. position. The fuel line is blocked. Clean the fuel line. Empty the fuel tank and carburetor. There is water in the fuel or the fuel The engine idles or runs roughly Fill the fuel tank with fresh, clean is too old.
  • Page 28 TROUBLESHOOTING There is debris in the chute rotator Clean the internal parts of the chute mechanism. rotator mechanism. Make sure that the cables are not move kinked. The cables are kinked or damaged. Replace the cables that are damaged. The tire pressure is not equal. tire.

  • Page 29: Transportation,Storage And Disposal

    TRANSPORTATION,STORAGE AND DISPOSAL Transportation and storage 1. For storage and transportation of the product and fuel, make sure that there are no leaks or fumes. 2. Always use approved containers for storage and transportation of fuel. 3. Empty the fuel tank before you put the product in storage for a long period of time. Discard the fuel at an applicable disposal location.

  • Page 30: Warranty

    Yard Force. 3. If service or a warranty evaluation is requested, Yard Force will provide an RGA number that should be used in all communications with Yard Force and is required to be indicated on the product itself and on the outside of the box.

  • Page 31: Need Help

    You can submit a support request by scanning the QR code on this page, or by visiting: www.YardForceUSA.com/contact-support Scan Code to connect with Yard Force Support www.YardForceUSA.com Register your product today to maintain warranty coverage and stay up to date with information on the use, care, maintenance and service of your product.
