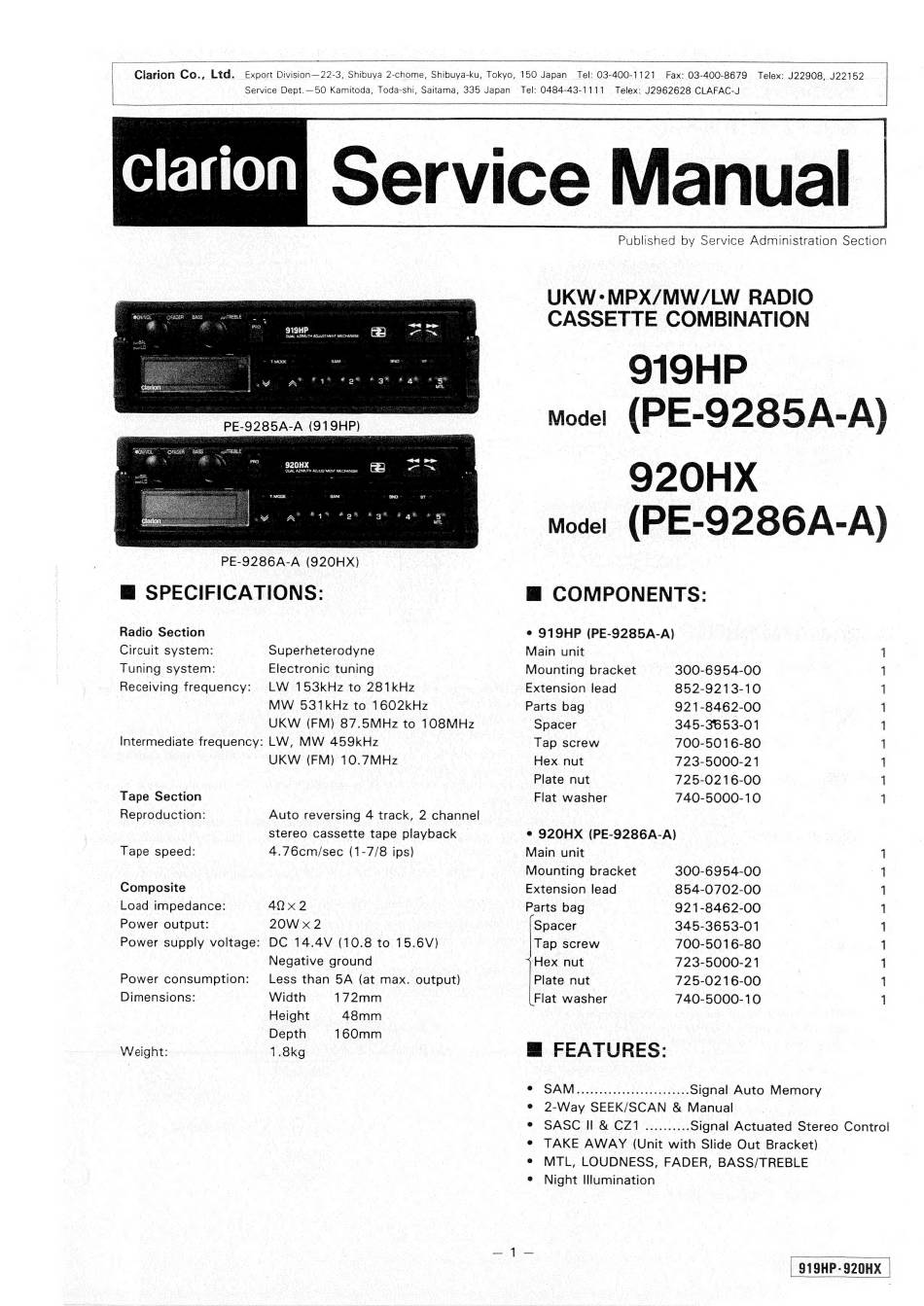

Clarion 919HP Service Manual

hia
Service Dept.—50 Kamitoda, Toda-shi, Saitama, 335 Japan Tel: 0484-43-1111 Telex: J2962628 CLAFAC-J
Clarion Co., Ltd. Export Division—22-3, Shibuya 2-chome, Shibuya-ku, Tokyo, 150 Japan Tel: 03-400-1121 Fax: 03-400-8679 Telex: J22908, J22152
Published by Service Administration Section
SiSHP
RAR ALERT ENE MECHA
PE-9286A-A (920HX)
M@ SPECIFICATIONS: @ COMPONENTS:
Radio Section ¢ 919HP (PE-9285A-A)
Circuit system: Superheterodyne Main unit 1
Tuning system: Electronic tuning Mounting bracket 300-6954-00 1
Receiving frequency: LW 153kHz to 281kHz Extension lead 852-9213-10 1
|
MW 531kHz to 1602kHz
Parts bag
921-8462-00
1
UKW (FM) 87.5MHz to 108MHz Spacer 345-3653-01 1
Intermediate frequency: LW, MW 459kHz Tap screw 700-5016-80 1
UKW (FM) 10.7MHz Hex nut 723-5000-21 1
Plate nut 725-0216-00 1
Tape Section 2 Flat washer 740-5000-10 7
Reproduction: Auto reversing 4 track, 2 channel
| stereo cassette tape playback e 920HX (PE-9286A-A)
Tape speed: 4.76cm/sec (1-7/8 ips) Main unit 1
Mounting bracket 300-6954-00 1
Composite Extension lead 854-0702-00 1
Load impedance:
40x 2
Parts bag
921-8462-00
1
Power output: 20W x 2 Spacer 345-3653-01 1
Power supply voltage: DC 14.4V (10.8 to 15.6V) Tap screw 700-5016-80 1
Negative ground 'Hex nut : 723-5000-21 1
Power consumption: Less than 5A (at max. output) Plate nut 725-0216-00 1
Dimensions:
Width
172mm
Flat washer 740-5000-10
1
Height 48mm
Depth 160mm | 7
Weight: 1.8kg Mm FEATURES:
©. SAM io i peciwlicenewagiaes Signal Auto Memory
e 2-Way SEEK/SCAN & Manual
© SASC HH &- C217 ia. Signal Actuated Stereo Control
e TAKE AWAY (Unit with Slide Out Bracket)
e MTL, LOUDNESS, FADER, BASS/TREBLE
° Night Illumination
_919HP-920HX |
