Clarion DXZ575USB Owner's Manual
  1. Manuals
  2. Brands
  3. Clarion Manuals
  4. Car Receiver
  5. DXZ575USB
  6. Owner's manual
Clarion DXZ575USB Owner's Manual

Clarion DXZ575USB Owner's Manual

Cd/usb/mp3/wma/aac receiver with cenet control
Hide thumbs Also See for DXZ575USB:
Table of Contents

Advertisement

Quick Links

Owner's manual
Mode d'emploi
Manual de instrucciones
DXZ575USB
CD/USB/MP3/WMA/AAC RECEIVER WITH CeNET CONTROL
AUTORADIO CD/USB/MP3/WMA / AVEC COMMANDE CeNET
RECEPTOR DE CD/USB/MP3/WMA/AAC CON CONTROL CeNET
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to consult the dealer or an
experienced radio/TV technician for help.
Cet appareil a été testé et jugé conforme aux limites des appareils numériques de Classe B, aux
termes de la Section 15 des Règlements FCC.
Ces limites ont pour but d'assurer une protection raisonnable contre les interférences parasites
dans une installation résidentielle.
Cet appareil engendre, utilise et peut émettre une énergie radioélectrique et, s'il n'est pas installé
et utilisé en stricte conformité avec ces instructions, il peut provoquer des interférences parasites
sur les liaisons radiophoniques. Ceci ne garantit par pour autant qu'une installation particulière ne
provoquera aucune interférence.
Si l'appareil engendre des interférences sur la réception des ondes radio ou de télévision, ce qui
peut être vérifié en mettant l'appareil hors tension puis sous tension, l'utilisateur est invité à
consulter son revendeur ou un technicien exprimenté en radio/télévision pour lui demander conseil.
Este equipo ha sido probado y se ha comprobado que cumple con los límites de un dispositivo
digital de clase B, según lo indicado en la Parte 15 de las Normas de FCC.
Estos límites se han establecido para ofrecer una protección razonable contra interferencias
perjudiciales en instalaciones residenciales.
Este equipo genera, emplea, y puede radiar energía de radiofrecuencia y, si no se instala y emplea
de acuerdo con las instrucciones, puede causar interferencias perjudiciales en las
radiocomunicaciones. Sin embargo, no se garantiza que las interferencias no ocurran en una
instalación en particular.
Si este equipo causa interferencias perjudiciales en la recepción de radio o de televisión, lo cual
podrá determinarse conectando y desconectando la alimentación del equipo, se aconseja al
usuario que consulte al abastecedor o que pida ayuda a un técnico en radio/televisión
experimentado.
Veuillez déplier et vous référer à la page suivante.
Cerciórese de desplegar y de leer la página siguiente.

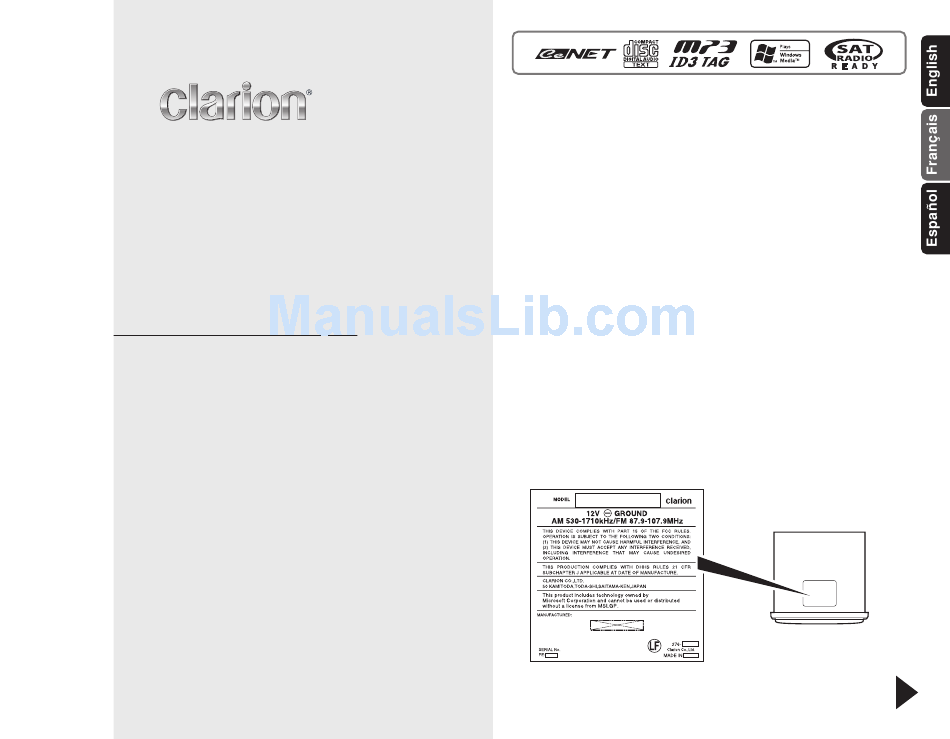

Bottom View of Source Unit
Fond de l'appareil pilote
Vista inferior de la unidad fuente
Be sure to unfold and read the next page.
DXZ575USB
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DXZ575USB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clarion DXZ575USB

Summary of Contents for Clarion DXZ575USB

  • Page 1 Owner’s manual Mode d’emploi Manual de instrucciones DXZ575USB CD/USB/MP3/WMA/AAC RECEIVER WITH CeNET CONTROL AUTORADIO CD/USB/MP3/WMA / AVEC COMMANDE CeNET RECEPTOR DE CD/USB/MP3/WMA/AAC CON CONTROL CeNET This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 2 Once you’re registered, we can keep you informed of important product information. Register at www.clarion.com - it’s easy to keep your Clarion product up to date. INFORMATIONS DE L’ENREGISTREMENT DE PRODUITS CLARION Cher client: [ D ] Nous vous remercions d’avoir acheté...

  • Page 3: Table Of Contents

    Thank you for purchasing this Clarion product. Please read this owner’s manual in its entirety before operating this equipment. After reading this manual, be sure to keep it in a handy place (e.g., glove compartment). Check the contents of the enclosed warranty card and keep it carefully with this manual.

  • Page 4: Features

    3. Do not use the FLIP DOWN PANEL as a tray to place objects on when it is open. 4. When closing the FLIP DOWN PANEL, do not press the [OPEN] button. DXZ575USB CAUTION USE OF CONTROLS, ADJUSTMENTS, OR PERFORMANCE OF PROCEDURES OTHER...

  • Page 5: Handling Compact Discs

    If you try to play such a compact disc, you may not be able to get it back out of the CD player or it may damage the CD player. • Do not use compact discs that have large scratches, are misshapen, cracked, etc.

  • Page 6: Nomenclature

    • Play or pause a track while in the CD/MP3/ WMA/AAC mode. • Press the button to enter the preset memory mode (radio). • Confirm various settings. DXZ575USB [UP], [DN] buttons • Press the button upward or downward to recall the stored station while in the radio mode.

  • Page 7: Display Items

    In extreme cold, the screen movement may slow down and the screen may darken, but this is normal. The screen will recover when it returns to normal temperature. : Digital Z-Enhancer indication : MP3 indication : WMA indication : AAC indication : Sound Restorer indication : Satellite indication : Channel indication : Category indication DXZ575USB...

  • Page 8: Dcp

    [ OPEN ] button 3. Pull the DCP toward you and remove it. 4. Close the HOLD FLAP. HOLD FLAP DXZ575USB CAUTION Be sure to close the HOLD FLAP for safety when removing the DCP. Attaching the DCP 1.

  • Page 9: Remote Control

    • When replacing the battery, insert properly, with +/– polarities oriented correctly. • Do not subject battery to heat, or dispose of in fire or water. Do not attempt to disassemble the battery. • Dispose of used batteries properly. Insertion guide DXZ575USB...

  • Page 10: Functions Of Remote Control Unit Buttons

    • Press and hold the button for 2 seconds or longer to store current station in ISR memory (radio mode only). [DISP] button • Press to select the desired display. DXZ575USB Signal transmitter [ BND ] [ DISP ] [ RDM ]...
  • Page 11 • Moves preset channels up and down. [SCN] button • Press to perform preset scan. • Press and hold the button for 2 seconds or longer to perform auto store. [RDM] button • Press to alternate between TV and VTR. DXZ575USB...

  • Page 12: Operations

    The system check starts within the unit. When the system check is complete, press the [SRC ] button again. DXZ575USB Selecting a mode 1. Press the [SRC] button to change the operation mode. 2. Each time you press the [SRC] button, the...

  • Page 13: Adjusting Sound Mode

    You can adjust the volume output from the unit’s subwoofer output terminal. 2-1. Select the “S-W VOL”. 3-1. Press the [UP] or [DN] button to change the output volume. The factory default setting is “0”. (Setting range: +5 to –5) DXZ575USB “HPF” “FADER”...
  • Page 14 Making the frequency characteristics as flat as possible is called “Compensation”. Compensation of frequency characteristics The figure below shows the relationship between the center frequency, gain and Q curve. DXZ575USB Level (dB) Gain “DZE Center Frequency (F) Q curve...
  • Page 15 3-1. Press the [UP] button to emphasize the sound from the front speaker, press the [DN] button to emphasize the sound from the rear speaker. The factory default setting is “CENTER”. (Adjustment range: R12 to F12) “80Hz” “50Hz” “80Hz” DXZ575USB...

  • Page 16: Radio Operations

    [MENU] button for 1 second or longer. “MANU” is lit in the display and manual tuning is now available. 2. Tune into a station. DXZ575USB Quick tuning Push the [SEEK PANEL] leftward or rightward and hold in position for 1 second or longer to tune in a station.

  • Page 17: Preset Scan

    ] button for 2 In any mode, press the [ISR] button to turn on the radio function and tune the selected radio station. “ISR” appears in the display. Press the [ISR] button again to return to the previous mode. DXZ575USB...

  • Page 18: Cd/Mp3/Wma/Aac Operations

    - AAC files encoded with iTunes. - iTunes Ver. 7.0 or earlier. - File extension “.m4a” (“.M4A”) DXZ575USB • Tracks purchased at an iTunes Music store, and copyright-protected files cannot be played. • When playing AAC files that include image data, additional time may be required before playback begins.
  • Page 19 Listening to a disc already loaded in the unit Press the [SRC] button to select the CD/MP3/ WMA/AAC mode. When the unit enters the CD/MP3/WMA/AAC mode, play starts automatically. If there is no disc loaded, the indication “NO DISC” appears in the title display. DXZ575USB...

  • Page 20: Selecting A Track

    ] button to pause play. “PAUSE” appears in the display. 2. To resume CD play, press the [ button again. DXZ575USB Displaying CD titles This unit can display title data for CD-text/MP3/ WMA/AAC disc and user titles input with this unit.

  • Page 21: Folder Select

    2. To select a track, push the [SEEK PANEL] leftward or rightward. Top function The top function resets the CD player to the first track of the disc. Press and hold the [MENU] button for 1 second or longer to play the first track (track No.
  • Page 22 “ALL SCN” appears in the display. Folder scan play starts from the next folder after the folder currently being played. DXZ575USB Repeat play This function allows you to play the current track repeatedly. 2. Push the [SEEK PANEL] leftward or rightward to select “RPT”.

  • Page 23: Operations Common To Each Mode

    Then press and hold the store the message and the message return to the default setting. “ON ”. ] button. Numbers Symbols ] button for 2 button for 2 seconds or longer to DXZ575USB ”...
  • Page 24 “ON” or “OFF”. • ON: Use with connected AMP. • OFF: Use with inside AMP. DXZ575USB Setting the car speaker output for the cellular phone When the AUX input cable is used to connect a AUX BLUETOOTH BB (BLT370) (sold separately).

  • Page 25: Entering Titles

    All characters in the title disappear. 6. Press and hold the [ seconds or longer to store the setting. 30 titles 50 titles 20 titles 100 titles Numbers Symbols ] button for 2 ] button. ] button for 2 DXZ575USB...

  • Page 26: Operations Of Accessories

    MP3/WMA/AAC files. For details, see the section “MP3/WMA/AAC” (page 16). Copy-protected WMA/AAC files cannot be played on this unit. DXZ575USB • To prevent the accidental loss of data, always back up important data on your computer. • This unit does not support connections to a computer.

  • Page 27: To Stop Play

    USB mode is selected, since it may result in loss or damage to data on the USB memory device. Always backup and save important data on your computer. 2. Remove the USB memory device from the USB slot. DXZ575USB...

  • Page 28: Ipod Bb Operations

    CD mode: Track selection: [SEEK PANEL] Fast-forward/fast-backward: [SEEK PANEL] Pause: [ See “CD/MP3/WMA/AAC Operations” (page 16- 20) for details. DXZ575USB Other various play functions (in Play mode) Notes: • These functions are not supported when in the iPod menu mode.
  • Page 29 This unit supports the display of title information transmitted from a connected iPod. • Character code information is UTF-8; displayable characters include English alphanumerics, some symbols, and some umlaut characters. • Unsupported characters will be replaced by asterisks (*). “ALBUMS” DXZ575USB...

  • Page 30: Satellite Radio Operations

    • A channel not covered by your contract: XM: “UPDATING”, SIRIUS: “CALL 888” “539-SIRI” (alternated) • When your contract is expired: “SUB UPDATE” DXZ575USB Confirming your SIRIUS ID 1. Press the [OPTION] button. 2. Push the [SEEK PANEL] leftward or rightward to select “SID DISP”.

  • Page 31: Scan Function

    10 seconds. 1. Press the [OPTION] button. ] button for 2 2. Push the [SEEK PANEL] leftward or rightward to select “PRESET SCN”. 3. Press the [ ] button. ] button. DXZ575USB...

  • Page 32: Cd Changer Operations

    This unit can display title data for CD-text CDs and user titles input with this unit. 1. Press the [D] button to change the title display. DXZ575USB Procedure to scroll a title Set “AUTO SCR” to “ON” or “OFF”. (The factory default setting is “ON”. Refer to the subsection “Setting the method for title scroll”...

  • Page 33: Dvd Changer Operations

    • The following operations are the same as for CD and CD Changer modes: Pause Track selection Fast-forward/fast-backward Scan play Repeat play Random play See “CD/MP3/WMA/AAC Operations” (page 16- 20) and “CD Changer Operations” (page 30-31) for details. ] button to cancel the DXZ575USB...

  • Page 34: Tv Operations

    [OPTION] button. 5. Press the [ ] button to return to the TV mode. DXZ575USB Setting the TV diver You can change the reception setting for the TV antenna connected to the TV tuner. 1. Press the [OPTION] button to switch to the adjustment selection display.

  • Page 35: In Case Of Difficulty

    Replace with a compact disc with no scratches. Use MP3/WMA/AAC files encoded properly. Let dry for about 1 hour with the power on. Use ISO9660 level 1, 2 or JOLIET or Romeo or APPLE ISO file system. Measure Reset button DXZ575USB...
  • Page 36 The USB memory devices memory device. has been inserted improperly. The USB connector is broken. DXZ575USB Cause Record MP3/WMA/AAC files properly to the USB memory device. Use only properly encoded MP3/WMA/AAC files. See page 16 for details on how to cancel DRM protection.

  • Page 37: Error Displays

    The unit’s mechanism may be damaged. Consult your dealer. Insert USB memory device containing audio files. Disconnect USB memory device, then hold [SRC] button depressed to turn power OFF. Then press [SRC] button once again to turn power ON. Measure DXZ575USB...

  • Page 38: Specifications

    Treble Control Action (10 kHz): +12 dB, –12 dB Line Output Level (CD 1 kHz): 5.7 V Note: • Specifications and design are subject to change without notice for further improvement. DXZ575USB General Power Supply Voltage: 14.4 V DC (10.8 to 15.6 V allowable), negative...
  • Page 39 Clarion Co., Ltd. PE-2902B All Rights Reserved. Copyright © 2006: Clarion Co., Ltd. 2006/12 280-8460-00 Printed in China / Imprimé en Chine / Impreso en China...
