Icom AH-710 Instructions

FOLDED DIPOLE ANTENNA
AH-710
■ Important
SAVE THIS INSTRUCTION— This instruction
contains installation instructions for the antenna.
■ Explicit definitions
WORD
R DANGER
Personal death, serious injury or an
explosion may occur.
R WARNING Personal injury, fire hazard or
electric shock may occur.
NOTE
Recommended for optimum use. No
risk of personal injury, fire or electric
shock.
■ Precautions
Be sure to consult an expert engineer for installation
help. Icom is not responsible for any building
breakage, damage resulting from a drop of the parts
from a high place or unstable site, personal injury, or
accident in any other case.
R DANGER! NEVER perform installation work at
heights without sufficient scaffolding. This could cause
falling and serious injury or death.
R WARNING! NEVER perform installation work
during a lightning storm. It may result in an electric
shock or burn.
R WARNING HIGH RF VOLTAGE! NEVER touch an
antenna or antenna connector while transmitting. This
could cause an electrical shock or burn. Install the
antenna in a position where no one can touch it.
Icom and the Icom logo are registered trademarks of Icom
Incorporated (Japan) in Japan, the United States, the United
Kingdom, Germany, France, Spain, Russia, Australia, New Zealand,
and/or other countries.
All other products or brands are registered trademarks or
trademarks of their respective holders.
INSTRUCTIONS
DEFINITION
Thank you for choosing this Icom product.
READ ALL INSTRUCTIONS carefully and completely
before using this product.

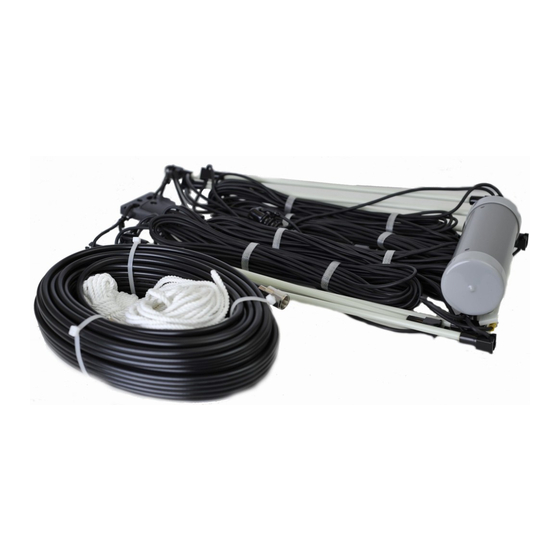

■ Supplied accessories
• Antenna element ...................................................1
• Coaxial cable (5D2V, 30 m, 98.4 ft) .......................1
• Support wire for mobile operation
(10 m, 32.8 ft). .......................................................2
• Rubber vulcanizing tape (30 cm, 1 ft) ....................1
■ Specifications
• Frequency range : 1.9 ~ 30 MHz
• Power rating : 150 W
• Input impedance : 50 Ω
• VSWR (typical) : Less than 2 : 1 (1.9 ~ 18 MHz)
Less than 2.5 : 1 (18 ~ 30 MHz)
• Length : 24.5 m, 80.4 ft
• Coaxial feed line : 30 m, 98.4 ft
with PL-259 plug
L At lower frequencies, the antenna SWR becomes
approximately 20% higher when the antenna height
difference from other structures is less than 1/2λ.
L All stated specifications are typical and subject to change
without notice or obligation.
Icom is not responsible for the destruction, damage to, or
performance of any Icom or non-Icom equipment, if the
malfunction is because of:
• Force majeure, including, but not limited to, fires,
earthquakes, storms, floods, lightning, other natural
disasters, disturbances, riots, war, or radioactive
contamination.
• The use of Icom antennas with any equipment that is
not manufactured or approved by Icom.
