Summary of Contents for NBB SR8298

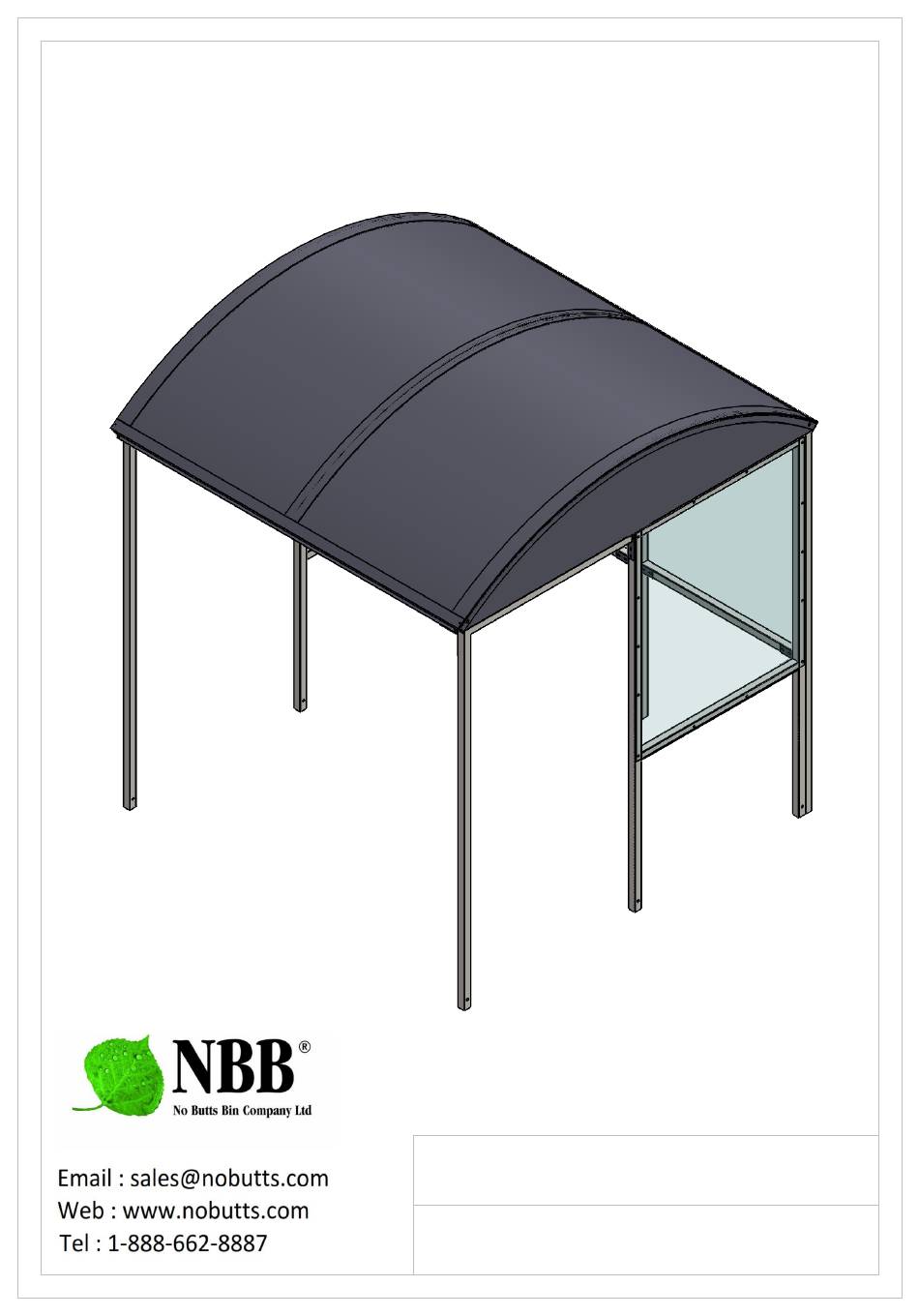

- Page 1 Assembly Instructions Shelter Type: SR8298 SR8298-01-28102021-USA...
-
Page 2: Exploded View
EXPLODED VIEW... -
Page 3: Parts List
PARTS LIST PART ITEM Size (inch) IMAGE DESCRIPTION QTY. 78.74 x 40.74 Full Frame 4.3 x 4.3 x 1.57 Corner Bracket - CB1 4.33 x 1.57 Joint Flat - JF1 78.74 x 40.74 Post Frame - P1 81.1 x 1.57 x Roof Tie 1.57 4.3 x 1.6 x 2... - Page 4 FIXINGS Fittings Bolt set M10 BTANCM12100 1.5" M10/12 x 100 mm 1" Tech Black M10 x 60mm Washer Tech screw Caps Concrete Bolt screw Pack A+B Image Tools required: Drill/Screwdriver 17mm Wrench Mallet T25 Torx bit...
- Page 5 Step 1 Assemble S1 frames to make up the main structure using CB1 brackets for the corners and JF1 brackets for the straight joints. Attach P1 post to the S1C Frame using CB1 and JF1 brackets. Brackets as shown below. Please note 1.5"...
- Page 6 Step 2 Attach DR2R rafters using DR brackets. Secure the END PANELS (DR2I) to frames using tec screws. The end rafters need to be placed in position at the same time as the DR2I DR2R DR2R DR2I DR2R DR2R DR BRACKET RAFTER PLACEMENT 40.75 40.75...
- Page 7 Step 3 Attach the DR2PO to the top of the rafters. Seal the gap between the panels using the DR2T strips. Then attach the DRAT2 Trim parts to the lower part of the rafters as shown below. DR2T DR2T DR2T DR2PO DR2PO DRAT2...
- Page 8 Step 4 Move the shelter into its desired position and attach the foot brackets FT1/FT3 before fiixng in place. FT3 x3 FT1 x4...
- Page 9 PLAN VIEW OVERALL DIMENSIONS AND GROUND FIXING POSITIONS Suggested size for concrete base: 8" oversized on all 4 sides. 41.12 39.17 40.75...
-
Page 10: Maintenance
THANK YOU FOR PURCHASING THIS PRODUCT MAINTENANCE: To ensure your products give you many years of use we recommend that you: • Clean panels regularly with soapy water • Ensure all fittings are tight (for example after a big storm) •...
