NBB SR8297 Assembly Instructions Manual

Hide thumbs

Advertisement

Table of Contents

Assembly Instructions
Shelter Type: SR8297
SR8297-01-07022022-USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SR8297 and is the answer not in the manual?

Questions and answers

Related Manuals for NBB SR8297

Summary of Contents for NBB SR8297

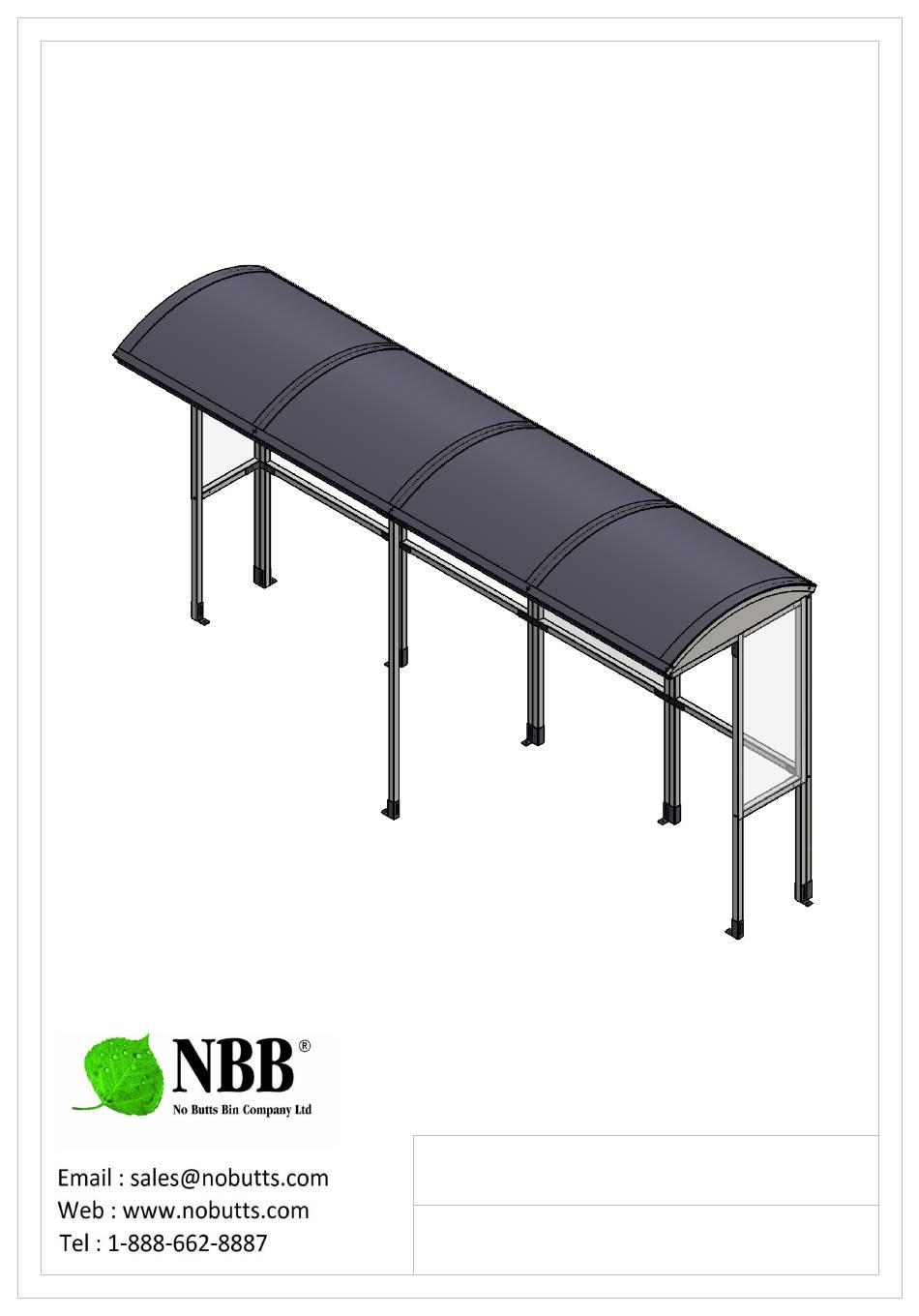

  • Page 1 Assembly Instructions Shelter Type: SR8297 SR8297-01-07022022-USA...

  • Page 2: Exploded View

    EXPLODED VIEW...

  • Page 3: Parts List

    PARTS LIST ITEM PART Size (inch) IMAGE DESCRIPTION QTY. 78.74 x 40.74 Frame 78.74 x 20.3 Frame 4.3 x 4.3 x 1.6 Corner Bracket 8.7 x 1.6 Straight Bracket ST15 20.15 x 1.57 x 1.57 ST15 ROOF TIE BAR 81.1 x 1.57 x 1.57 Roof Tie 77.15 x 1.57 x 1.57 P5 POST...
  • Page 4 FIXINGS Fittings Bolt set M10 BTANCM12100 1.5" M10/12 x 100 mm 1" Tech Black M10 x 60mm Washer Tech screw Caps Concrete Bolt screw Pack A+B Image Tools required: Drill/Screwdriver 17mm Wrench Mallet T25 Torx bit...
  • Page 5 Step 1 Assemble S1 and S3 frames to make up the main structure using CB1 brackets for the corners and JF1 brackets for the straight joints. Attach ST15 tie bars, the ST3 Tie bars and the P5 post using CB1, JF1 and JFT brackets as shown below.
  • Page 6 Step 2 Attach DR1R rafters using DR brackets. Secure the END PANELS (DR1I) to frames using tech screws. The end rafters need to be placed in position at the same time as the DR1I. DR BRACKET DR1R DR1R DR1I DR1R DR1R DR1I DR1R...
  • Page 7 Step 3 Align the DR1PO and DR1PI on the rafters with the DR1PO on either end and the DR1PI in the centre. Seal the gap between the panels using the DR1T strips. Then attach the DRATO and DRATI parts to the lower part of the rafters as shown below.
  • Page 8 Step 4 Move the shelter into its desired position and attach the foot brackets FT1/FT3 before fixng it to the ground using the concrete bolts. FT1 x3 FT3 x5...
  • Page 9 PLAN VIEW OVERALL DIMENSIONS AND GROUND FIXING POSITIONS Suggested size for concrete base: 8" oversized on all 4 sides. 42.78 20.35 22.42...

  • Page 10: Maintenance

    THANK YOU FOR PURCHASING THIS PRODUCT MAINTENANCE: To ensure your products give you many years of use we recommend that you: • Clean panels regularly with soapy water • Ensure all fittings are tight (for example after a big storm) •...
